Summary

This document provides a quick start guide as well as detailed instructions on how to setup and use a VILT Minium Manager 2.0 system. Usage instructions for Minium Recorder, which is exclusive to Minium Manager customers, are also included.

Quick start

This chapter describes the quickest way to get a Minium Manager up and running. This is useful to try out Minium Manager and do not want to configure a production ready system.

1. Install and Run Minium Manager

To install and run Minium Manager:

Contact VILT and request the Minium Manager installation bundle.
Extract minium-manager.zip to a directory on a local machine.
Execute the script ./bin/start-minium-manager-all.(sh|bat)
Minium Manager is now available at port 8080. You can access it by requesting the following URL: .

http://localhost:8080/

2. Give it a try

To try it, access Minium Manager:

http://localhost:8080/

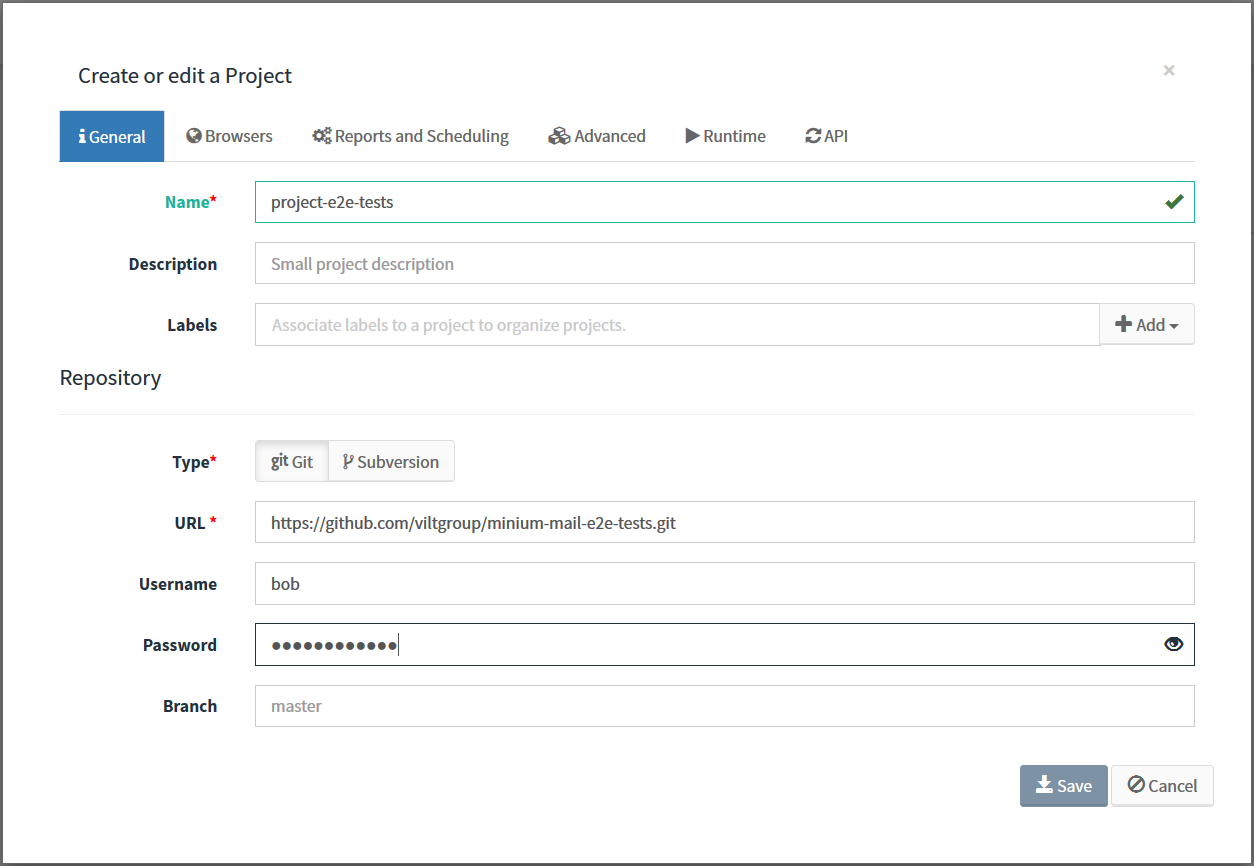

Fill the form:

Name

Project name

Description

Description of the project

Type SCM

Type of SCM repository

Repository Url

URL of the repository where the project with the features is stored. The following are examples of valid git URLs (or a local file path):

https://github.com/github/git.git

//dolos/repos/gmail-e2e-tests

Click Save to create the New Project.

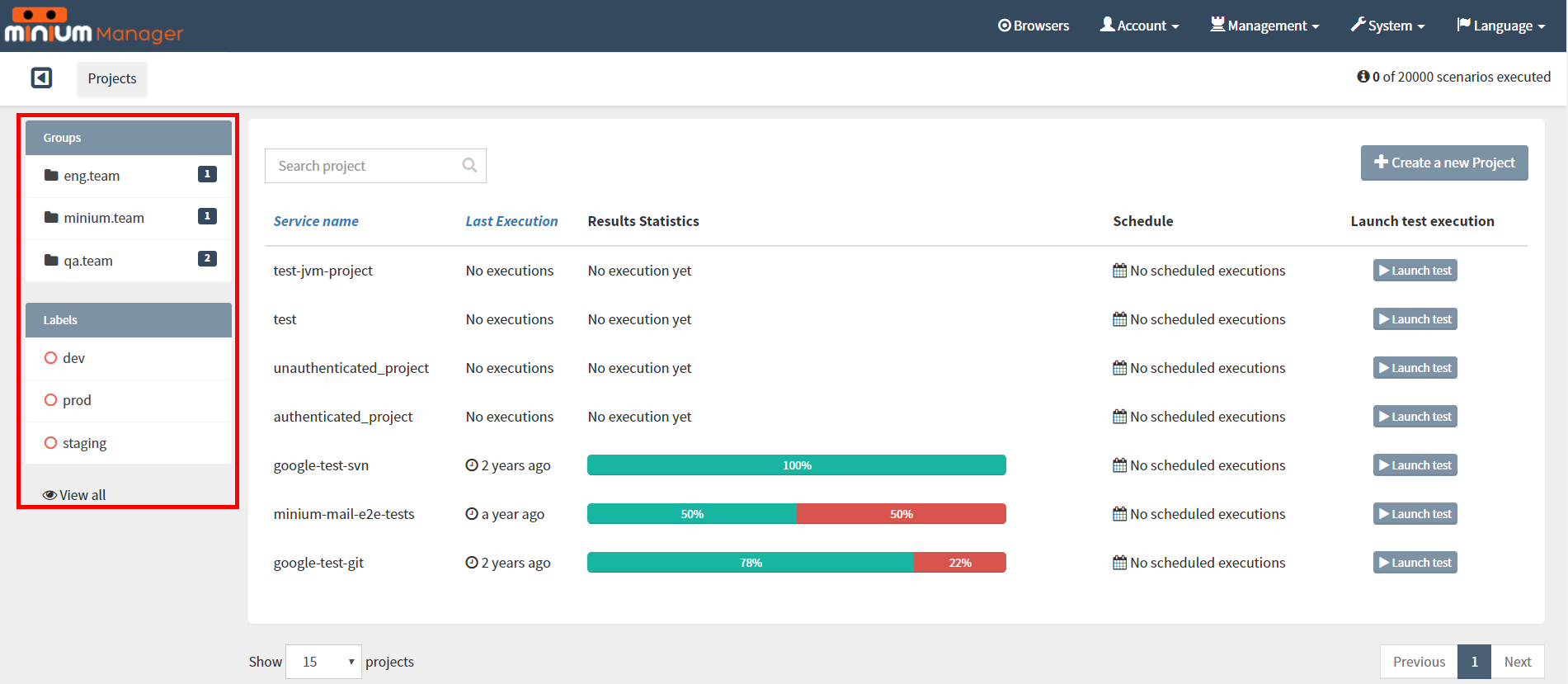

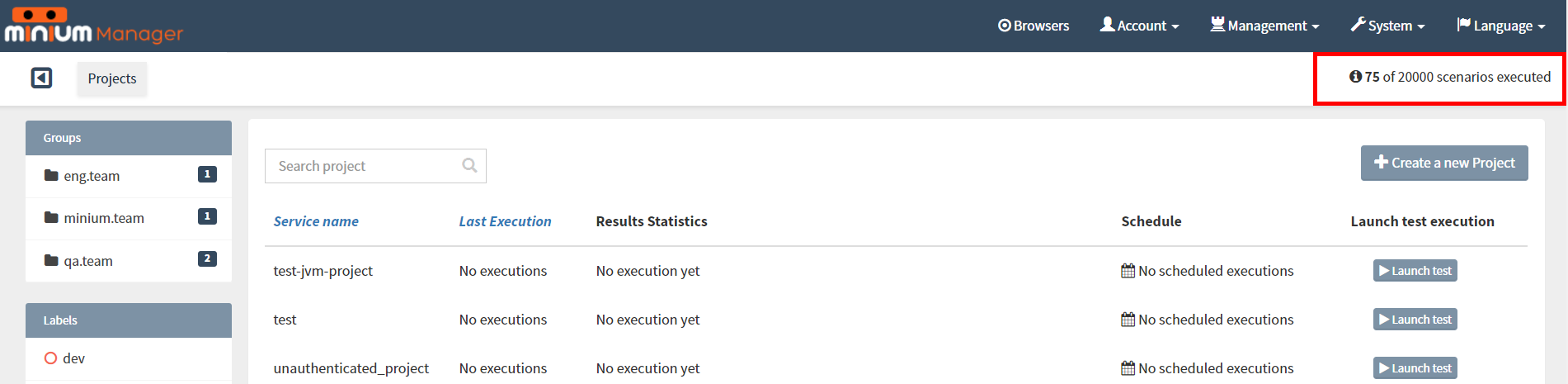

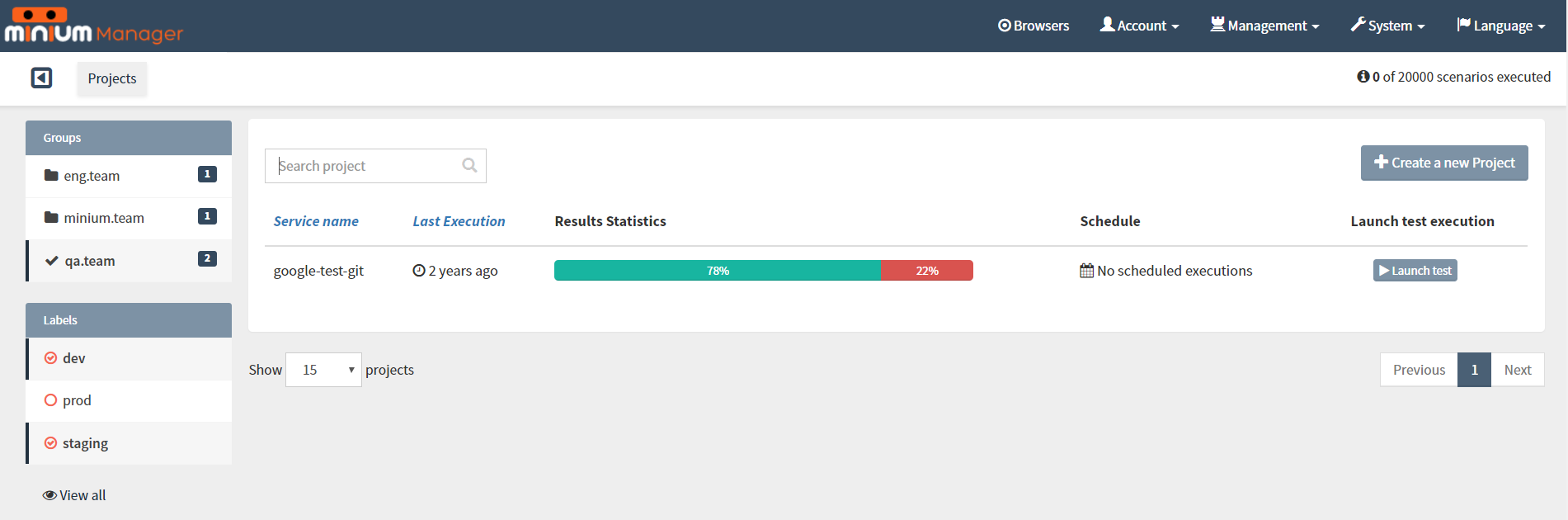

In the projects list, click on Launch test to launch test executions of the features and choose the browsers where you want to run the features:

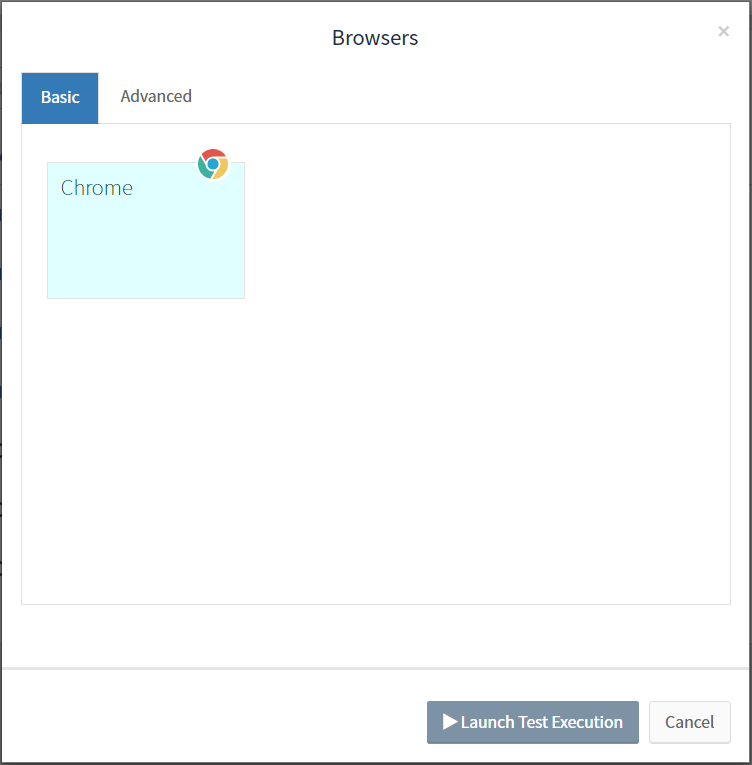

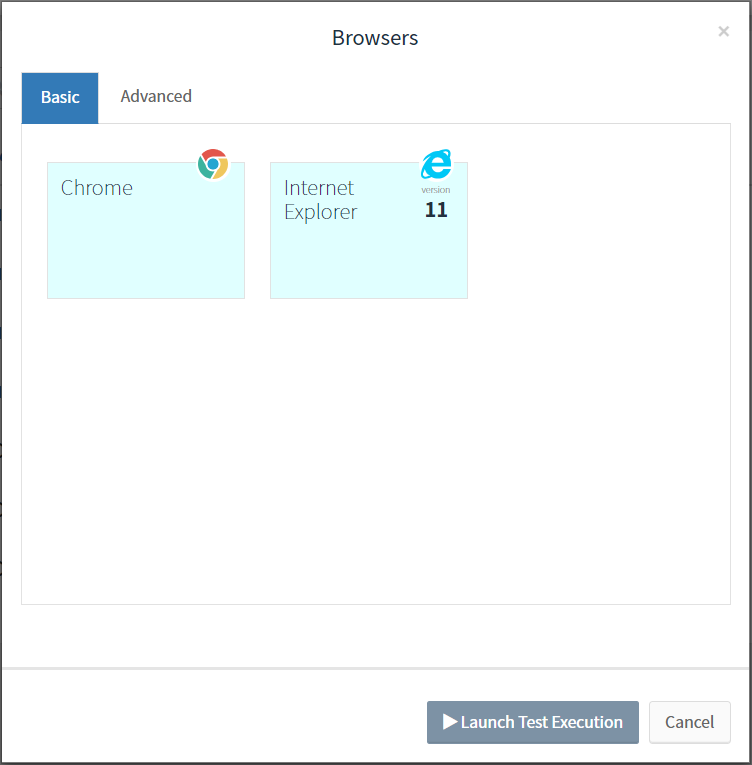

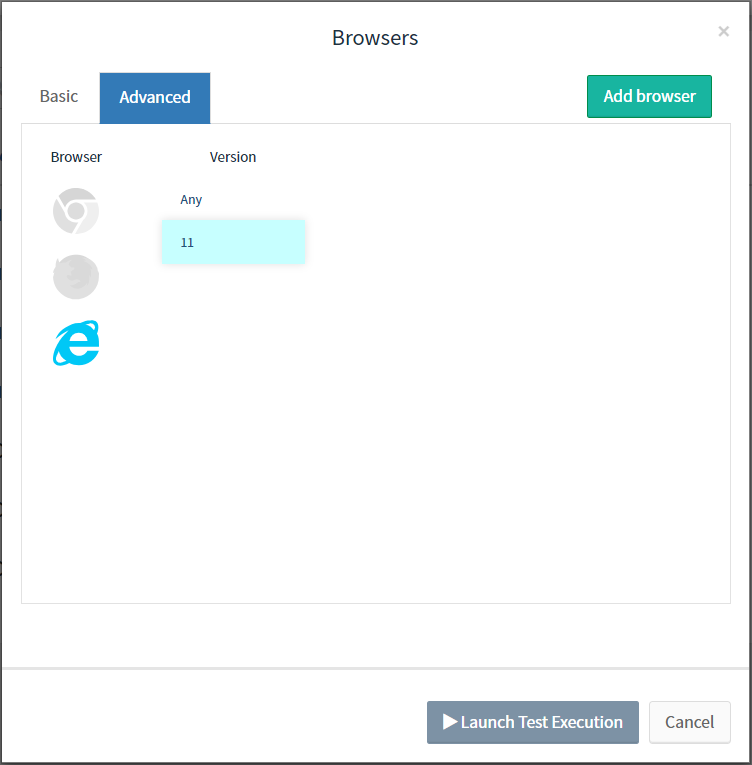

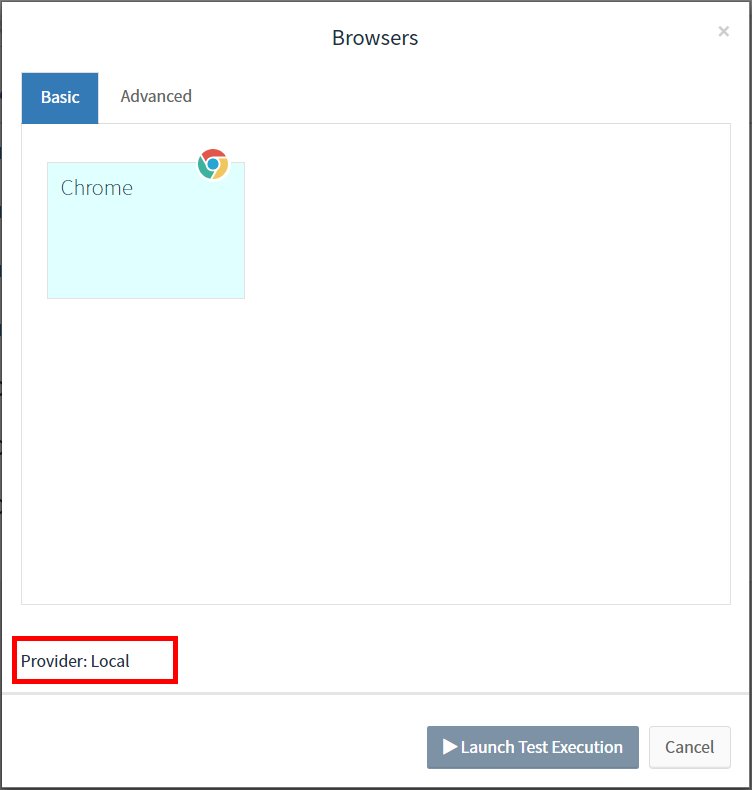

Choose an installed browser on the machine and click Launch Test Execution to Start the test.

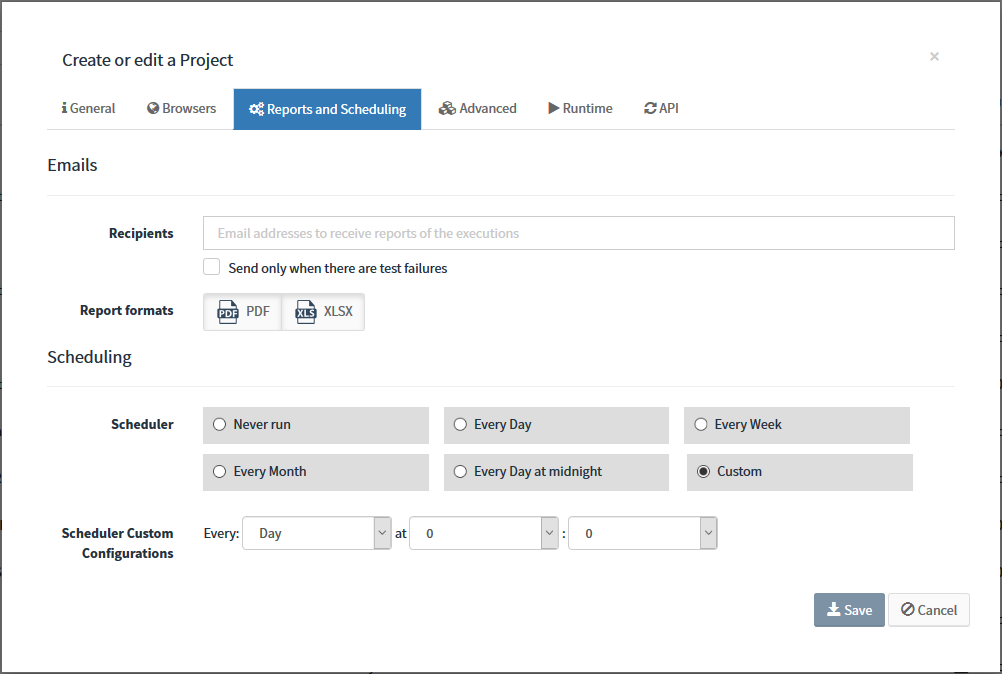

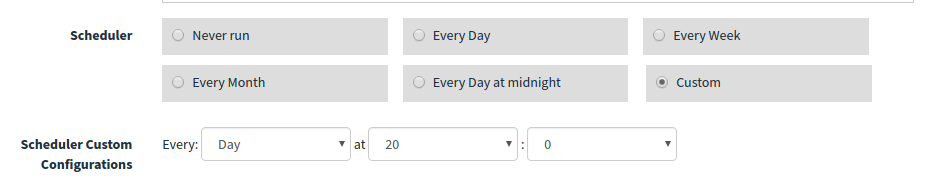

Schedule the test execution (it the project configuration):

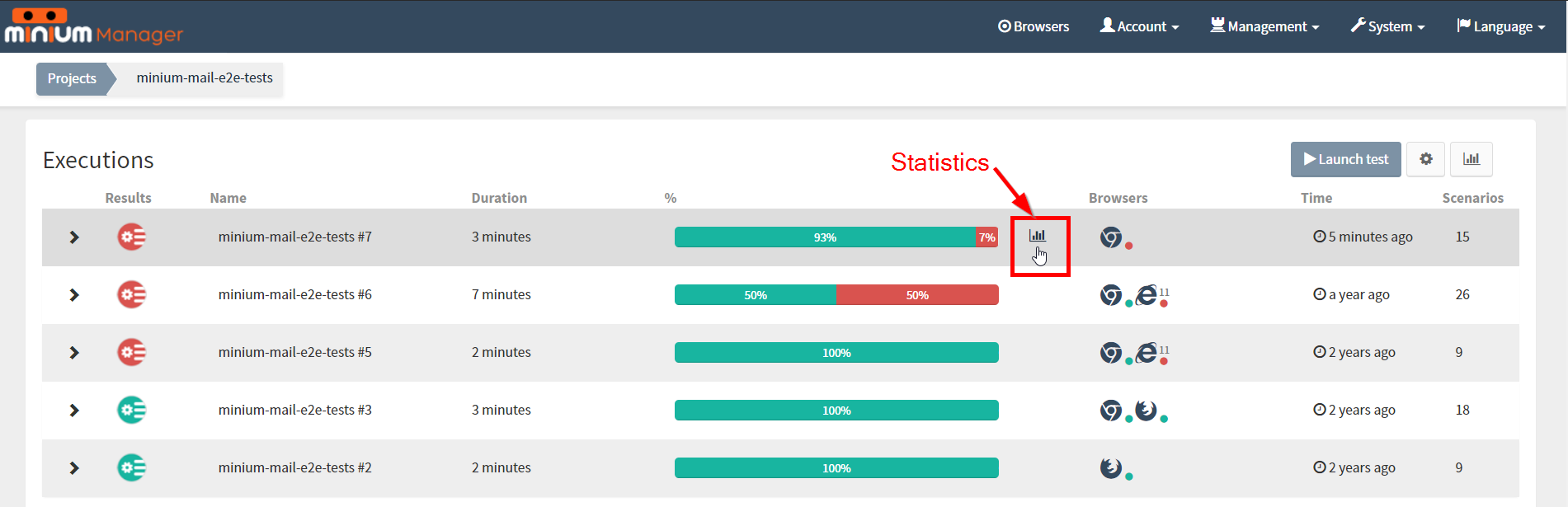

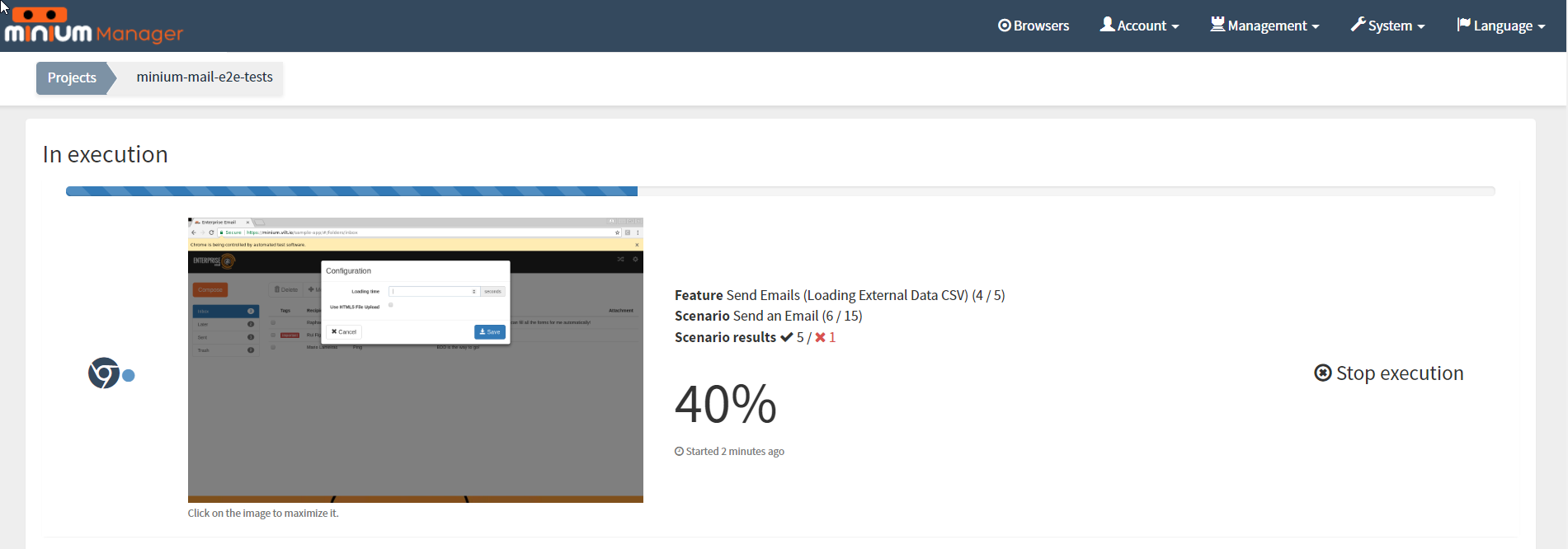

Click on the project name (from the projects list) to see the status of the all launched executions:

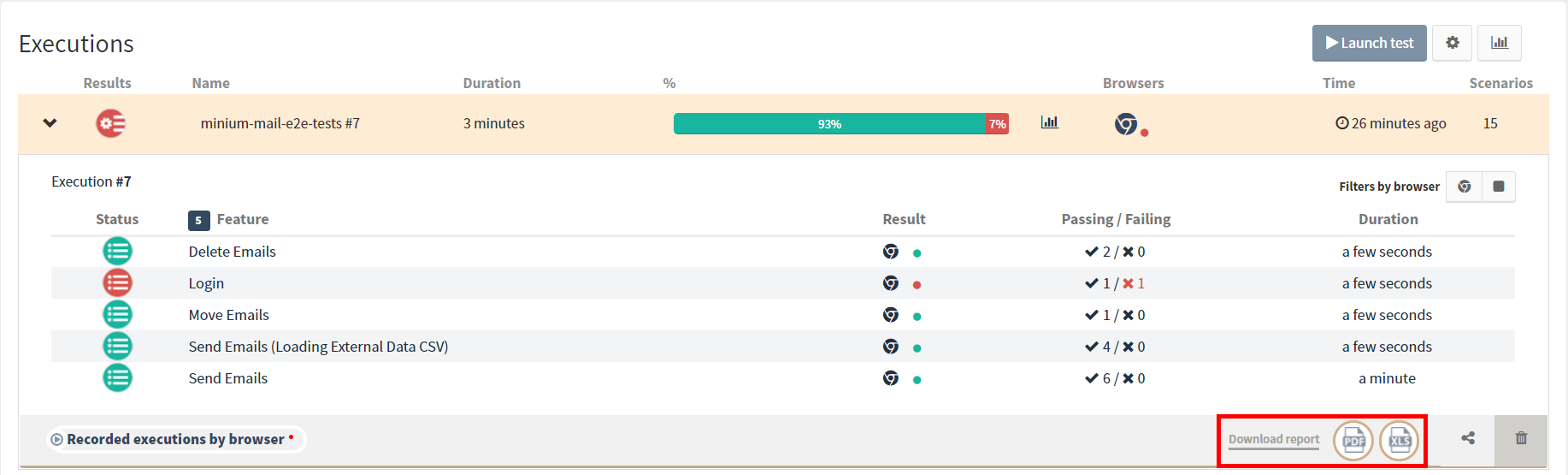

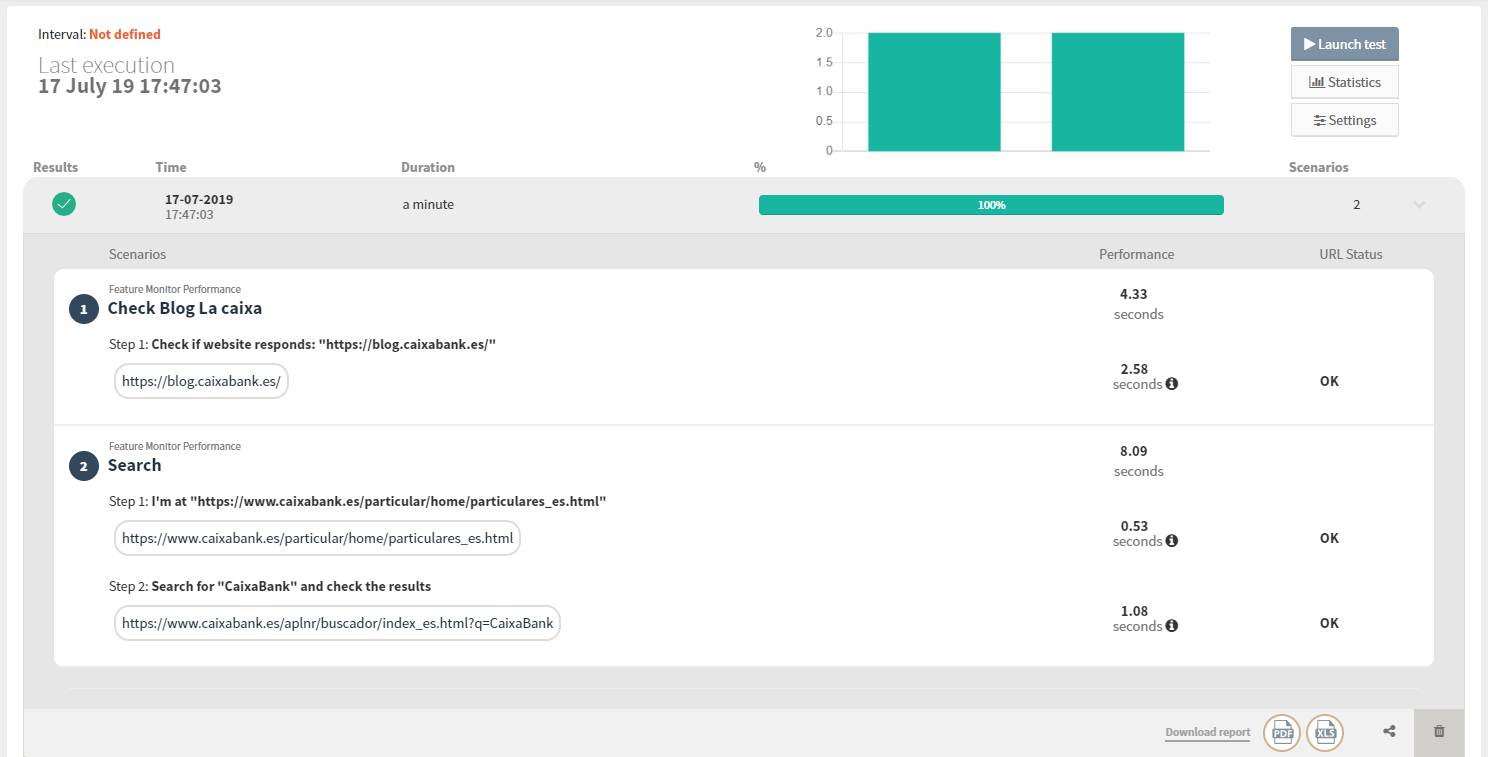

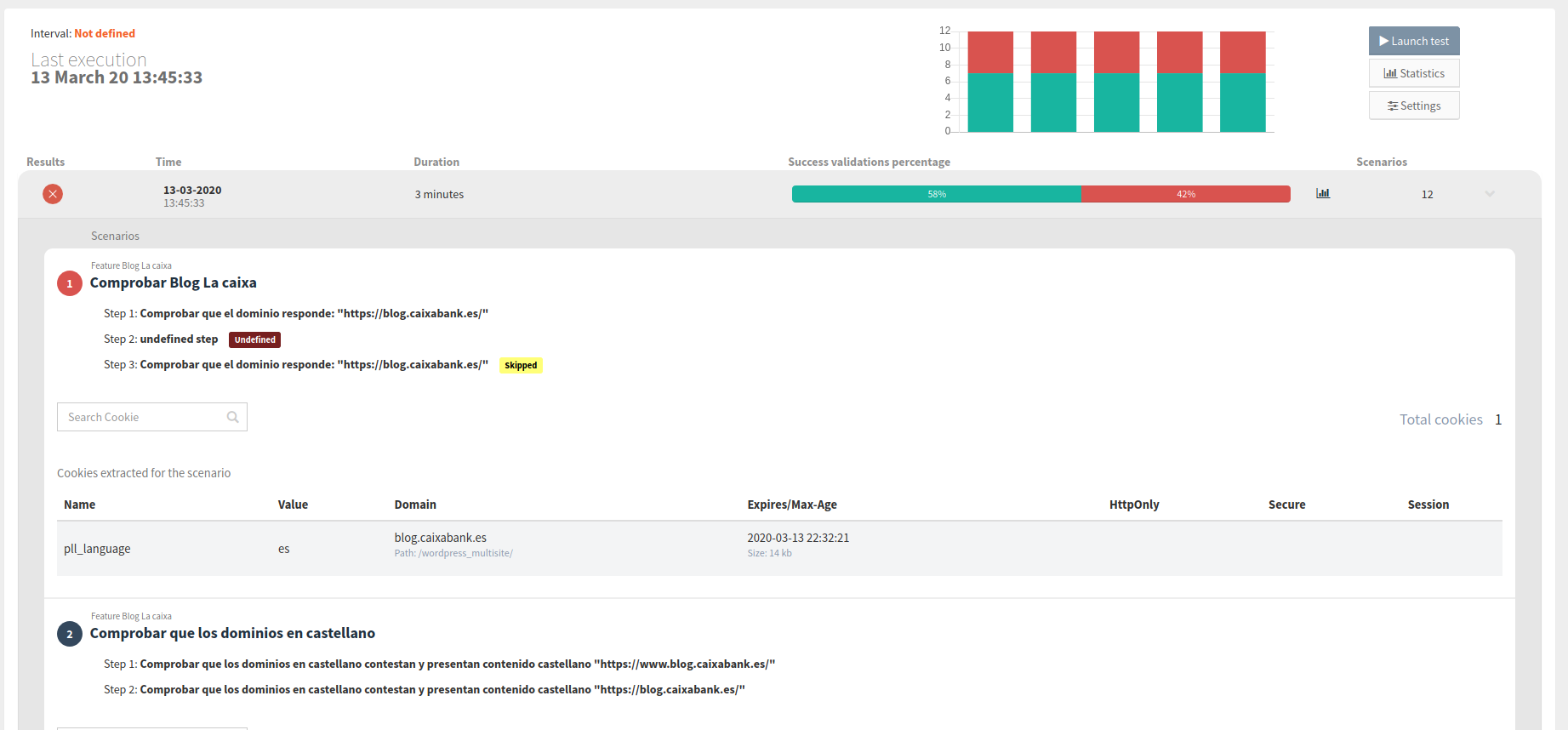

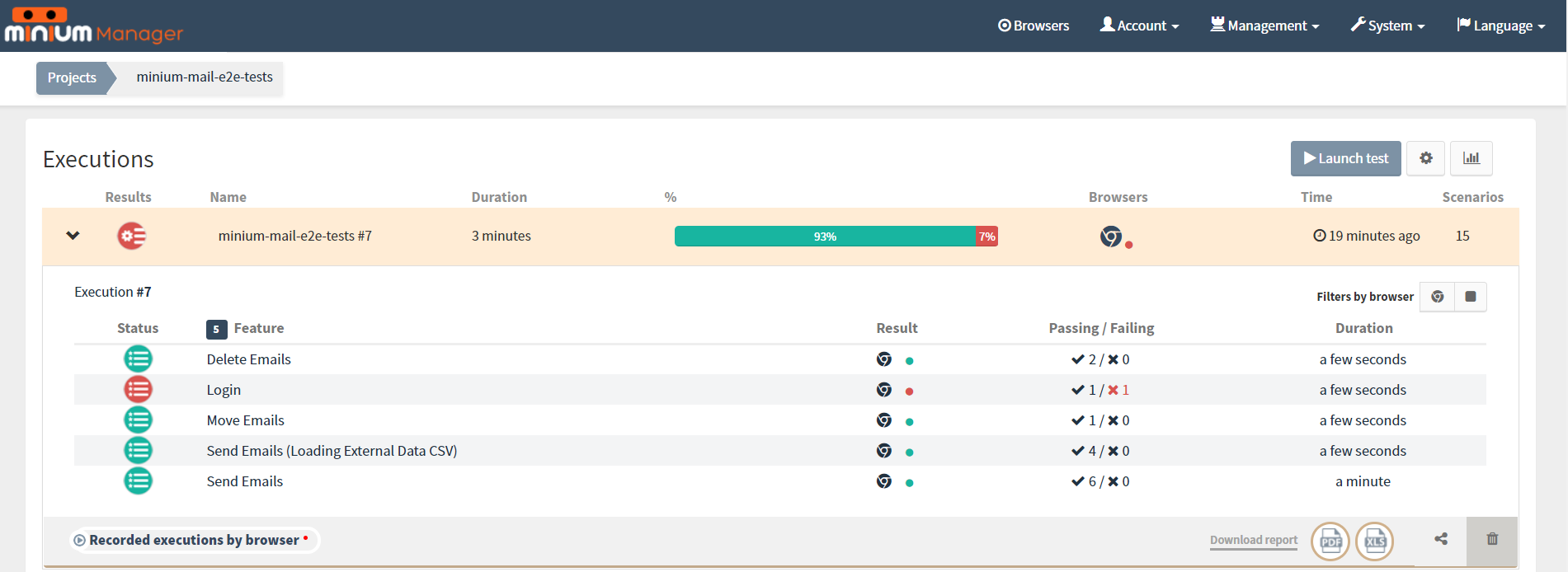

Click on the test execution to see the list of features executed and their results

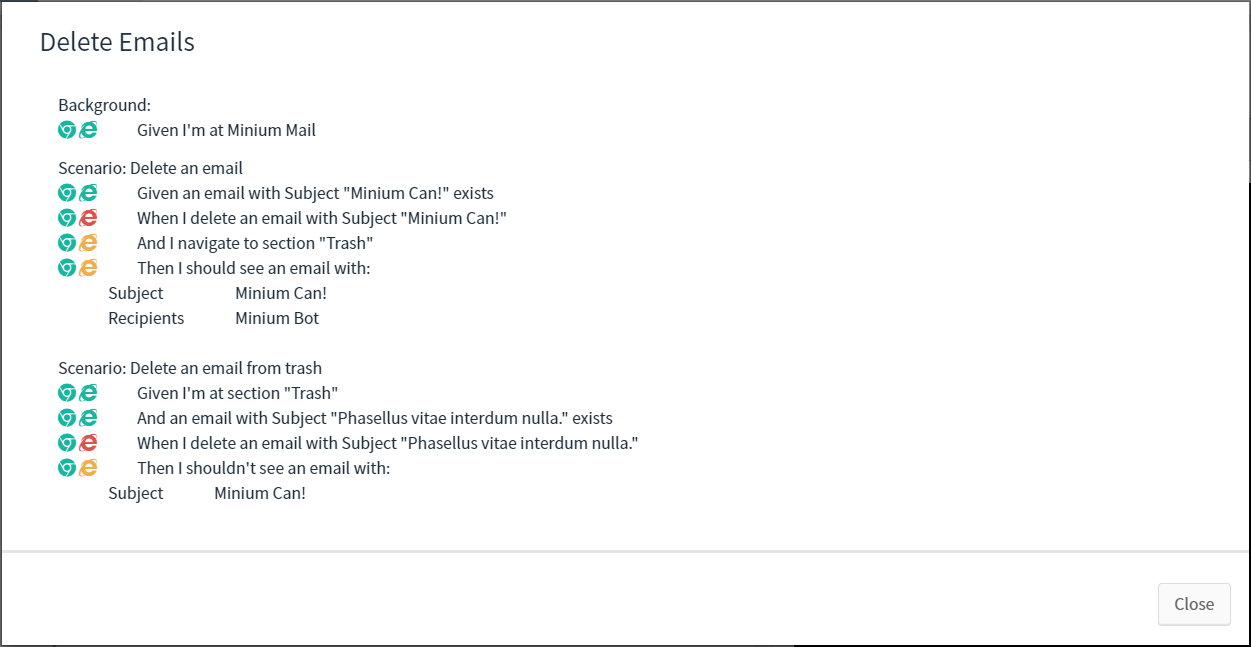

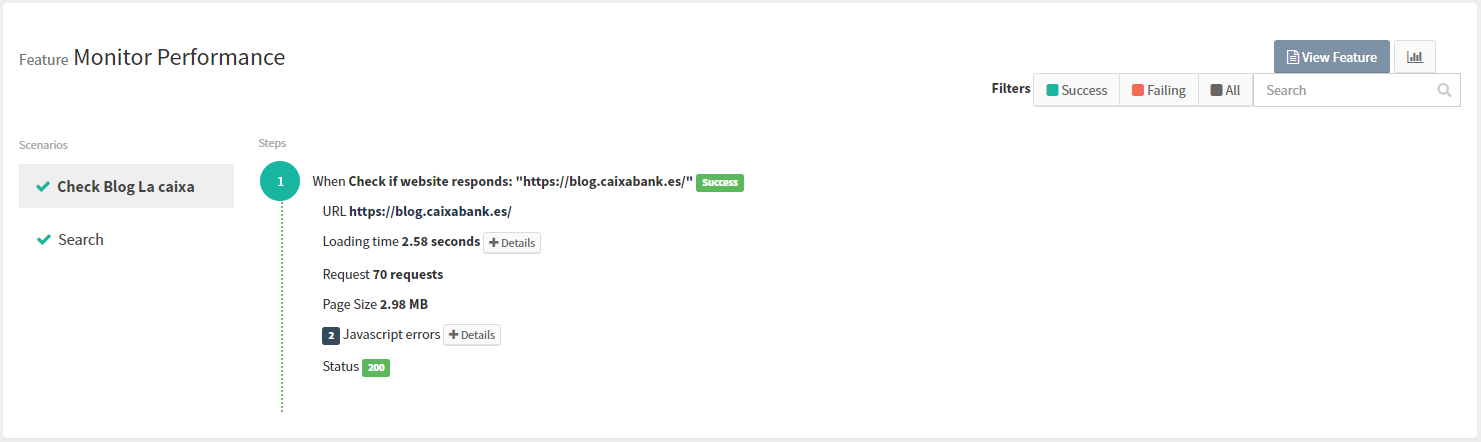

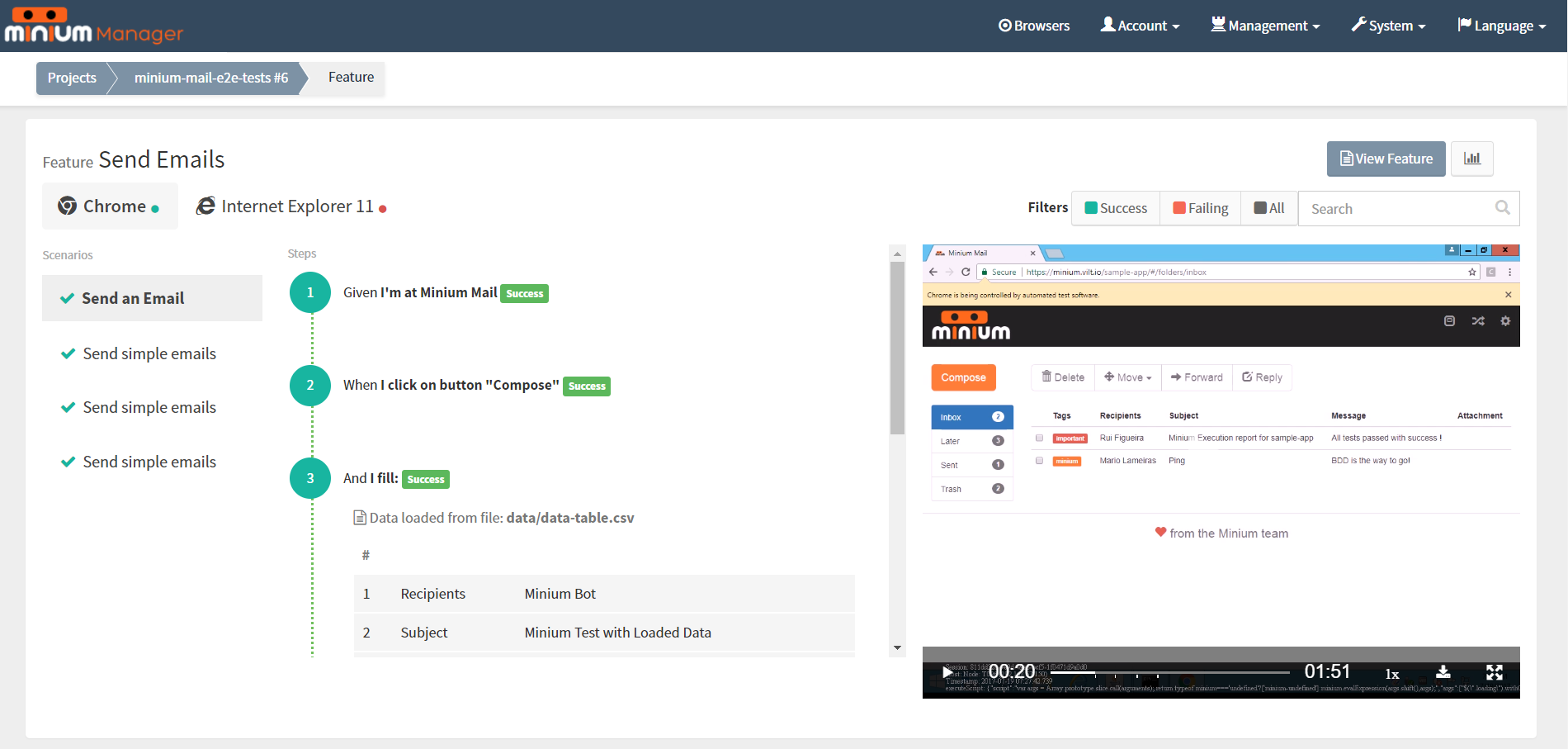

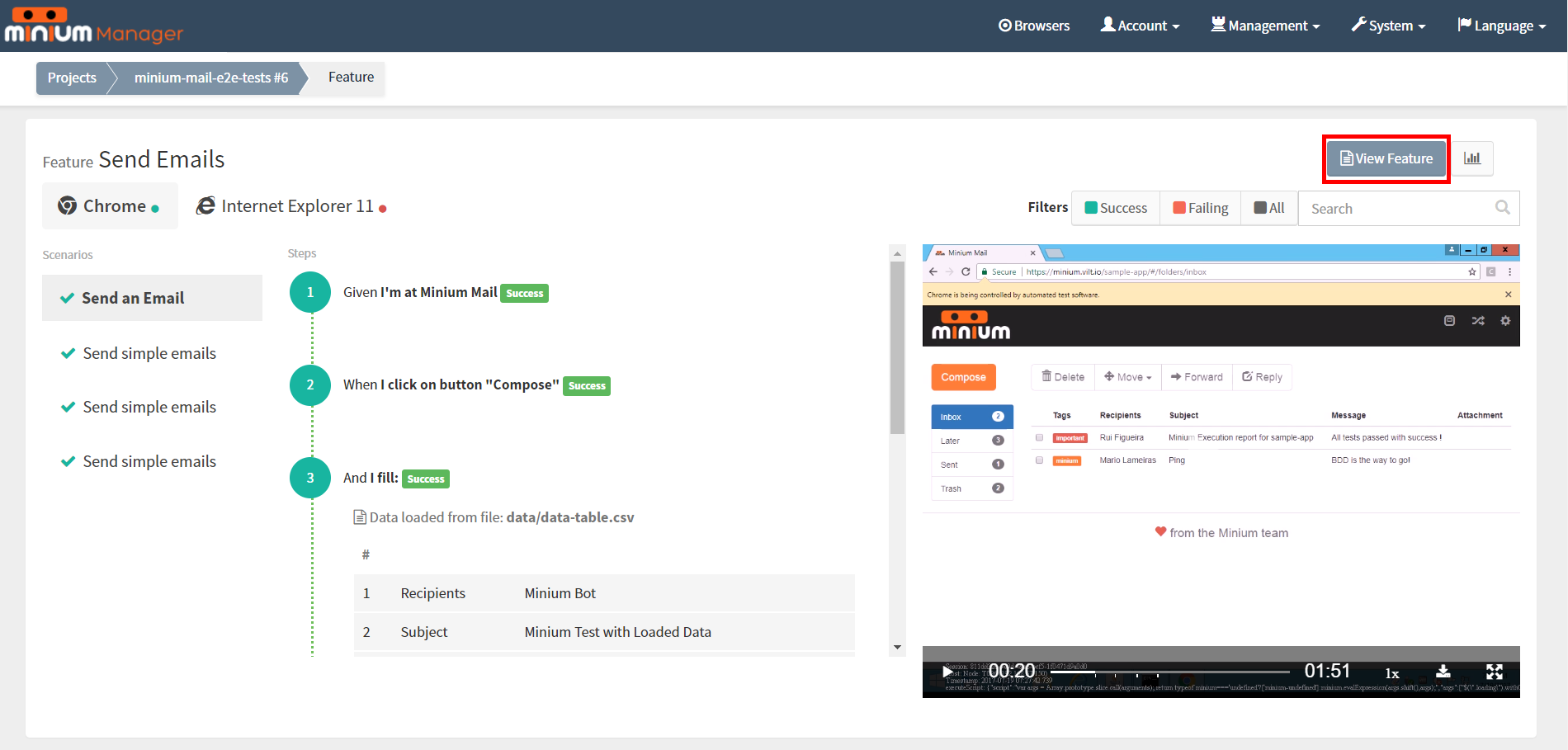

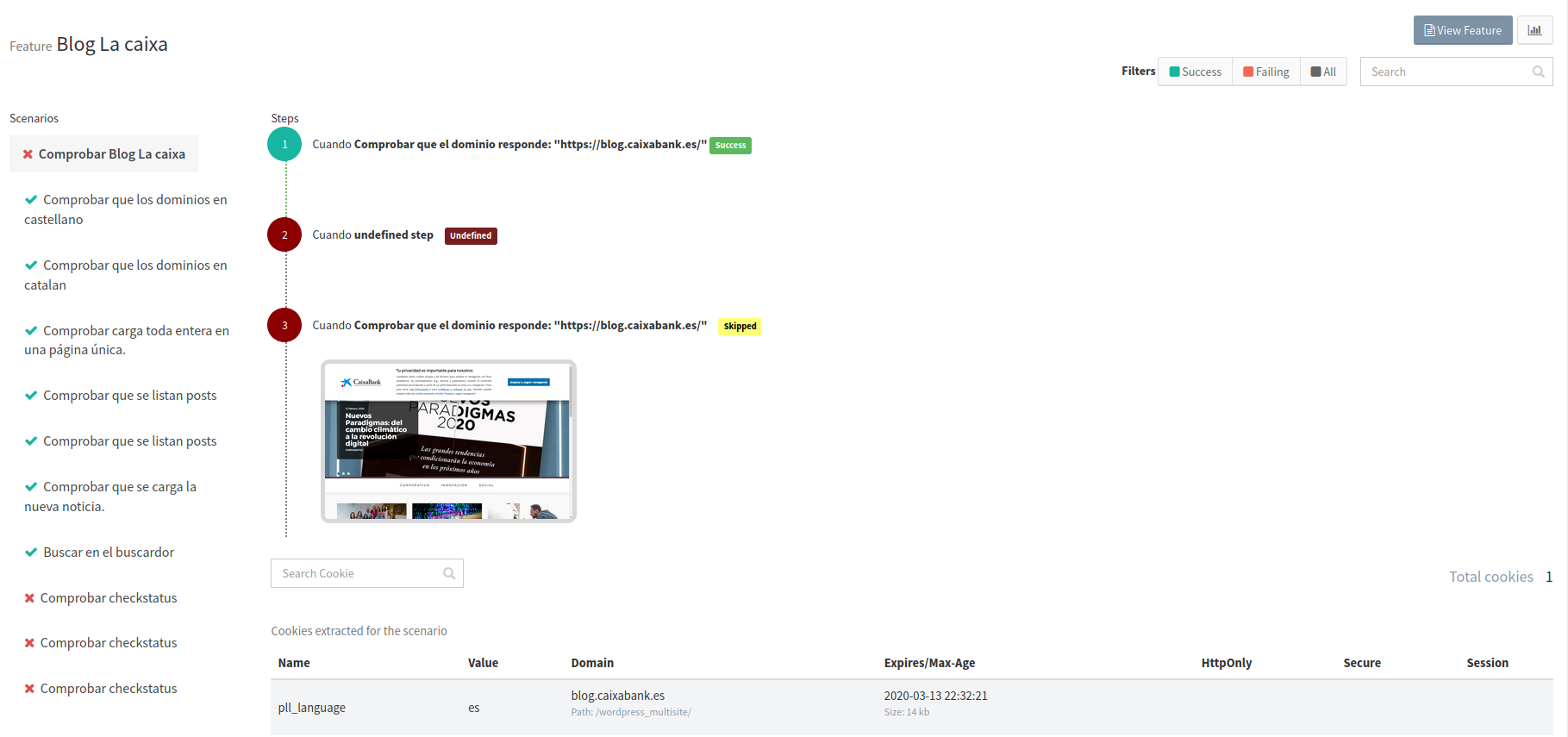

At the feature’s page, see the scenario of this particular feature. Collapse the scenario to see all the steps and their results.

Installation Guide

This chapter describes the installation and configuration of the Minium Manager.

3. Supported Environments and Compatibility

This chapter provides a reference to matrices of the Minium Manager components and configurations tested and validated.

3.1. OS

The following table shows Minium Manager OS support:

OS	Versions	Minium Manager
Linux	Ubuntu 16.04 LTS
MS Windows	Windows 7+

Versions

Minium Manager

Linux

Ubuntu 16.04 LTS

MS Windows

Windows 7+

3.2. Databases

The following table shows Minium Manager database support:

Database	Versions	Minium Manager
H2	—	—
MySQL	The minimum supported MySQL version is 5.6.33 Community Server 64 bits

Database

Versions

Minium Manager

—

MySQL

The minimum supported MySQL version is 5.6.33 Community Server 64 bits

3.3. Java

Minium Manager supports Java 1.8.

3.4. Selenium Grid

Minium Manager uses Selenium Grid Extras to run tests in parallel on multiple machines, and to manage different browser versions and browser configurations centrally.

The compatibility of Selenium Grid with OS are:

OS	Versions	Selenium Grid
Linux	Ubuntu 16.04 LTS
MS Windows	Windows 7+

Versions

Selenium Grid

Linux

Ubuntu 16.04 LTS

MS Windows

Windows 7+

About the web browsers (based on the last versions of the webdrivers), the Selenium Grid supports:

Browser	Versions	Selenium Grid
Firefox	The latest release, the previous release, the latest ESR release and the previous ESR release.
MS Internet Explorer	11
Chrome	Check the release notes to see which version of the webdriver is required to the chrome version installed.

Browser

Versions

Selenium Grid

Firefox

The latest release, the previous release, the latest ESR release and the previous ESR release.

MS Internet Explorer

Chrome

Check the release notes to see which version of the webdriver is required to the chrome version installed.

You can check (in more details) the supported platforms at https://selenium.dev/downloads/

3.4.1. Selenium Grid - WebDrivers

If you are running the Node in a 32-bit Linux distros machine, you cannot update your Google Chrome web browser to the latest versions (Google drop support for all 32-bit Linux distros in March, 2016). The last version of the Google Chrome for the 32-bit Linux distros is 48. So, to continue to perform tests with Google Chrome (version 48) in 32-bit Linux distros, you should use the version 2.21 of the chrome webdriver. For the 64-bit Linux distros, you can update the Google Chrome (64-bit) to the latest version and use the latest chrome webdriver.

About the Firefox, with the release of Firefox 47, the extension based version FirefoxDriver no longer works. If you are using Firefox 46 (or prior versions), you can continue to use the FirefoxDriver. For the Firefox 47, you need to update the Firefox to the latest version and start using use the MarionetteDriver. The other option is to downgrade your version of Firefox (preferably to the Firefox 45 ERS) and continue using the FirefoxDriver. But keep in mind that the FirefoxDriver will be discontinued.

For the Internet Explorer, it is required a MS Windows OS machine.

3.5. Application Servers

The following table shows which Application Servers you can use with Minium Manager system:

Application Server	Versions	Minium Manager
Apache Tomcat	8.x

Application Server

Versions

Minium Manager

Apache Tomcat

8.x

3.6. Supported Browsers

Minium Manager web application is supported by the following browsers:

Chrome
Firefox
IE 9+

4. Minium Manager

Minium Manager is a powerful console that provides useful reports of the ongoing projects and has a strong component in continuous integration.

4.1. Minium Manager Architecture

The following diagram shows the generic architecture of Minium Manager:

The main components of Minium Manager are Jenkins to continuous testing and Selenium Grid: one Hub (to monitor and manage the tests) and several Nodes (runs a browser to perform the tests).

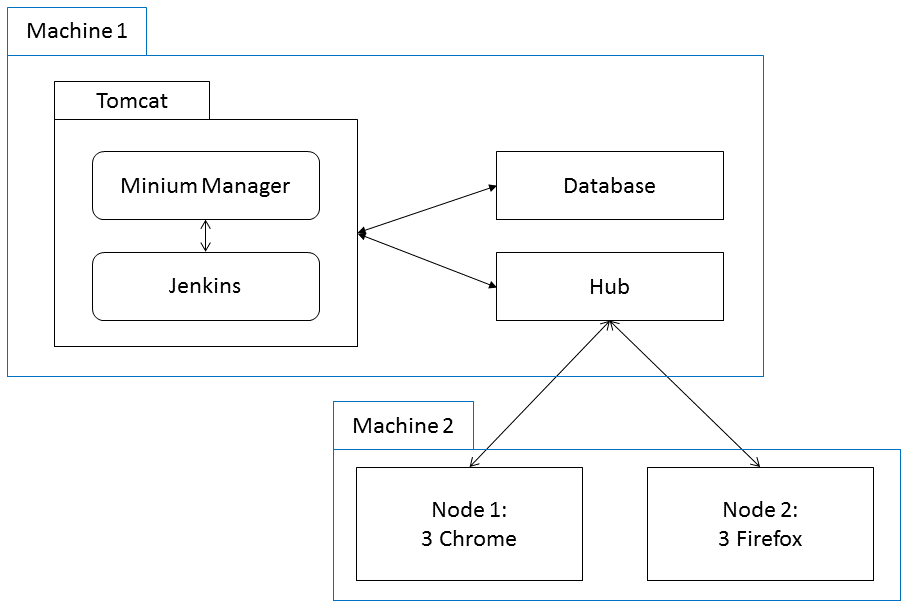

One of the standard installation for Minium Manager is:

This configuration have two machines:

Machine 1 with the Minium Manager, Jenkins and the Hub installed. This is the machine that will manage the tests.
Machine 2 with two Nodes. This is the machine that will perform the tests.

4.1.1. Machine 1

This machine runs Minium Manager with Jenkins that allows the user to create and launch the tests. The Hub will connect one or more nodes that tests will be delegated to.

To be able to create reports (result of the tests), connect to the SCM repositories and build the projects, it is required that this machine has installed the following software:

Java 8
Git and/or SVN

Note:

It is required to set the JAVA_HOME environment variable.

4.1.2. Machine 2

A node machine requires the installation of the following software:

Java 8
The browser(s) and its web drivers that the node will use to execute the tests (provided by the installation package)

In this configuration, it is only necessary to run the tests in Chrome and Firefox browsers.

The node machines are independent from the hub or the other nodes (concerning to OS or browser selection). A single machine can have multiple nodes running, but is recommended a node (running only single type of browser) per machine. A node on MS Windows OS might have the capability of offering Internet Explorer as a browser option, whereas this wouldn’t be possible on Linux or Mac.

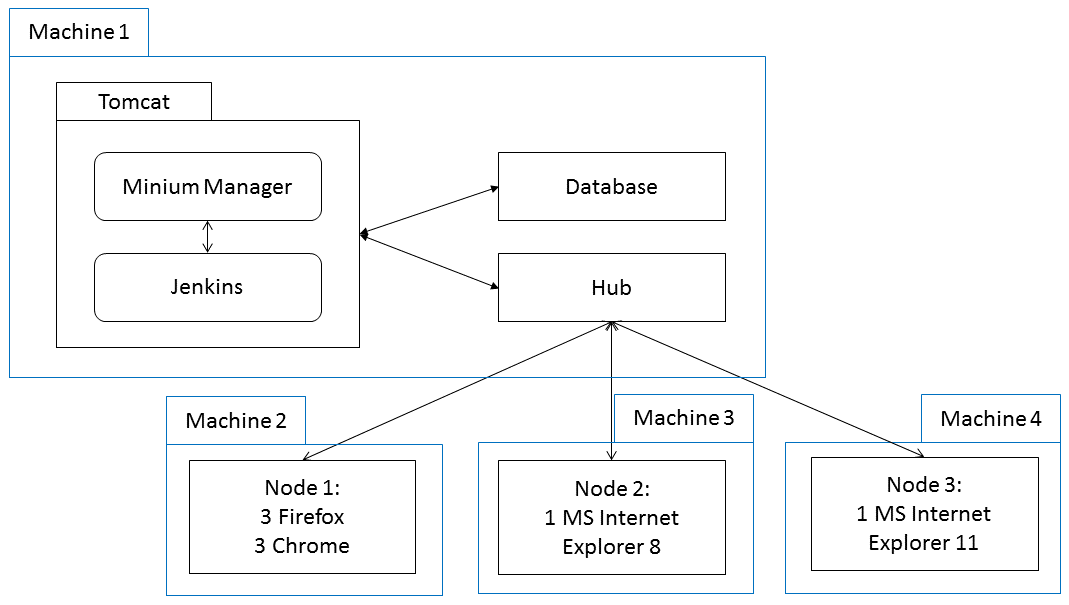

An alternative standard installation for Minium Manager is:

The main difference of this configuration to the first is how the Nodes are arranged. This configuration run a Node per machine (Machine 2, Machine 3 and Machine 4). The Machine 3 and Machine 4 was MS Windows OS. This installation will run the tests in parallel.

Alternatively, run the Hub in a different machine.

NOTE:

It is required a machine for each Internet Explorer version.

4.1.3. Node Configuration - Internet Explorer

To configure a node with MS Internet Explorer the following configuration is required:

On IE 7 or higher on Windows Vista or Windows 7, set the Protected Mode settings for each zone to be the same value. The value can be on or off, as long as it is the same for every zone. To set the Protected Mode settings, choose "Internet Options…" from the Tools menu, and click on the Security tab. For each zone, there will be a checkbox at the bottom of the tab labeled "Enable Protected Mode".
Additionally, "Enhanced Protected Mode" must be disabled for IE 10 and higher. This option is found in the Advanced tab of the Internet Options dialog.
The browser zoom level must be set to 100% so that the native mouse events can be set to the correct coordinates.
For IE 11 only, it will need to set a registry entry on the target computer so that the driver can maintain a connection to the instance of Internet Explorer it creates. For 32-bit Windows installations, the key to examine in the registry editor is HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Internet Explorer\Main\FeatureControl\FEATURE_BFCACHE. For 64-bit Windows installations, the key is HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\Internet Explorer\Main\FeatureControl\FEATURE_BFCACHE. Please note that the FEATURE_BFCACHE subkey may or may not be present, and should be created if it is not present.

Important:

Inside this key, create a DWORD value named iexplore.exe with the value of 0.

Check the rest of the configurations at the following website: https://github.com/SeleniumHQ/selenium/wiki/InternetExplorerDriver#required-configuration

4.1.4. Jenkins Agent

This machine runs a Jenkins Agent that executes Minium Projects.

To be able to connect to the SCM repositories, build the projects and launch the Minium Projects, it is required that this machine has installed the following software:

Java 8
Git and/or SVN
Maven

Also, it is required to download the agent.jar to be able to connect to the Jenkins. To download the archive jar, access the link <jenkins_ulr>/jnlpJars/agent.jar.

4.2. System Requirements

Minium Manager minimum requirements are:

Hard-Drive:

Minium Manager + Database + Selenium Grid Hub:

To be able to run the Minium Manager the system needs to have at least 700 Mb free. Basically enough space to extract the ZIP file, run the tomcat and to write log files. Relatively to the data produced by Minium Manager, is needed to take into account how many projects will have and how many executions are scheduled (and that will be stored). Excluding the size of the project source code, execute 100000 scenarios (number of scenarios available for one month), it is required of 20 GB (worst case) to store the history of the executions performed by jenkins. This value may vary depending on the success of the test, the number of projects and the number of executions that will be stored (old executions will be deleted). If the scenario fails, it is required a greater amount of space to store the screenshots where the error occurred during the test and the logs. For each scenario, it is needed, at least, 210 KB to save the data produced by the test. This amount does not take into consideration the space needed for the database.

Software:

JAVA 8

If the server machine is a LINUX system with no graphical interface. You will need to install the following packages:

xvfb
xfonts-75dpi
fontconfig
libjpeg62-turbo
libxrender1
- Selenium Grid Node:

  To be able to install and run the node the system needs to have at least 100 Mb free. Not taking into consideration the Web Browsers.

Memory:

Minium Manager + Database + Selenium Grid Hub: is required 8 GB.
Selenium Grid Node: is required 1 GB.
Jenkins Node: depends on the load but at the very least it would be 8 GB.

Offline Server:

RPM packages for LINUX systems:

If the server machine does not have Internet access the RPM packages will be provided, then follow the steps below:

Extract the packages into the server machine
Go to the folder where the packages were extracted
rpm -Uvh *.rpm
- Repository Maven:

Local repository maven to execute the project will also be provided, then follow the steps below:

Extract the folder into the default location of repository maven (${user.home}/.m2/repository)

5. Installing Minium Manager

This chapter describes how to install Minium Manager in a standalone application or with docker.

To install (as standalone):

Contact VILT and request the Minium Manager installation bundle.
Extract minium-manager.zip to a directory of your choice.

5.1. Database Configuration

By default, Minium Manager uses a H2 database but an Oracle, a SQL Server or a MySQL database is recommended.

Before proceeding, it is necessary to create the database named minium.

Note:

Be free to give another name to the database. After, it is necessary to set the database name in the endpoint of the database connection at the application server.

5.1.1. MySQL

The Minium Manager supported MySQL 5.6 Community Edition.

To define the new configuration of the MySQL edit the file $MINIUM_MANAGER_HOME/config/application-prod.yml, in order to replace the <dbhost>, <username> and <password>:

spring:
  datasource:
    driver-class-name: com.mysql.jdbc.jdbc2.optional.MysqlDataSource
    url: jdbc:mysql://<dbhost>/minium
    username: <username>
    password: <password>
  jpa:
    database-platform: org.hibernate.dialect.MySQLInnoDBDialect
    database: MYSQL

It is also recommend to increase the buffer pool size of MySQL to avoid future problems when the amount of data stored on the database increases (see Minium Manager is slow on section Troubleshooting Minium Manager).

5.2. Selenium Grid Configuration

Minium Manager uses Selenium Grid to provide an easy way to run tests in parallel on multiple machines and manage different browser versions and browser configurations centrally.

The default configuration run the Hub and the Node in the same machine as the Minium Manager, but it can choose to run the Hub and the Node on another machine or use the browserstack as provider to run the tests.

5.2.1. Move the Hub and the Node to another machine

If choose to run the Hub on another machine, copy the ./selenium folder to the new machine and configure the new endpoint.

Inside this folder (./selenium), will find two folders: hub and node.

The hub folder contains a configuration to run the Hub (see below).

The node folder contains two folders with configurations to run the Node in a MS Windows and in a Linux OS machine:

The win folder contains a configuration to run the Node in a MS Windows OS machine. In this configuration (./selenium/node/win/node_5555.json file), it is configured 3 instances of firefox, 3 instances of chrome and 1 instance of internet explorer (version 11).
The linux folder contains a configuration to run the Node in a Linux OS machine (default configuration). In this configuration (./selenium/node/linux/node_5555.json file), it is configured 3 instances of firefox and 3 instances of chrome.

It is necessary to add/update the Minium Manager configuration (replace <selenium_host> at the ./config/application-prod.yml file) in order to set the new provider:

minium:
  manager:
    providers:
      - type: seleniumgridextras
        selenium-grid-extras-url: <selenium_host>/grid

After this launch the Hub from another machine with ./bin/start-selenium-hub.(sh|bat) script (from the ./selenium/hub copied folder):

Note:

The new machine must have the java installed and configured (i.e. the JAVA_HOME environment variable).

It is possible to choose a different port (default: 4444), to do this edit the hub_4444.json (at the ./selenium/hub copied folder) before launching the Hub, to replace the port property.

At the ./selenium/hub folder find the hub_4444.json file with the following properties:

Property Type (Default Value) Description

Property	Type (Default Value)	Description
`port`	Integer (4444)	`The port that Hub will use (explained above).`
`newSessionWaitTimeout`	Integer (-1)	`The time (in milliseconds) after which a new test waiting for a node to become available will time out. When that happens, the test will throw an exception before starting a browser.`
`throwOnCapabilityNotPresent`	Boolean (true)	`If true, the hub will reject test requests right away if no proxy is currently registered that can host that capability. Set it to false to have the request queued until a node supporting the capability is added to the grid.`
`nodePolling`	Integer	`Interval (in milliseconds) between alive checks of node how often the hub. Checks if the node is still alive.`
`cleanUpCycle`	Integer	`How often (in milliseconds) a proxy will check for timed out thread.`
`browserTimeout`	Integer	`The timeout (in milliseconds) a browser can hang.`
`timeout`	Integer	`The timeout (in milliseconds) before the hub automatically ends a test that hasn’t had any activity in the last X seconds. The browser will be released for another test to use. This typically takes care of the client crashes.`
`maxSession`	Integer (5)	`The max number of tests that can run at the same time on the nodes, independently of the browser used.`

port

Integer (4444)

The port that Hub will use (explained above).

newSessionWaitTimeout

Integer (-1)

The time (in milliseconds) after which a new test waiting for a node to become available will time out. When that happens, the test will throw an exception before starting a browser.

throwOnCapabilityNotPresent

Boolean (true)

If true, the hub will reject test requests right away if no proxy is currently registered that can host that capability. Set it to false to have the request queued until a node supporting the capability is added to the grid.

nodePolling

Integer

Interval (in milliseconds) between alive checks of node how often the hub. Checks if the node is still alive.

cleanUpCycle

Integer

How often (in milliseconds) a proxy will check for timed out thread.

browserTimeout

Integer

The timeout (in milliseconds) a browser can hang.

timeout

Integer

The timeout (in milliseconds) before the hub automatically ends a test that hasn’t had any activity in the last X seconds. The browser will be released for another test to use. This typically takes care of the client crashes.

maxSession

Integer (5)

The max number of tests that can run at the same time on the nodes, independently of the browser used.

Node Configuration

The default configuration run one Node in the same machine as the Minium Manager.

In order to run instances of the Node on another machine, copy the ./selenium folder to the new machine and configure the endpoint to Hub. It is required that the new machine have java installed.

To define the endpoint of the Hub, edit the Node configuration (on the new machine) at ./selenium/node/(linux|win)/node_5555.json file, to replace <machine_ip> (the host/"ip address" of the new machine), <hub_host> (the host/"ip address" of the Hub) and <hub_port> (the port used by the Hub):

{
  ... ,
  "configuration": {
    ... ,
    "host": "<machine_ip>",
    ...
    "hubHost": <hub_host>,
    "hubPort": "<hub_port>",
    ...
  }
}

Launch the Node from another machine with ./bin/start-selenium-node.(sh|bat) script (from the ./selenium/node/(linux|win) copied folder):

Note:

Before start any Node instance, make sure that the Hub instance is started.

Note:

Be free to change this configuration, but before apply the changes, stop the Node, update the node_5555.json file, and launch the Node again.

At the capabilities section (in the node_5555.json file) we can set the browser(s) for the tests:

Property Type Description

Property	Type	Description
browserName	String	The name of the browser being used; this value should be one of `{android\|chrome\|firefox\|htmlunit\|internet explorer\|iPhone\|iPad\|opera\|safari}`.
version	String	The browser version, or the empty string if unknown.
platform	String	A key specifying which platform the browser should be running on. This value should be one of `{WINDOWS\|XP\|VISTA\|MAC\|LINUX\|UNIX\|ANDROID}`. When requesting a new session, the client may specify `ANY` to indicate any available platform may be used.
maxInstances	Integer	Maximum number of instances to allow to connect to grid.

browserName

String

The name of the browser being used; this value should be one of {android|chrome|firefox|htmlunit|internet explorer|iPhone|iPad|opera|safari}.

version

String

The browser version, or the empty string if unknown.

platform

String

A key specifying which platform the browser should be running on. This value should be one of {WINDOWS|XP|VISTA|MAC|LINUX|UNIX|ANDROID}. When requesting a new session, the client may specify ANY to indicate any available platform may be used.

maxInstances

Integer

Maximum number of instances to allow to connect to grid.

Check the rest of the properties at the following website: https://raw.githubusercontent.com/wiki/SeleniumHQ/selenium/DesiredCapabilities.md

WebDrivers Configuration

In order to update the webdrivers at the Node, due the incompatibility with the web browser version (check Selenium Grid - WebDrivers to see more about the compatibility), edit the selenium_grid_extras_config.json file. In this file will find the several webdrivers supported by Selenium:

webdriver - The old webdriver that supports Firefox (Supports Firefox 46 or prior versions). It will be discontinued.
iedriver - The webdriver that supports Internet Explorer
chromedriver - The webdriver that supports Google Chrome.
marionettedriver - The new webdriver that supports Firefox (Supports Firefox 47+).

So, in order to define the version of the webdriver to use, open and edit the selenium_grid_extras_config.json file:

{
  ... ,
  "theConfigMap": {
    ... ,
    "{webdriver|iedriver|chromedriver|marionettedriver}": [
      "version": "<nr_version>"
    ],
    ...
  }
}

Will find a block for each webdriver. It is only necessary replace <nr_version>.

Selenium Grid Extras also automatically updates the webdrivers binaries. In order to automatically update the webdrivers binaries, open and edit the selenium_grid_extras_config.json file to set the property auto_update_drivers with the value '1':

{
  ... ,
  "auto_update_drivers": "1",
  ... ,
}

Auto Restart Nodes

Selenium Grid Extras can restart the nodes automatically after a certain amount of builds have been executed and the node is currently not busy. This helps to keep the nodes in pristine state for longer periods of time, and clears up and browser crashes, which may have occurred. To restart node machine automatically, it is required the following setup:

Setup default login user
Setup default start up task
Give permission to access OS

Windows Node

To setup the default login user, you can use the tool Autologon from Sysinternals. After you download the file AutoLogon.zip, extract the zip file at the node machine and run the Autologon.exe:

Enter the username, domain and password or the user you want to autologin after the restart an click Enable. If the Autologon was successfully configured, the machine will autologon automatically with the user configured.

The user, configured at the autologin, must be able to run the command shutdown -r -t 1 -f at the terminal.

To configure the startup of the Selenium Node at windows, you need to add the batch script to the StartUp directory:

Create a shortcut to the batch file:
1. The shortcut that we should create is ./selenium/node/win/start-selenium-node.bat.
Once the shortcut has been created, right-click the file and select Cut.
Press the Start button and type Run and press enter (or use the keyboard shortcut Win+R).
In the Run window, type shell:startup to open the Startup folder.
Once the Startup folder has been opened, click the Home tab at the top of the folder and select Paste to paste the shortcut into the folder.

For windows, we don’t need to setup permissions as long as the user (configured at autologon) can run the following command in the Terminal: shutdown -r -t 1 -f

Check the rest of the Selenium Grid Extras configurations at the following website: https://github.com/groupon/Selenium-Grid-Extras

Additional browser capabilities

By default, the selection of the browsers on which the tests will run is as simple as possible, by only taking into account their names. In case more specificity is needed, additional browser capabilities can be configured. If any of those capabilities is not browserName, version, platform or applicationName, start by making sure that:

The minium-grid.extensions.jar file is on the selenium folder.
The property hub_additional_classpath on the selenium/hub/selenium-grid-extras_config.json file includes the value minium-grid-extensions.jar.
The property capabilityMatcher on the selenium/hub/hub_4444.json file is set to minium.manager.grid.MiniumCapabilityMatcher.

After setting up the hub, add the capabilities to the JSON configuration files of the nodes (e.g., node_5555.json). Example containing the version, platform and environment of each browser:

{
  "capabilities": [
    {
      "browserName": "chrome",
      "maxInstances": 1,
      "version": "62",
      "platform": "Windows",
      "environment": "Development"
    },
    {
      "browserName": "firefox",
      "maxInstances": 1,
      "version": "56",
      "platform": "Windows",
      "environment": "Development"
    }
  ]
}

Note that the names of the capabilities are in camel case (browserName, applicationName, etc.).

Lastly, add the capability names to the config/application-prod.yml file, so that they will be considered and displayed on the user interface:

minium:
  manager:
    webdrivers:
      capabilities-to-consider:
        - version
        - platform
        - environment

5.2.2. BrowserStack

To run the tests through browserstack as provider is necessary to update the default configuration.

First disable the default configuration in order to set the new provider. So, edit the ./config/application-prod.yml file to uncomment the minium.manager.providers.browserstack-username and the minium.manager.providers.browserstack-access-key (remove the '# '), set the minium.manager.providers.type with the browserstack value and replace <browserstack_username> and <browserstack_access_key>:

 minium:
   manager:
     providers:
       - type: browserstack
         browserstack-username: <browserstack_username>
         browserstack-access-key: <browserstack_access_key>

The minium.manager.providers.type property value should be one of:

*seleniumgridextras*: for a local Selenium Grid configuration (it also requires the configuration of the minium.manager.providers.selenium-grid-extras-url property).
*browserstack*: to use the browserstack as provider (it also requires the configuration of minium.manager.providers.browserstack-username and minium.manager.providers.browserstack-access-key properties).

5.2.3. Multiple providers

Minium Manager also supports the configuration of multiple providers.

To add multiple providers, edit the Minium Manager configuration (replace the placeholders, explained above, and the <provider_label> at the ./config/application-prod.yml file) in order to set the list of providers:

 minium:
   manager:
    providers:
      - label: <provider_label> (e.g: Selenium Grid Extras)
        type: seleniumgridextras
        selenium-grid-extras-url: <selenium_host>/grid
      - label: <provider_label> (e.g: BrowserStack)
        type: browserstack
        browserstack-username: <browserstack_username>
        browserstack-access-key: <browserstack_access_key>
      - label: ...
        ...

For each new provider, we must define the index of the provider (the previous provider index plus 1).

The provider_label configuration must be an unique value and will define the name of the provider that will be displayed at the Minium Manager interface.

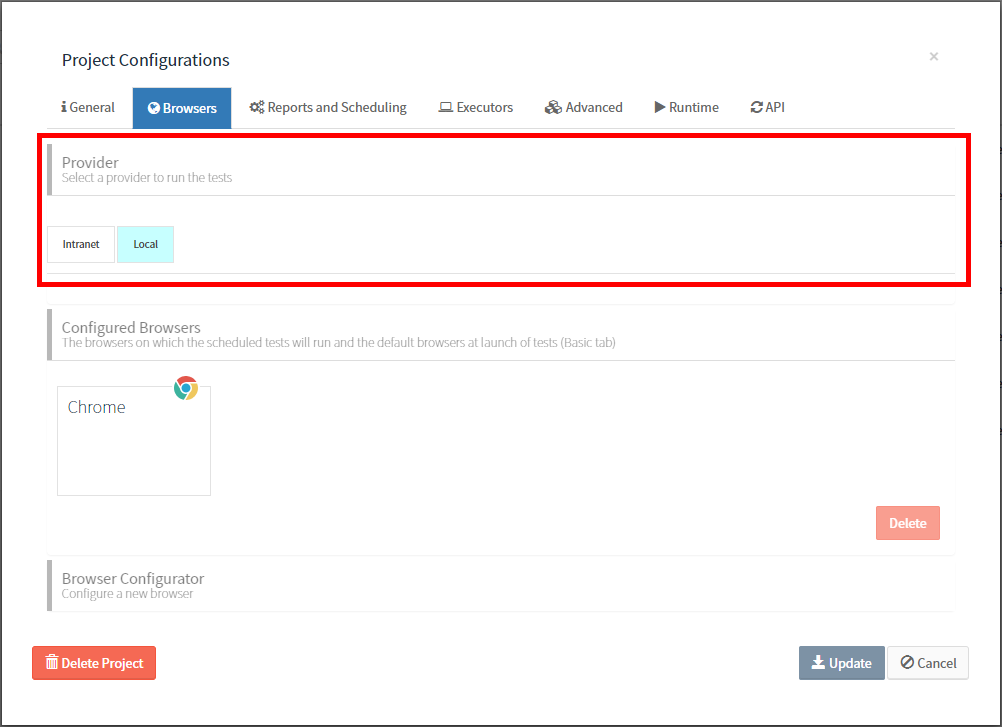

After the configuration of multiple providers, restart Minium Manager, to be able to launch the tests in different providers.

5.3. Standalone Installation

The quickest way to start using Minium Manager is to launch it as a standalone application.

5.3.1. Start Minium Manager

Minium Manager is launched by running the script ./bin/start-minium-manager-all.(sh|bat).

Note:

Minium Manager is launched with 1024M of heap size. To increase the heap size, you must edit the JAVA_OPTS environment variable at ./tomcat/bin/setenv.(sh|bat).

Change the default configuration (e.g. run Selenium Grid and/or Selenium Node in another host), then launch the Selenium Grid and/or Selenium Node from the different hosts (see Selenium Grid Configuration). After this run the script ./bin/start-minium-manager.(sh|bat) to start Minium Manager.

To start the Selenium Grid and Selenium Node from another host, check the Selenium Grid Configuration.

After Minium Manager is started, and if the default configuration is used, it is ready to use and available at http://<hostname>:8080/

5.4. Docker Installation

An Alternative way to start using Minium Manager is through a docker container.

To run Minium Manager with docker, it is required have docker installed, docker compose too and a machine with Linux.

To install:

Contact VILT and request the Minium Manager installation bundle.
Extract minium-manager.zip to a directory on the local machine.

5.4.1. Start Minium Manager

Minium Manager can be started by executing the following commands:

Navigate to the directory created by the extraction of the installation bundle minium-manager.zip.
Run the Minium Manager image, with the following command:

docker-compose up -d &

Note:

To configure Minium Manager (i.e. Database connection, Selenium, …), check the Installing Minium Manager section.

5.5. TestLink

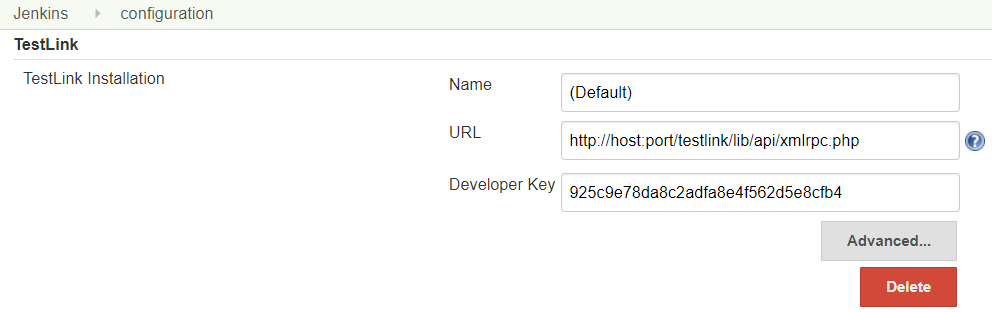

Minium Manager can be configured to export test results to TestLink. To configure the integration with TestLink, start by making sure that the TestLink Plugin is installed on Jenkins. After that, go to Manage Jenkins > Configure System and configure the URL of TestLink and a developer key with permissions to create builds on all the desired projects:

Then, open the config/application.yml and add the TestLink value to the minium.manager.modules property:

minium:
  manager:
    modules:
      - TestLink

To log the batch update requests, configure the following logging levels:

logging:
  level:
    # logs the user who performed the request
    minium.manager.web.rest.TestLinkResource: INFO
    # logs the number of projects being updated
    minium.manager.service.TestLinkService: INFO

5.6. Add Jenkins Node

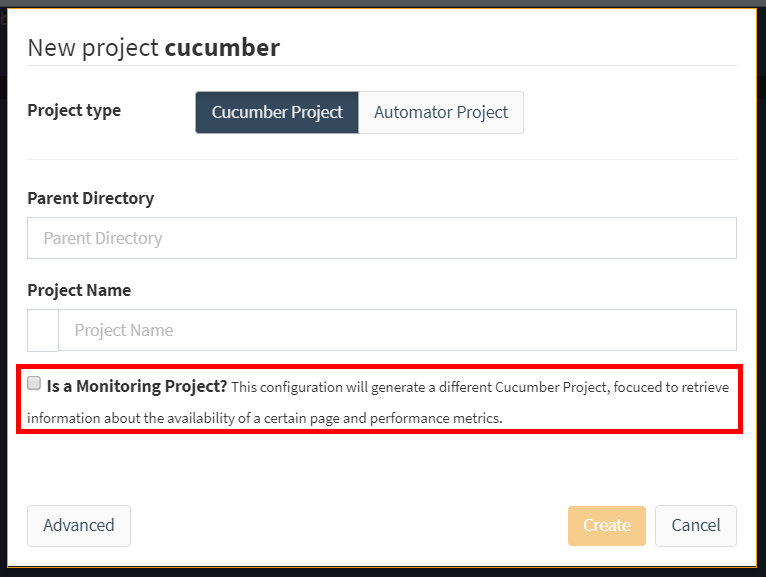

Minium Manager supports a new type of project: the monitoring project that are executed with high frequency (every 5, 10, 20 minutes), and can give us a report about the availability of a certain page and performance metrics, with the objective to check that the page are working as expected.

Before configuring a this new project type, first configure jenkins to add a new agent:

To add a new agent:

Go to Manage Jenkins > Manage Nodes > New Node.
Set the Node name field (store the node name), select Permanent Agent and click Ok.
Configure the # of executors (e.g. 5), the Remote root directory (at the Jenkins Agent machine, e.g. /tmp) and click Save.
Open the new node menu (<jenkins_ulr>/computer/<node_name>/) and copy command to start the new Agent.
Lanch the Jenkins Agent (by executing the command previously retrieved) and check if the Agent is connected.

Important:

Check the Jenkins Agent to see the requirements of a new node.

6. After Installing Minium Manager

Minium Manager allows tweaking configurations such as follows:

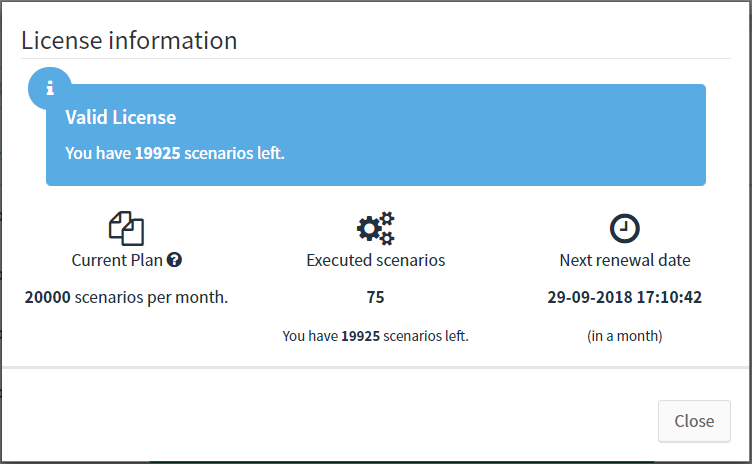

6.1. License

This chapter describes the procedure to gather all the information required to produce a valid license and how to setup the installation with a license. Minium Manager allows to configure Projects without a license but do not allow to run tests without a valid license in place.

The license has a limit of executions per month. Each month the executions are reseted. An alert will be shown in Minium Manager when the number of executions gets close to the limit.

As an example, if exists a project with 10 features and each features have 5 scenarios, when an execution is launched in one browser it will consider 50 scenarios executed at the end of the execution. If launch the execution in 2 browsers, it will count 100 scenarios (2 x 50 scenarios) executed.

6.1.1. Obtaining a Valid License

Request a license form VILT and attach the company name.

6.1.2. Configuring Minium Manager License

With a valid license it only needs to add its contents to the file ./config/license/key.license and restart Minium Manager. After this should be able to run tests normally.

To configure the Minium Manager license, edit the ./config/application-prod.yml file in order to set the minium.manager.license.client-name and minium.manager.license.scenarios-alert-notification in order the replace the <client_name> (the name of the client) and the <number_of_scenarions> (the number of scenarios executed before launch a notification) values.

minium:
  manager:
    license:
      client-name: <client_name>
      scenarios-alert-notification: <number_of_scenarions>

6.2. Logs

This chapter describes how to manage the logging of the several components of Minium Manager.

6.2.1. Minium Manager

By default, Minium Manager writes logs to ./logs/minium.log. Change easily the following properties in application-prod.yml to tweak the logs:

Property Description Default Value

Property	Description	Default Value
`logging.level.root`	Default logging level for all classes	`INFO`
`logging.level.fullyqualifiedname`	Specify log level for specific packages by replacing fullyqualifiedname with the full class name. For example: org.springframework	`—`

logging.level.root

Default logging level for all classes

INFO

logging.level.fullyqualifiedname

Specify log level for specific packages by replacing fullyqualifiedname with the full class name. For example: org.springframework

—

Next an example of a possible logging configuration:

logging:
  file: ${minium.manager.home}/logs/minium.log (1)
  level:
    org.springframework: WARN (2)
    minium.manager: DEBUG  (2)

1	Path where minium manager will write the log file
2	Add or remove keys to suit the needs

Note:

The properties logging.level.root and logging.level.fullyqualifiedname can be set with one of the following values: ERROR, WARN, INFO, DEBUG or TRACE.

To stop the minium manager logging for the ./logs/minium.log file, please comment the line file: ${minium.manager.home}/logs/minium.log the logging configuration (Add the hash sign "#" at the beginning of the line) at the application-prod.yml file and the restart the tomcat. The minium manager logging will start to be written at the ./logs/catalina.<date>.log

Jenkins

If you intend to separate the jenkins file in a new file, you can create the file ./tomcat/webapps/jenkins/WEB-INF/classes/logging.properties with the content:

handlers = org.apache.juli.AsyncFileHandler

org.apache.juli.AsyncFileHandler.level = FINE
org.apache.juli.AsyncFileHandler.directory = ${minium.manager.home}/logs
org.apache.juli.AsyncFileHandler.prefix = ${classloader.webappName}.
org.apache.juli.AsyncFileHandler.maxDays = 3

Note:

The path ./tomcat/webapps/jenkins/WEB-INF/classes/ will be generated after the tomcat starts for the first time and the file ./tomcat/webapps/jenkins.war be deployed.

After tomcat is restarted, the jenkins logging will start to be written at the ./logs/jenkins.<date>.log.

Find more information at https://tomcat.apache.org/tomcat-8.5-doc/logging.html#Using_java.util.logging_(default)

6.2.2. Selenium Grid

Selenium will write the logs at the ./selenium/{hub|linux|win}/log folder at INFO (logging level for all classes).

To update the default configuration, edit the selenium_grid_extras_config.json file, in order to add the following block:

{
  ... ,
  "theConfigMap": {
    ... ,
    "grid_jvm_options": {
      "selenium.LOGGER.level": "<level>"
    },
    ...
  }
}

The <level> can be replaced with:

OFF: Turns off logging.
SEVERE: Messages about things that went wrong. For instance, an unknown command.
WARNING: Messages about things that may be wrong but was handled. For instance, a handled exception.
INFO: Messages of an informative nature. For instance, information about received commands.
DEBUG: Messages for debugging. For instance, information about the state of the driver.
ALL: All log messages. A way to collect all information regardless of which log levels that are supported.

Find more information at https://github.com/SeleniumHQ/selenium/wiki/Logging.

6.3. E-mail

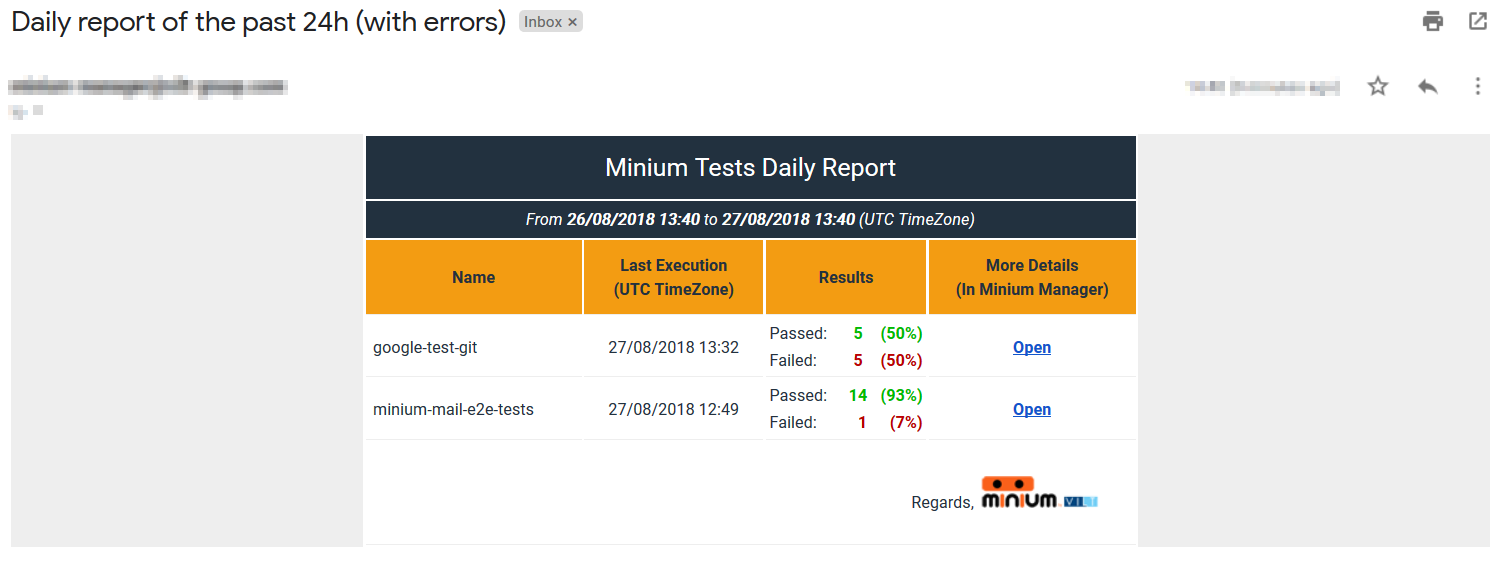

Configure e-mail reports for Minium Manager executions. This way, the executions status can be sent by e-mail, which is specially handy for large tests.

Before defining the e-mail recipients on the project configuration, configure the e-mail server.

To configure the e-mail gather the following properties:

Protocol: The protocol used by the email server
Hostname: The email server hostname
Port: The email server port number
Username: The login user of the server
Password: The login password of the server
From: The e-mail field from

This configuration is done on ./config/application-prod.yml as follows:

spring:
  mail:
    protocol: smtp
    host: mail.example.com
    port: 25
    user: SomeUser
    password: SomePassword
    tls: false
    auth: false
    from: minium@example.com

6.4. LDAP

To use LDAP authentication, set the following properties in the config/application-prod.yml file:

URLs: The URLs of the LDAP servers.
Username: DN of a binding user.
Password: Password of the binding user.
Base: Base suffix from which all operations should originate.
User search base: The search base for user searches.
User search filter: The filter used to search for users, where {0} will get replaced by the user’s login name.
Group search base: The search base for group membership searches.
Group search filter: The filter used to search for group membership, where {0} will get replaced by the DN of the user.
Group name attribute: The attribute that contains the name of the group.
Admin: The login name of the initial administrator.

Here is an example:

spring:
  ldap:
    urls:
      - ldap://myserver1:389
      - ldap://myserver2:389
    username: uid=admin,dc=example,dc=com
    password: secret
    base: dc=example,dc=com
    base-environment:
      user-search-base: ou=users
      user-search-filter: uid={0}
      group-search-base: ou=groups
      group-search-filter: uniqueMember={0}
      group-name-attribute: cn
      admin: an.admin.user

6.5. Videos

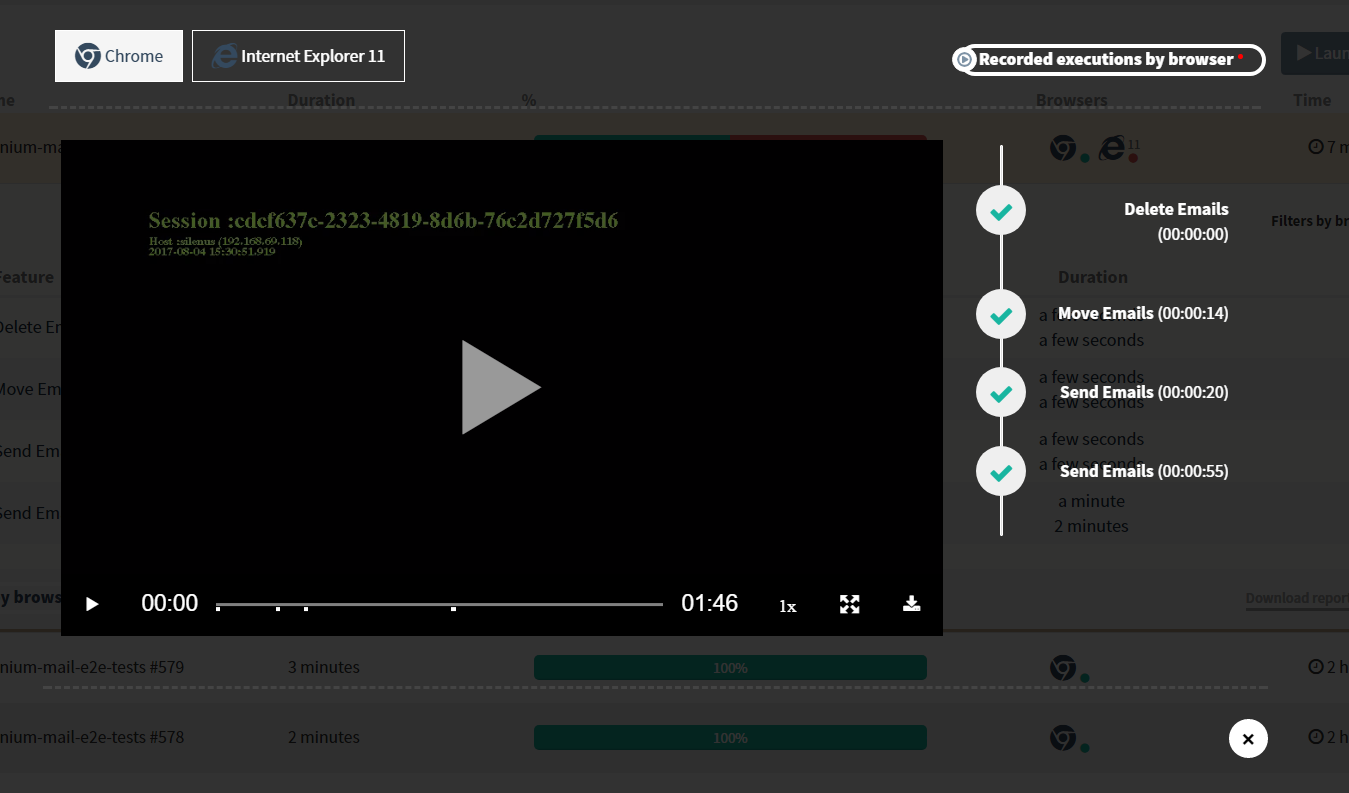

To record the tests and present the videos at executions and features pages, set the following properties in the config/application-prod.yml file:

location-path: The path where the videos are stored.
max-disk-space: Maximum disk space available for the video files before the system warn the user at the health check page (in megabytes).

Here is an example:

minium:
  manager:
    video:
      location-path: /opt/minium/videos
      # size in MB
      max-disk-space: 10240

6.6. Minium version auto-update

For the version of minium-cucumber-parent to be automatically updated for the projects have that auto-update enabled:

Set the minium.manager.jenkins.miniumCucumberParentVersion property to the target version. To use the latest version instead of a specific version, set the value of the property to the minimum version and add a , after it (for example 1.9.5,). If this property is not defined, the tests will run with the version defined on the POM even if auto-update is enabled.
The Maven installation used by Jenkins (Manage Jenkins > Global Tool Configuration) must have name maven_jenkins and the user who runs Jenkins must have permission to execute the binary.

6.7. Error Message (Jenkins)

To print the errors at the console output, you need to add the error pattern (regular expression based in the java.util.regex package) that occurs in the console output of the child job (e.g. /ERROR: Subversion checkout has been canceled/). You can configure the patterns at the minium.manager.jenkins.error-patterns property list. When the pattern matchs with a line at the console output of the child job, the console output will be added to the pipeline job until find an empty line or the line "Build was aborted". The error will be propagated to the pipeline job and will be printed at the front-end of Minium Manager.

At front-end, Minium Manager displays an user-friendly message for the common cases: /org\.mozilla\.javascript\.JavaScriptException: Error: Module \".+\" not found\..*/ (Module missing at the project) and /org\.tmatesoft\.svn\.core\.SVNAuthenticationCancelledException: svn: E200015: Authentication cancelled/, /ERROR: Subversion checkout has been canceled/ (Wrong credentials for the svn repository).

6.8. Monitoring

To configure the Minium Manager to execute monitoring projects, set the following properties in the config/application-prod.yml file:

agents-label: The given name of Jenkins Node.
max-projects-per-agent: Maximum number of projects that executes per node.

Here is an example:

minium:
  manager:
    jenkins:
      agents-label:
        - monitoring
      max-projects-per-agent: 10

6.9. Executors

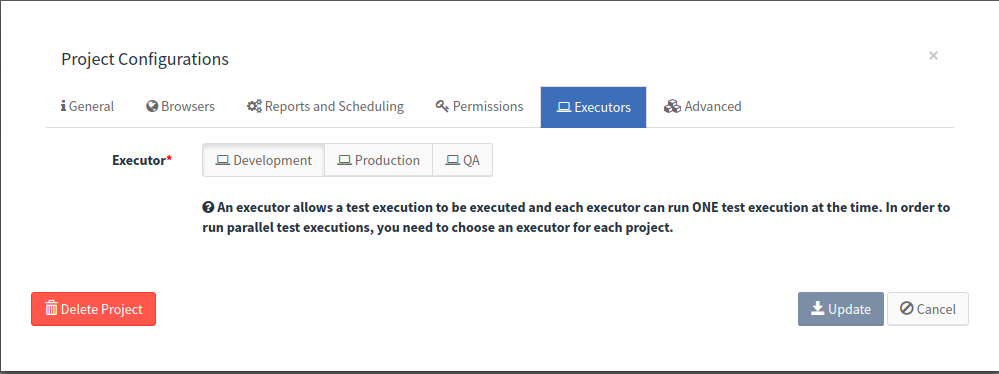

An executor allows a test execution to be executed and each executor can run ONE test execution at the time. In order to run parallel test executions, you need to choose an executor for each project.

home-dir: Jenkins home directory
executors: List of executors. Each executor has a name and label (this label will be shown in the UI).

Here is an example:

minium:
     manager:
        jenkins:
          home-dir: /home/minium-manager/data/jenkins
        executors:
          - name: dev
            label: Development
          - name: prod
            label: Production
          - name: qa
            label: QA

6.10. Additional WebDriver configurations

Additional WebDriver configurations can be set by adding profiles to the config/application-webdrivers.yml corresponding to the browser names and/or versions. Examples:

# adds the marionette capability when running tests on Firefox 47
spring:
  profiles: firefox47

minium:
  webdriver:
    desiredCapabilities:
      marionette: false
---
# starts Chrome, regardless of the version, with the no-sandbox argument
spring:
  profiles: chrome

minium:
  webdriver:
    chromeOptions:
      args:
        - no-sandbox

6.11. Integration with HP ALM

Minium Manager allow integration with HP Application Lifecycle Management (HP ALM). After Minium Manager execute the tests, the results are imported into HP ALM. Afterwards, see the results published in ALM.

Before configuring a project that imports the tests results to HP ALM, first configure the HP ALM Server at jenkins.

To configure e-the HP ALM Server at jenkins, edit the ./tools/jenkins/com.hp.application.automation.tools.settings.AlmServerSettingsBuilder.xml file to replace ${ALM_NAME} and ${ALM_URL} properties with the name of the ALM Server and the endpoint to the ALM Server, respectively.

If already launched Minium Manager (i.e. the folder ./data/jenkins/ already exists), edit the ./data/jenkins/com.hp.application.automation.tools.settings.AlmServerSettingsBuilder.xml file as well.

It is also required edit the ./config/application-prod.yml` as follows:

minium:
  manager:
    alm:
      url: <alm_url> - also defined at the com.hp.application.automation.tools.settings.AlmServerSettingsBuilder.xml file
      server-name: <alm_server_name> - also defined at the com.hp.application.automation.tools.settings.AlmServerSettingsBuilder.xml file
      username: <alm_username> - the username of the user configured at HP ALM
      password: <alm_password> - the password of the username of the user configured at HP ALM encrypted (see the Encrypt password section below how to encrypt the password)
      baseURL: <baseURL_Minium_Manager> - the base URL of Minium Manager to create the link at HP ALM

Launch Minium Manager and create/configure a project imports the tests results to HP ALM. The ALM properties can be found at the project properties by clicking at Advanced configuration button and selecting the ALM at Modules.

6.11.1. Encrypt password

Access the jenkins console through:

http://localhost:8080/jenkins/script

And run the following script with the <password_here> replaced with the password desired to encrypt.

println(hudson.util.Secret.fromString('<password_here>').getEncryptedValue())

Press Run and retrieve the password at the result.

6.12. Update Minium Manager

Download the WAR file provided by VILT
Stop the Minium Manager by running minium-manager\tomcat\bin\shutdown.(bat|sh) script
Delete ROOT.war (if exists) and the folder ROOT in minium-manager\tomcat\webapps
Copy and paste the new .war in minium-manager\tomcat\webapps
Restart tomcat by running minium-manager\tomcat\bin\start.(bat|sh) script

7. Troubleshooting Minium Manager

Most common problems with the Minium Manager are reviewed in this chapter.

Cannot start Minium Manager:

Check if already have another service listening on the same port of the Minium Manager (default port: 8080). To configure a new port (to a standalone installation), change the port attribute value of the connector with the protocol="HTTP/1.1", at the ./tomcat/conf/server.xml file. For the docker installation, check this website in order to update the docker-compose.yml file.
If configured Minium Manager with MySQL database, check if Minium Manager database is running and is reachable from the Minium Manager host.
Check if the CATALINA_HOME environment variable is defined with the path to a different tomcat.

Cannot execute tests with Selenium Node:

The error org.openqa.selenium.remote.UnreachableBrowserException: Could not start a new session. Possible causes are an invalid address of the remote server or browser start-up failure.
- This error can occur when the Node configuration (capabilities section at the node_5555.json file) is wrong or the webdriver version is no compatible with the browser version. Check the [Support Matrix] chapter to see if the webdriver version is compatible with the browser version. Also, check the Node Configuration chapter to see if the configuration is correct.
The errors org.openqa.selenium.WebDriverException: Session * was terminated due to SO_TIMEOUT and org.openqa.selenium.WebDriverException: Error forwarding the new session Error forwarding the request Read timed out Command duration or timeout: * seconds
- Raise the browserTimeout value at the ./selenium/hub/hub_4444.json and restart the Selenium Grid (Hub and Nodes).
The error org.openqa.selenium.WebDriverException: JavaScript error (WARNING: The server did not provide any stacktrace information)
- Check if the browser has the JavaScript disable. If disabled, so enable it.: http://www.enable-javascript.com/
The error org.mozilla.javascript.WrappedException: Wrapped org.openqa.selenium.WebDriverException: Failed to navigate to https://<username>:<password>@<host>/. This usually means that a call to the COM method IWebBrowser2::Navigate2() failed.
- This error can occur when we are using the basic authentication at internet explorer. To fix this you need to register a key:
  - The 64-bit variant of IE with 64-bit variant of IEDriverServer.exe: HKEY_LOCAL_MACHINE/SOFTWARE/Wow6432Node/Microsoft/Internet Explorer/MAIN/FeatureControl/FEATURE_HTTP_USERNAME_PASSWORD_DISABLE
  - The 32-bit variant of IE with 32-bit variant of IEDriverServer.exe: HKEY_LOCAL_MACHINE/SOFTWARE/Microsoft/Internet Explorer/MAIN/FeatureControl/FEATURE_HTTP_USERNAME_PASSWORD_DISABLE
- After create a DWORD iexplore.exe with value 0 in this registry key that you just created. More info at https://stackoverflow.com/a/23519791

Cannot connect to the internet due to proxies issues:

Maven: edit the file settings.xml of the maven used by Jenkins (at ./tools/maven/conf) in order to put the proxies detail inside (uncomment the proxy options and fill in the proxy server detail) and save the file.
VN at Jenkins (java based): check the documentation to pass the settings to the tomcat (e.g. -Dhttps.proxyHost=host … -Dhttp.nonProxyHosts=localhost|…)
Git: check the documentation to configure the proxy.

Minium Manager is slow

If some pages are taking too long to load, it might be because the buffer pool size of MySQL is too small for the amount of data stored on the database. To increase it, change the value of the innodb_buffer_size configuration option of MySQL. A value of 1G should be enough for most cases.

PDF reports do not look as expected

If the appearance of PDF reports do not look as expected, it usually can be fixed by adding some options to the properties minium.manager.pdf-generator.additional-settings and minium.manager.pdf-generator.additional-settings-object. If the elements on PDF reports look too big or too small, set the load.zoomFactor parameter accordingly. Or, if there are icons missing on some reports, add the load.jsdelay parameter with a value of around 500 (milliseconds). Example:

minium:
  manager:
    pdf-generator:
      additional-settings-object:
        load.zoomFactor: 0.75
        load.jsdelay: 400

You can check the properties for additional-settings here and for additional-settings-object here.

Black videos (and black screenshots at progress) for Selenium Nodes (Windows)

When using Remote Desktop to connect to a remote computer, closing Remote Desktop locks out the computer, displaying the logon screen. If you use RDP to connect to the machine, everytime you exit the machine the GUI is diabled and the video will be recorded as black. Also, the progress screenshots will be black.

To avoid problems with GUI, use the tscon utility to disconnect from Remote Desktop. tscon returns the control to the original local session on the remote computer, bypassing the logon screen. All programs on the remote computer continue running normally, including GUI tests.

To solve this issue:

create a batch file with this code:

for /f "skip=1 tokens=3" %%s in ('query user %USERNAME%') do (
  %windir%\System32\tscon.exe %%s /dest:console
  timeout 5
)

Create a desktop shortcut to this file. To do this, right-click the batch file and select Send to | Desktop (create shortcut).
In the shortcut properties, click Advanced and select Run as administrator.

Now, when you need to disconnect from Remote Desktop, double-click this shortcut on the remote computer (in the Remote Desktop window).

It is recommended to configure the Autologon. With the Autologon, when the Selenium Node machine boots, it will sign in with an user and will have the GUI available.

An alternative is to use the VNC server to access the Selenium Nodes machine instead of RDP.

8. Uninstalling Minium Manager

Before actually removing Minium Manager please read all of the chapters in this section.

8.1. Remove Databases

If using the embedded H2 database the database directory is removed by deleting the directory created by the extraction of the installation bundle minium-manager.zip.

If MySQL it is be used it is necessary to manually drop the database.

8.2. Remove Standalone Installation Files

Note

Before proceeding shutdown the Minium Manager.

Finally, after everything else is removed, remove the Minium Manager install files by deleting the directory created by the extraction of the installation bundle minium-manager.zip.

8.3. Remove Docker Installation Files

Through the docker commands, remove the installed docker with the following command:

docker rmi minium-manager:production

Finally, after everything else is removed, remove the Minium Manager configuration files by deleting the directory created by the extraction of the installation bundle minium-manager.zip.

User Guide

VILT Minium Manager: User Guide

9. Introduction

This document describes the user interface of the VILT - Minium Manager, version 2.0.

Minium Manager is a platform to manage, run and analyze end to end tests, designed to run tests across all possible combination of browsers and OS’s on a continuous integration fashion. It allows managers to control the quality of a project, providing detailed reports with useful information for failures with errors messages and screenshots.

10. Projects

Configure projects in Minium Manager, in order to run and analyze end to end tests. All projects need to have a repository (Git or SVN) associated, where the code is stored, except the Cookie Crawler.

There are three type of projects: Web application testing, Monitoring and Cookie.

The Web application testing project is a Minium project that test a website in the same way a human would.

The Monitoring project is a Minium project that are executed with high frequency (every 5, 10, 20 minutes), and can give us a report about the availability of a certain page and performance metrics, with the objective to check that the page are working as expected.

The development workflow for a Monitoring project in Minium Developer will be similar to the a web application testing project, providing an easy and quick way to write test. The configuration in Minium Manager is similar to other projects. The monitoring project does not have the browser configuration.

The Cookie project generates a report of cookies found during the navigation or crawl of a website. The Cookie is divided in two projects: Cookie Report project and Cookie Crawler project. The Cookie Report project is a Minium project (based on the monitoring project) that extracts the all browser cookies at the end of a scenario. The Cookie Crawler project is a crawler that given one or more URLs, it crawls the websites and, for each URL, extracts the all browser cookies.

10.1. Monitoring

To start the development of a monitoring project, you need to check the checkbox Is a Monitoring Project? to generate the monitoring project:

Here are some examples of the development workflow in Minium Developer of the monitoring project:

10.1.1. Check if the website is ok

Use case: You want to test if the URL is ok and get the performance in the reports

Scenario:

Scenario: Check Blog La caixa
  When Check if website responds: "https://blog.caixabank.es/"

Step:

When(/^Check if website responds: "([^"]*)"$/, function(url) {
  browser.get(url);
});

For a monitoring project, the expression browser.get(url); retrieves the data related to page load performance, the URL status, the number of requests, the page size and javascript errors. This information will be presented at the Minium Manager report.

10.1.2. Do a search on the website with refresh and check how long it took to load.

Use case: You want to perform a search in the website (where’s there’s a refresh after the search) and check if the results appear and get the performance of the page.

Scenario:

Scenario: Search
    Given I'm at "https://www.caixabank.es/particular/home/particulares_es.html"
    When Search for "CaixaBank" and check the results

Steps:

When(/^I'm at "([^"]*)"$/, function(url) {
  browser.get(url);
});

When(/^Search for "([^"]*)" and check the results$/, function(search) {
  $("#cookies-accept-full a").click();
  $("#search-field").fill(search);
  $("#prebuscadorCabecera input[type='submit']").click();
  expect($(".search-result-block")).to.exist();
  scenario.write(browser.getPerformance());
});

The expression scenario.write(browser.getPerformance()); retrieves and store the data related to the last page load performance, the URL status, the number of requests, the page size and javascript errors. This information will be presented at the Minium Manager report.

10.1.3. Click on a link and get the performance of the page

When(/^I click on link with text "([^"]*)"$/, function(text) {
 $("a").withText(text).click();
 expect($(".page-title")).to.exist();
 scenario.write(browser.getPerformance());
});

10.2. Cookie

Since the Cookie Report project is a Minium project (based on the monitoring project), to create a Cookie Report project, simply generate a Monitoring project in Minium Developer. It is not necessary to add extra instructions to the minium code, since all browser cookies will be automatically extracted at the end of each scenario.

For the Cookie Crawler project, development is not necessary, you only need to provide one or more URLs to crawl.

10.3. Setup a project

To setup a project, click on the button New Project:

Then, fill the form:

On the General tab, fill the following fields:

Name

Display name of the project (e.g gmail-e2e-tests)

Description

Optionally provide a project description

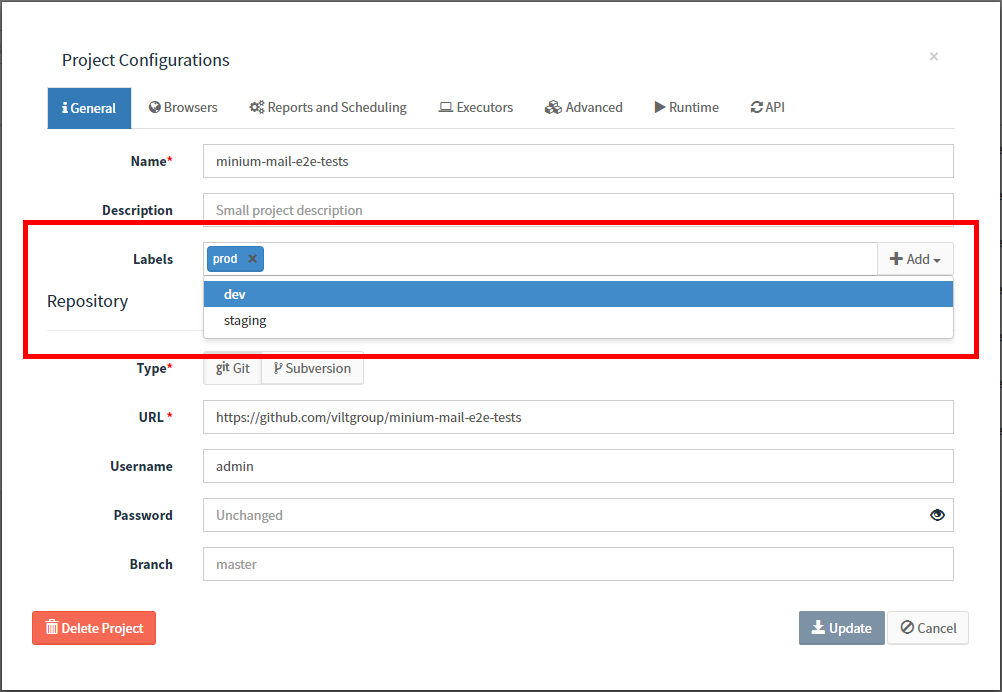

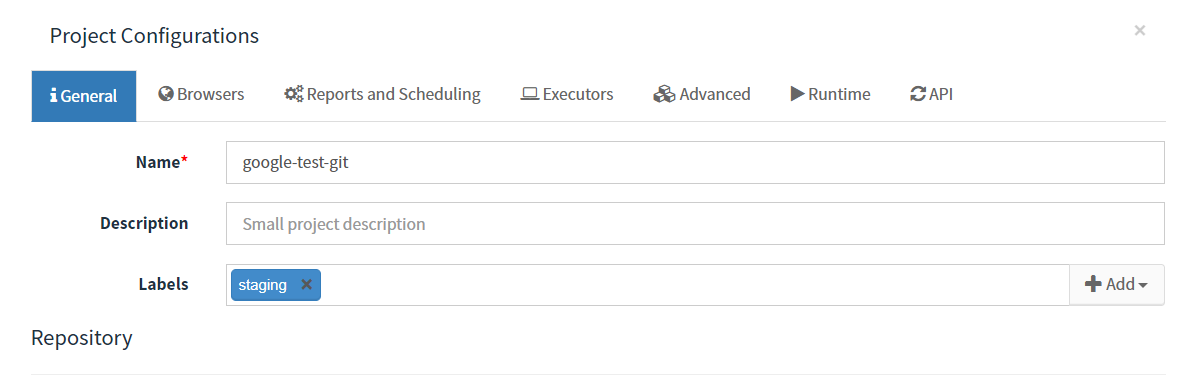

Labels

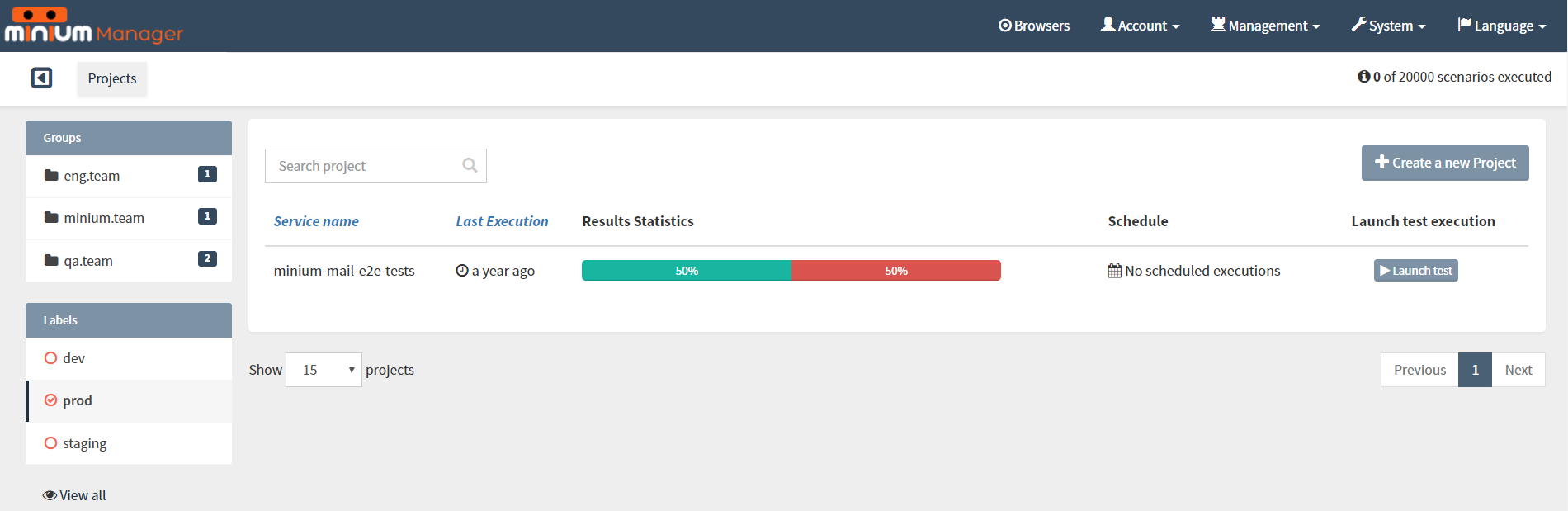

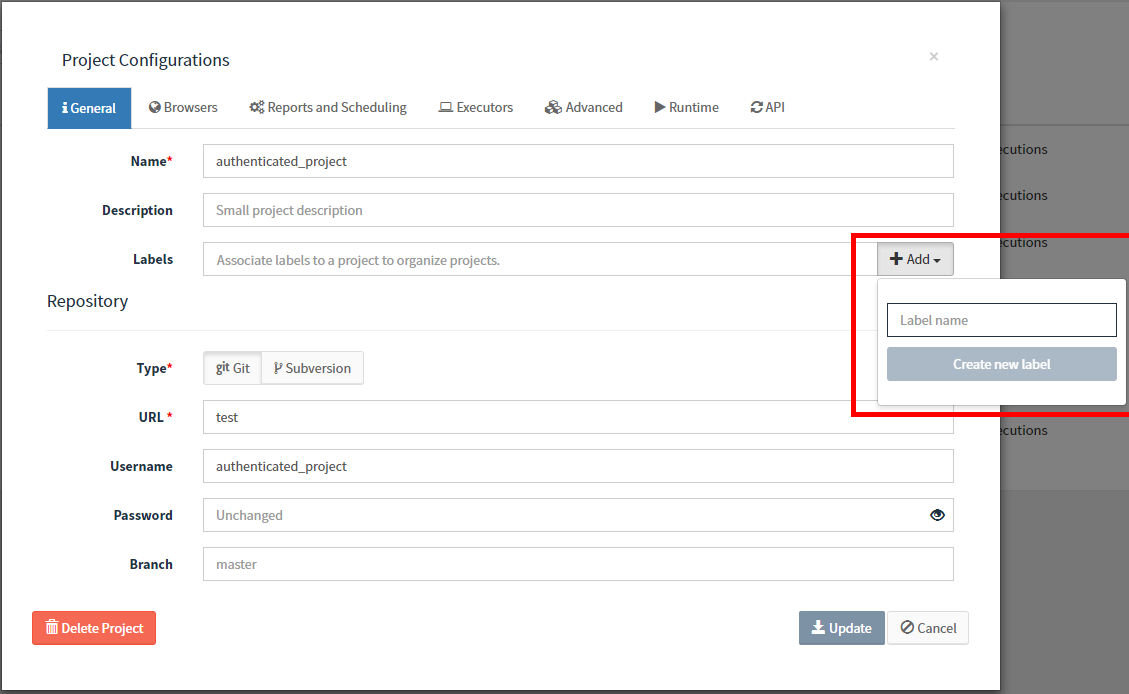

Associated labels to a project in order to organize and filter projects.

Type

Type of SCM repository

Url

URL of the repository where the project with the features is stored. The following are examples of valid git URL’s (or a local file path):

https://github.com/github/git.git

//dolos/repos/gmail-e2e-tests

Username/Password

Credentials for authentication on the repository.

Branch

The name of the branch you want to execute (GIT only). The default value is master

Cookie

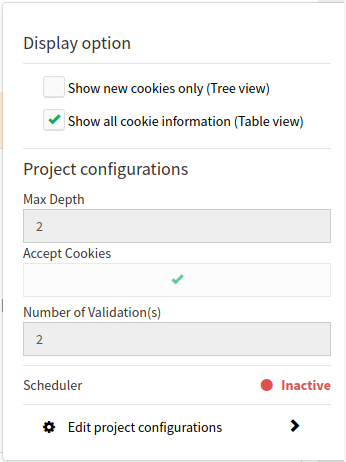

For the Cookie Crawler project the General tab is different:

Urls crawler

The URLs you want to crawl (e.g. https://www.caixabank.es/index_es.html)

Domains to Filter

The domains you want to filter at the crawl (e.g. www.caixabank.es)

Max Depth

Maximum depth for the crawler to follow links automatically

Accept Cookies

Accept the cookie warning during the crawl (is related to the field Script to accept cookies at the Runtime tab of the Cookie Crawler project).

Cookies Validations

the cookie name and/or value and/or URL of the cookies you want to validate. After you configure one validation, click at the button + to add the validation.

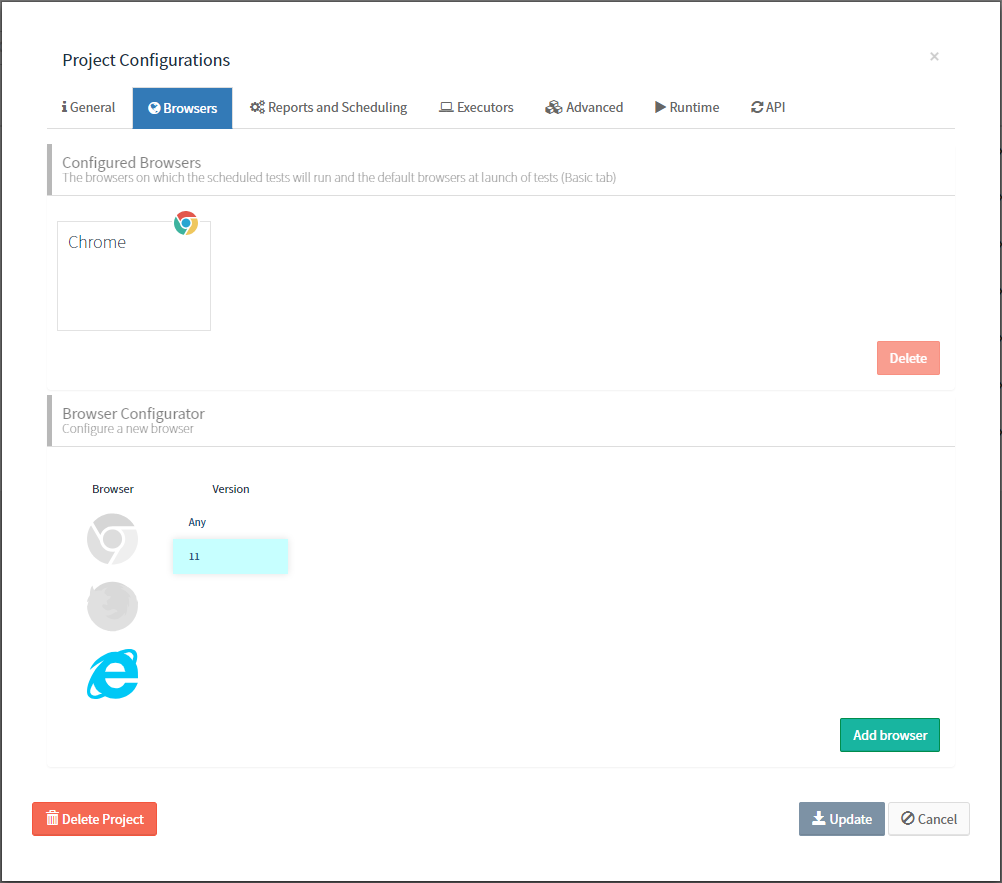

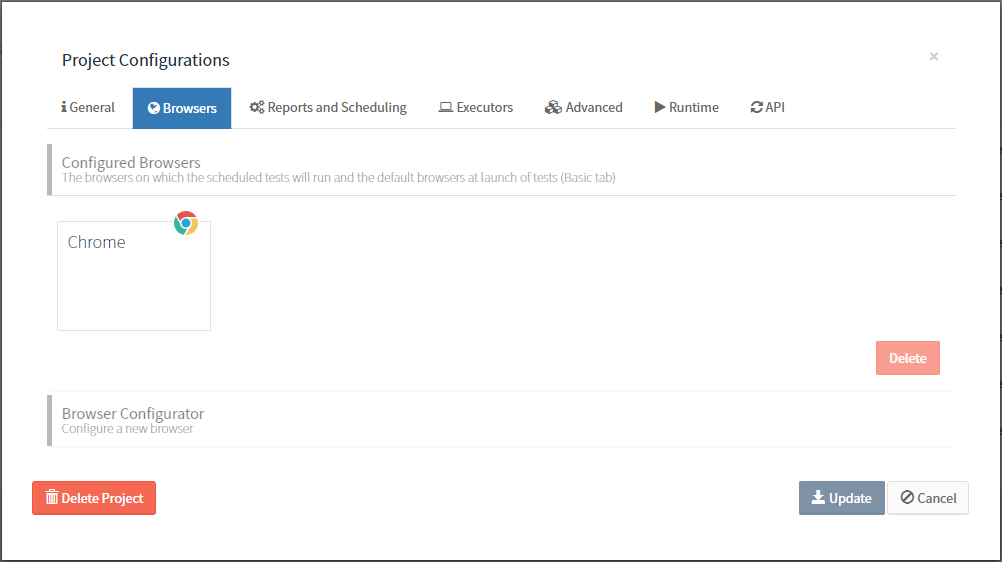

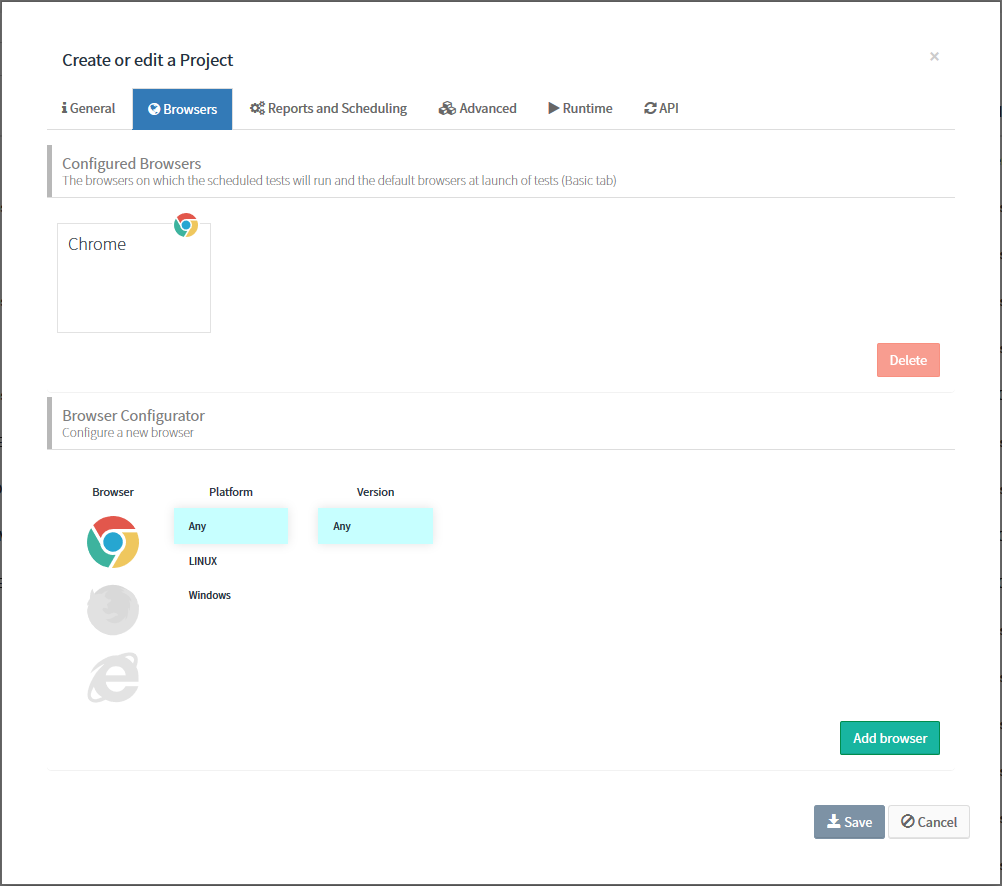

On the Browsers tab, choose the browsers on which the scheduled tests will run and the default browsers at launch of tests (Basic tab)

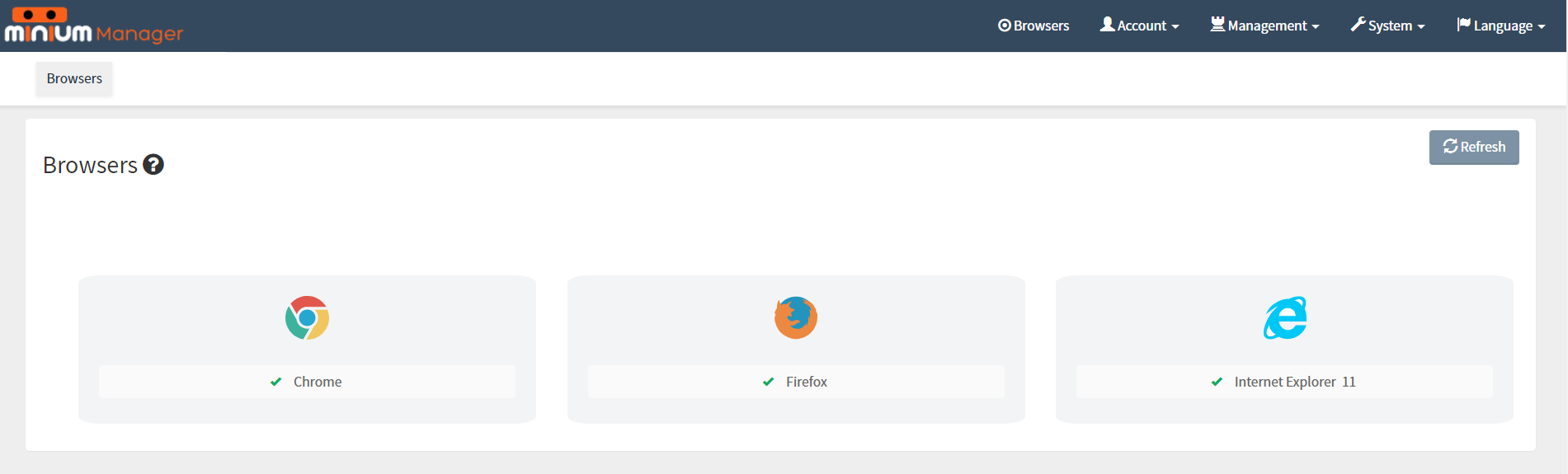

To configure the browsers, click Browser Configurator to expand the available browsers and select a browser (and the properties). After, click Add browser.

If you want to remove a configured browser, select the browser configuration (below the configured browsers) and click "Delete".

Note:

The Browsers tab is not available for the monitoring and cookie projects.

On the Reports and Scheduling tab, fill the following fields:

Recipients

Set email addresses to receive a report of execution for the project. If you only want to receive the report of the executions that contains failed tests, check the option "Send only when there are test failures".

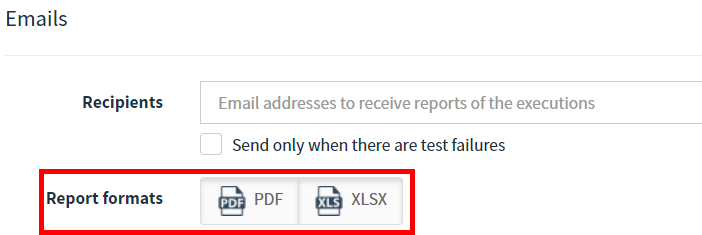

Report formats

Set the format(s) that the report of execution will be sent to the email.

Scheduler

Set the schedule you want to execute the project and send the report of the execution. If you choose the option Custom you can set a custom schedule.

Scheduler Custom Configurations

Set the schedule you want to execute the project and send the report of the execution with different levels of granularity.

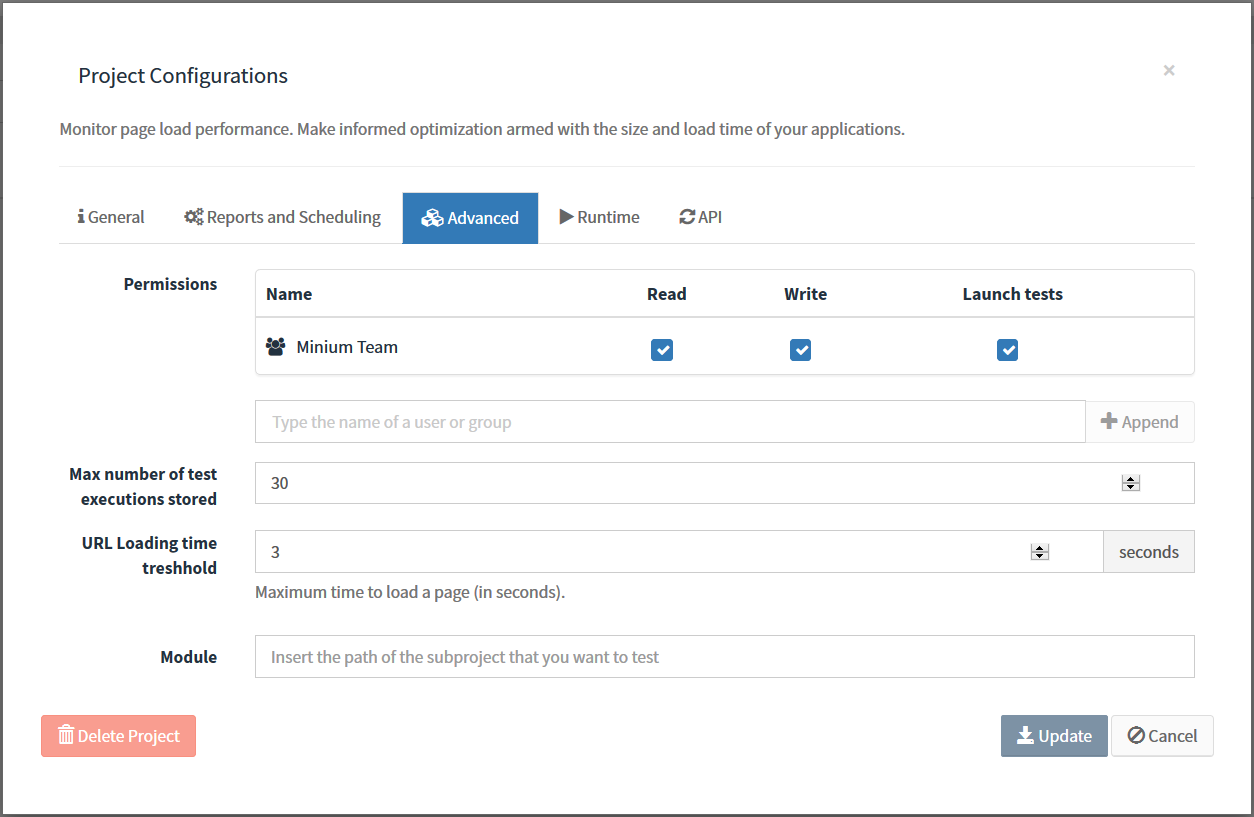

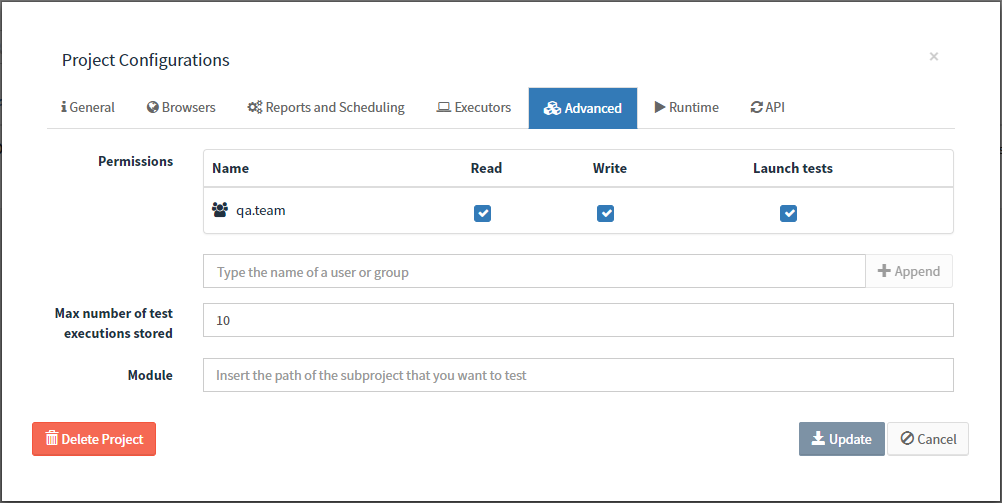

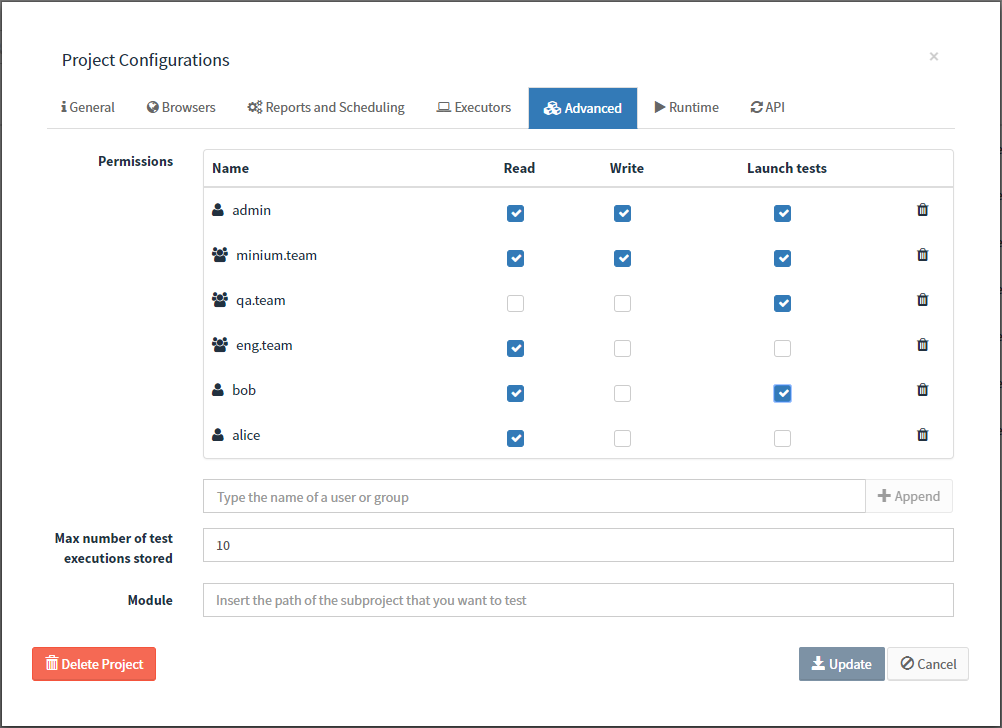

On the Advanced tab, fill the following fields:

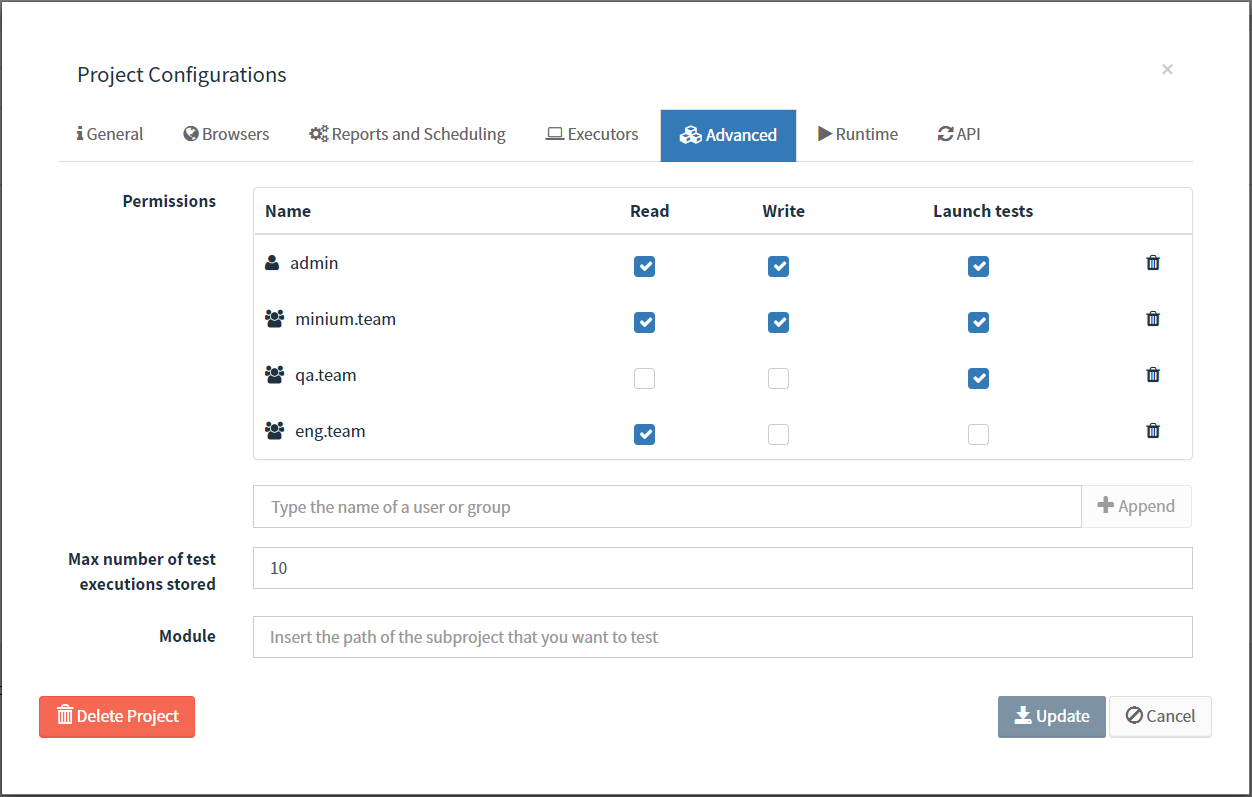

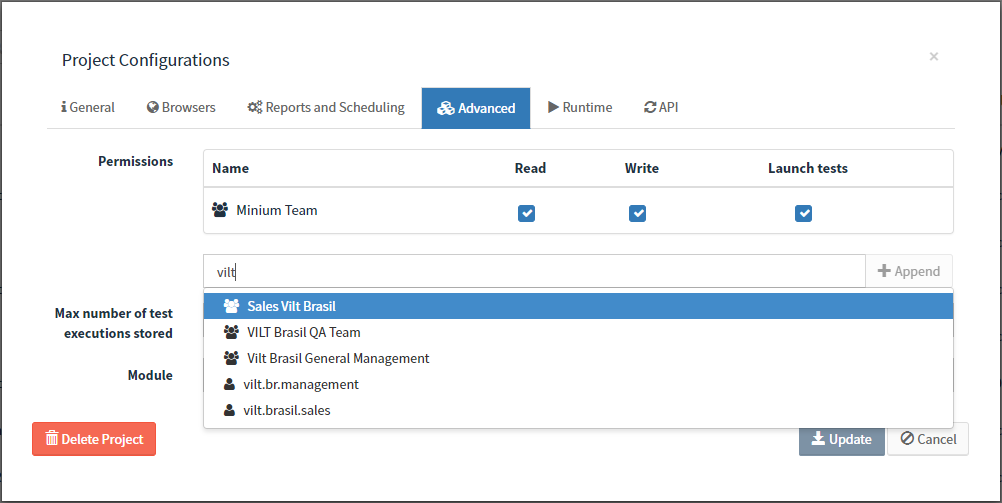

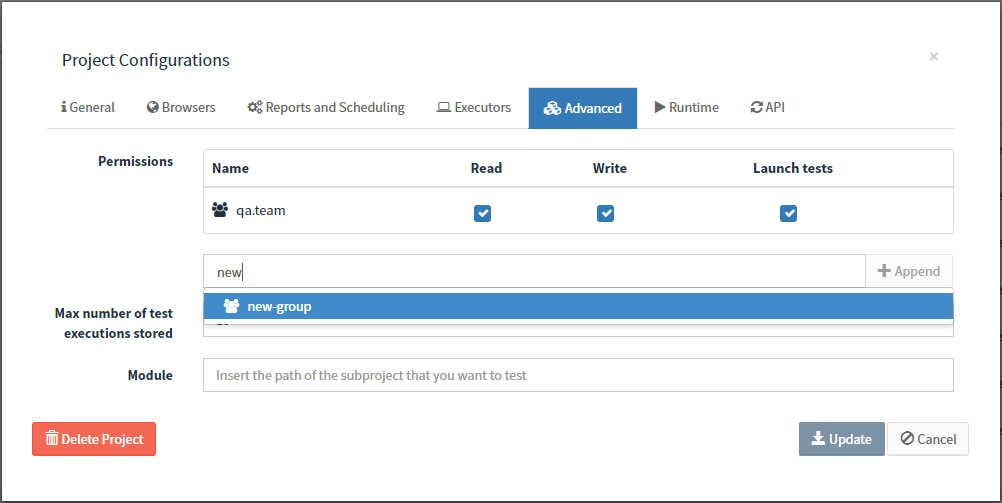

Permissions

Add and personalize the level of access that assigns to each user or group.

Max number of test executions stored

Set the max number of executions to be stored at Minium Manager.

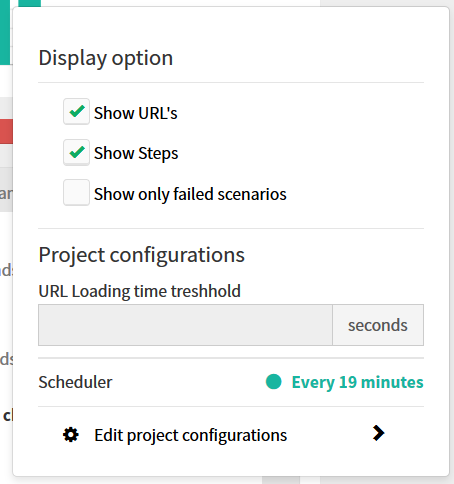

URL Loading time treshhold

Maximum time to load a page (in seconds) to warning the user at the executions page. Available only to Monitoring projects

Module

The path to the folder where the features are in the repository (e.g minium-developer-e2e-tests).

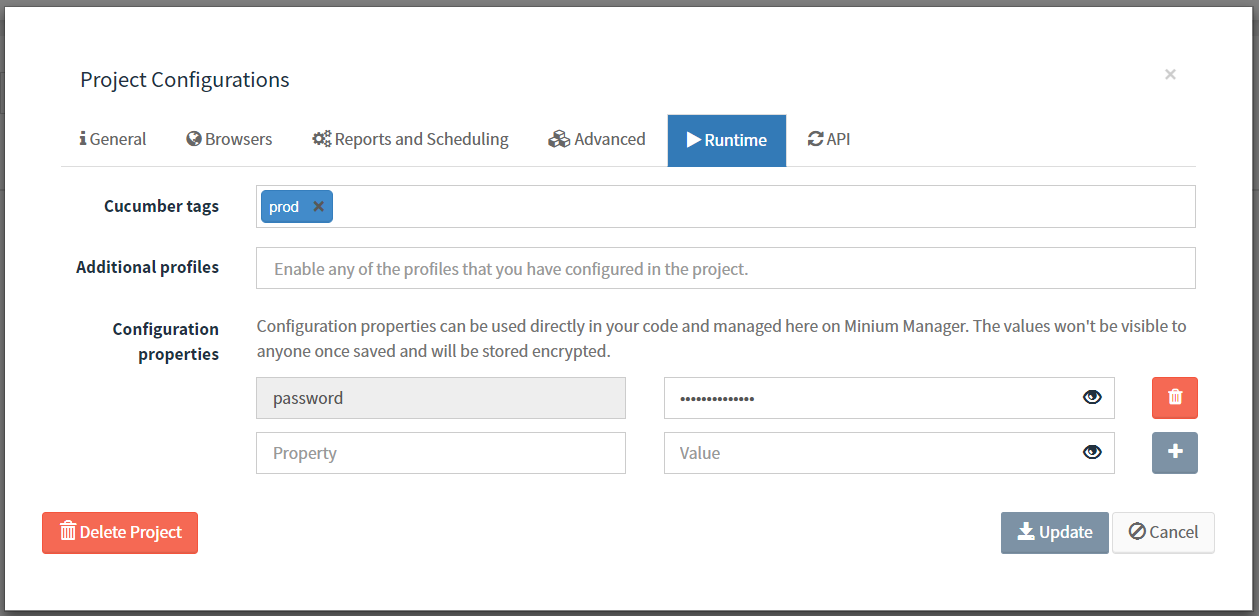

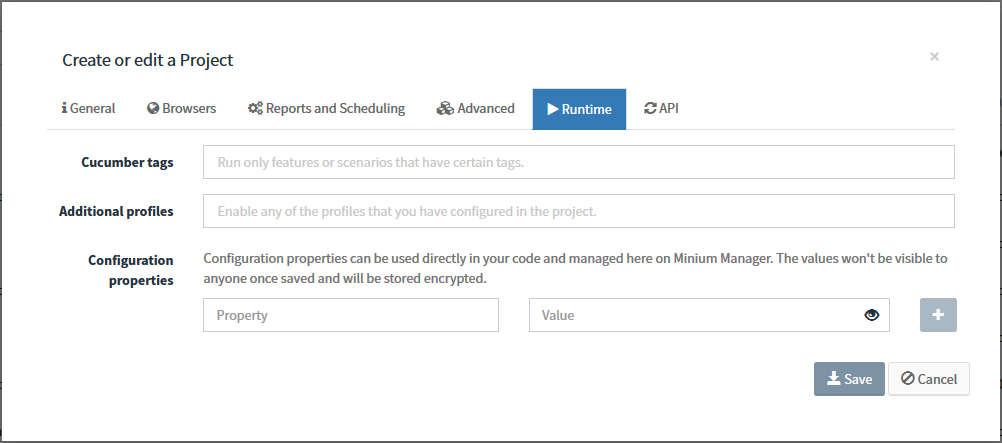

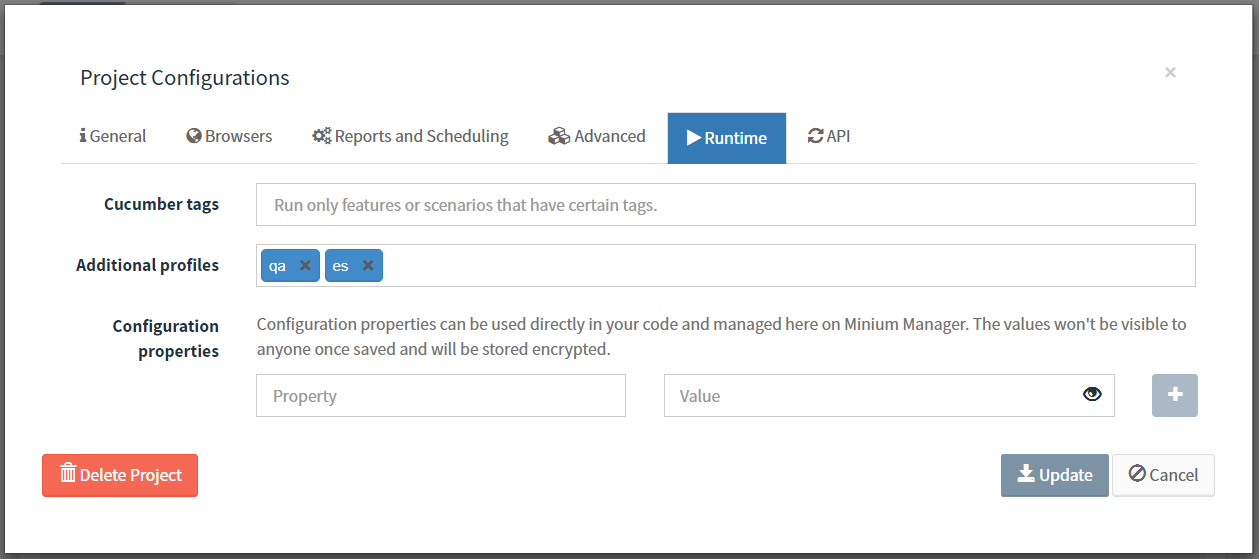

On the Runtime tab, fill the following fields:

Cucumber tags

Use this option to tell Minium Manager that only run features or scenarios that have certain tags.

Additional Profiles

Enable any of the profiles that are configured in the ./config/application.yml project file. See Configuration profiles for more details.

Configuration properties

This configuration properties can be used directly in your code and managed here on Minium Manager. The values won’t be visible to anyone once saved and will be stored encrypted.

Cookie

For the Cookie Crawler project the Runtime tab is different:

Inject Cookie

The the cookies you want to inject at the crawl (e.g. cookie to accept the cookie warning)

Script to accept cookies

The script to accept the cookie warning (in puppeteer). This field is related to the field Accept Cookies at the General tab of the Cookie Crawler project. The default script accepts the cookie warning for https://www.caixabank.es.

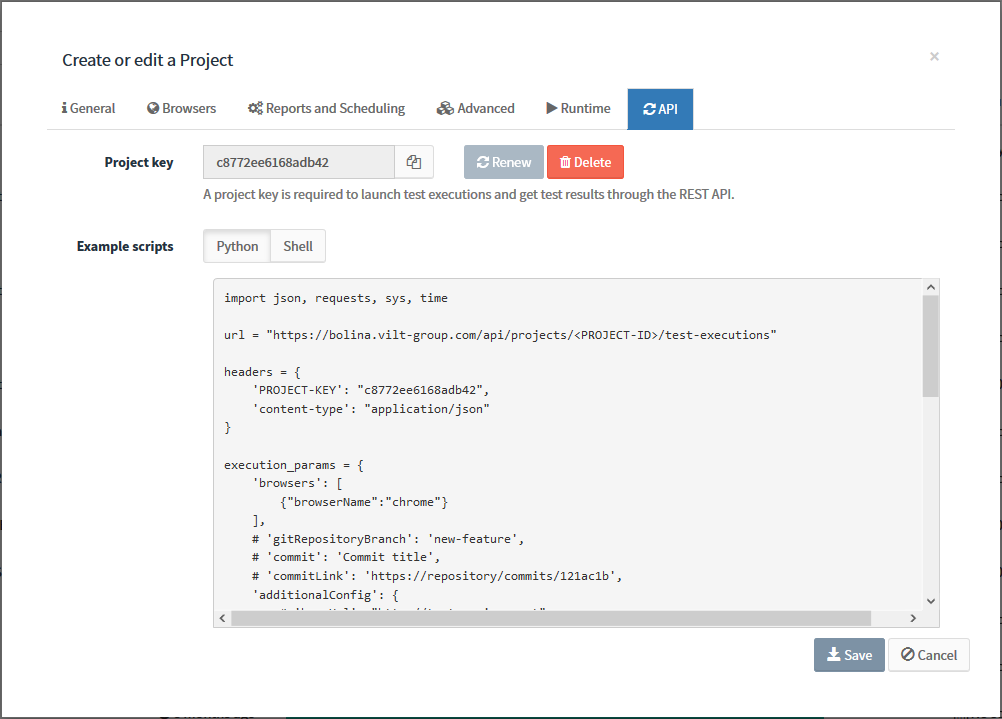

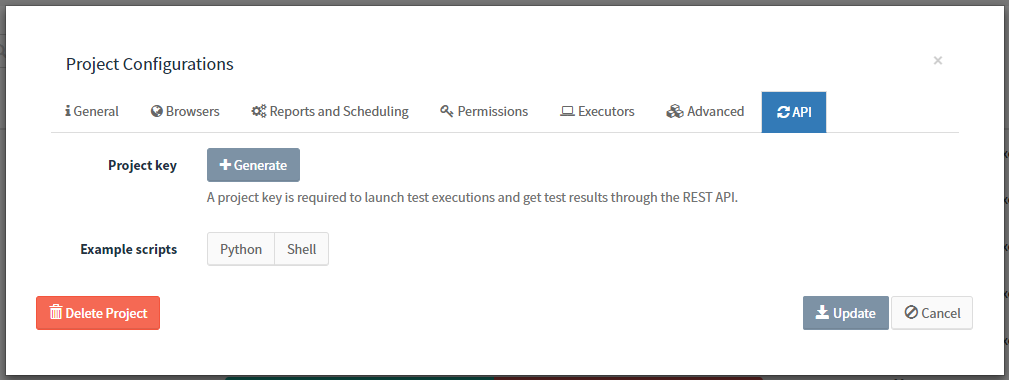

On the API tab, fill the following fields:

Project key

Generate a project key (required to launch test executions and get test results through the REST API).

Example scripts

Once the project has an API key, the scripts will be fulfilled with the project-specific data and ready to use. The first part of the script shows how to launch a test execution.

10.4. Project permissions

Manage the access levels of the users/groups in the projects. It is also possible to add and personalize the level of access that assigns to each user or group, per-project.

Note:

Write permissions is required to update the permissions of a project.

In order to change the project permission the first step is go to the project configuration and click on tab Permissions.

Add user or groups to the permission table. Below the permission table, start typing the name of the user or group desired. And then click on button Append.

Note:

It is possible to select more than one user or group.

After the users or groups was appended to the permissions table, define the permission for each entry appended and click Update to save the project configurations.

10.5. Organise projects by Labels or Groups

Labels were meant to be used only to filter projects in the Projects page providing a useful way to organize the projects.

10.5.1. Manage Labels

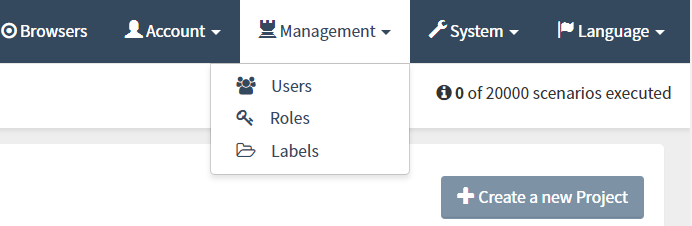

To manage the labels, open the Management menu and click on Labels:

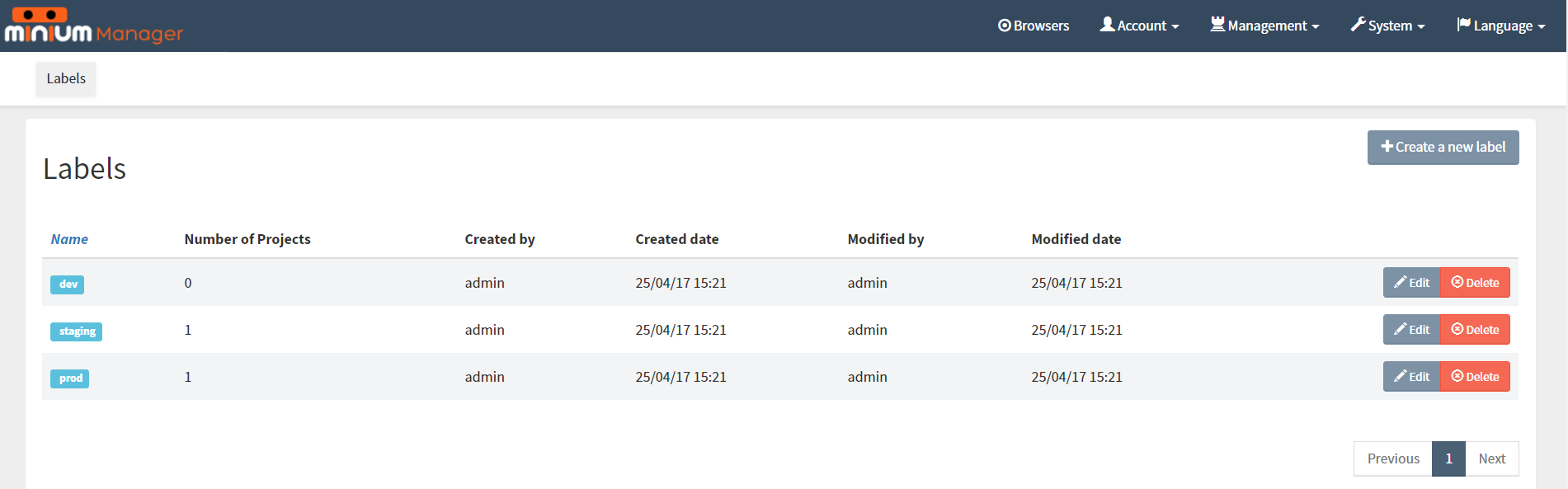

The Labels page is shown with all current labels. Edit, delete and create new ones if desired.

To create a new label, click on Create a new label. To delete or edit an existing label, click on Edit or Delete respectively.

10.5.2. Assign labels to the projects

To assign some labels to a project, go to the project configurations:

The Add button can be used to create new labels if needed.

10.5.3. Manage groups

Groups are intended to organize projects at a higher level and to perform changes in several projects at a time.

Manage groups using LDAP authentication

If Minium Manager is using a LDAP to manage the users, the groups are configured through the LDAP.

In the project configuration, search for groups. Below the permission table, start typing the name of the user or group. This will perform a search into the LDAP directory.

Manage groups without LDAP authentication

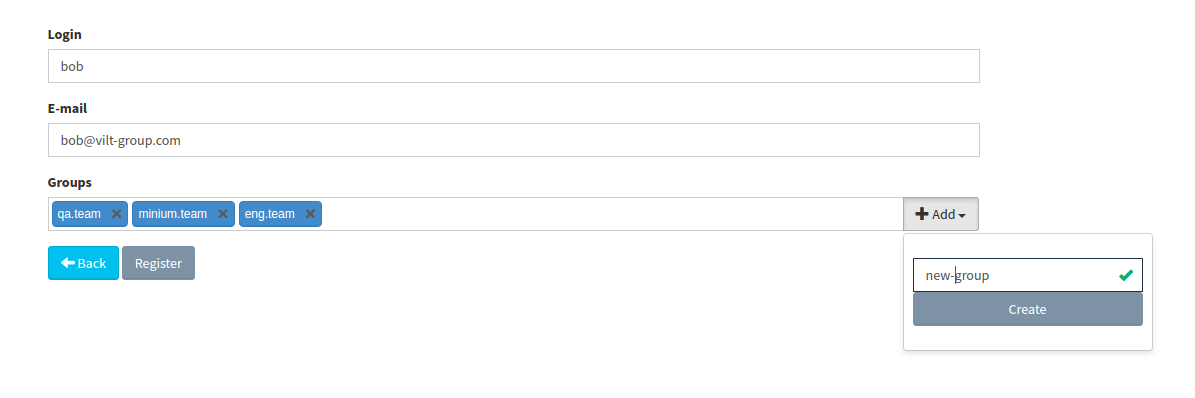

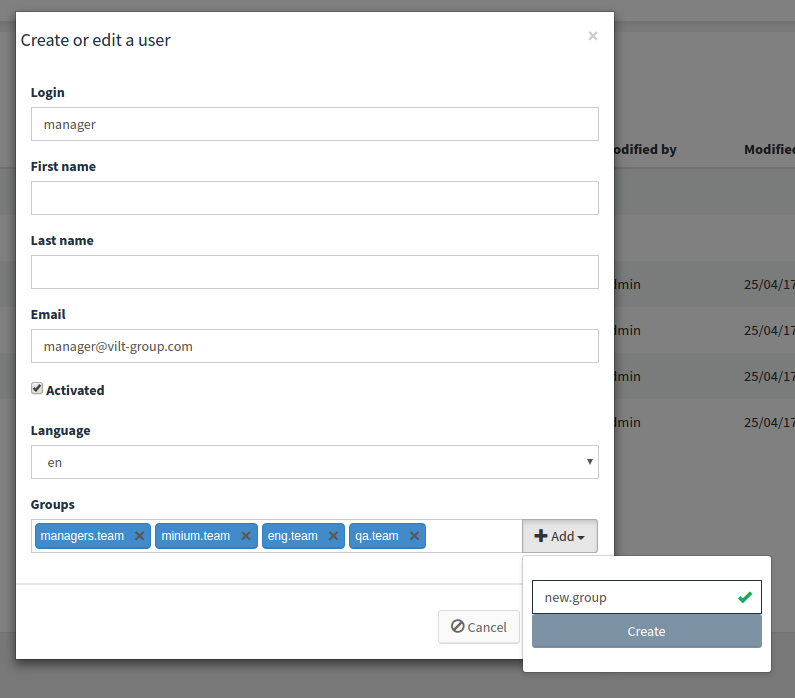

If Minium Manager is not using LDAP authentication, create new groups through the user management UI.

Note:

Only the users with Admin privileges are allowed to create groups.

If desired add permissions to the group recently created in the project configuration. Below the permission table, start typing the name of the group created.

10.5.4. Organise Projects

Using groups and labels to organise the projects selecting a group and labels from the sidebar.

Select one group at a time, but select multiple labels and combine both.

In the case of the figure above, notice that the group qa.team is selected and two labels are also selected (dev and staging). With this filters applied, exists one project shown in the project list.

This means that the one project belong to the group qa.team (see it in the figure below).

And the project have either the label dev or staging associated with it in the project configuration (as shown in the figure below).

Select a group or one or more label, like shown in the figure below. In this specific case, are selected only the label prod, without selecting any group. It means that all the projects in the list have the label prod associated.

Clean project filters

By clicking on the button View all, it will remove all the selected filter.

10.6. Configuration profiles

Configuration profiles can be defined on the config/application.yml of a project and used to load configuration properties that vary based on the environment being tested. Such configuration could be for example the URL of the application or the language:

# default values
minium:
  config:
    baseUrl: http://localhost
    language: English
---
spring.profiles: qa
minium:
  config:
    baseUrl: http://staging
---
spring.profiles: es
minium:
  config:
    language: Spanish

These configuration properties can then be used on the step definitions like this:

When(/^I go to the homepage"$/, function() {
  browser.get(config.baseUrl);
  $(".dropdown").withText("Language").click();
  $(".dropdown a").withText(config.language).click();
});

Then to run test executions with the configuration properties of a profile, go to Project Configurations and add it to Additional profiles:

10.7. Secret configuration properties

Sensitive configuration properties that cannot be included on the repository of the tests can be safely stored on Minium Manager. They can be used just like the configuration properties defined on the config/application.yml file of the project. As an example, consider that some tests need to be executed against a production environment which requires a password that cannot be exposed on the code. In that case, only the password to be used on the test environment would be defined on the config/application.yml file:

minium:
  config:
    baseUrl: http://staging
    username: test
    password: minium

---

spring:
  profiles: prod

minium:
  config:
    baseUrl: https://production
    username: admin

Which would be accessible through the config.password during the tests:

When(/^I login"$/, function() {
  browser.get(config.baseUrl);
  $(":text").fill(config.username);
  $(":password").fill(config.password);
  $(":submit").click();
});

The password to be used on the production environment would then be defined on the Project Configurations:

10.8. Delete a project

To delete a project, go to the project configurations and click on the button Delete Project, at the bottom-left corner:

11. Check the available browsers

To check the available browsers, click on Browsers, at the navigation bar.

In the figure above, we only have one provider available, but we can have two or more providers configured (e.g. "BrowserStack" and/or "Selenium Grid Extras"). The provider configured has the browsers Chrome, Firefox and Internet Explorer available.

This means that with this environment is able to run the tests in Chrome, Firefox and Internet Explorer at the provider configured.

12. Project Statistics

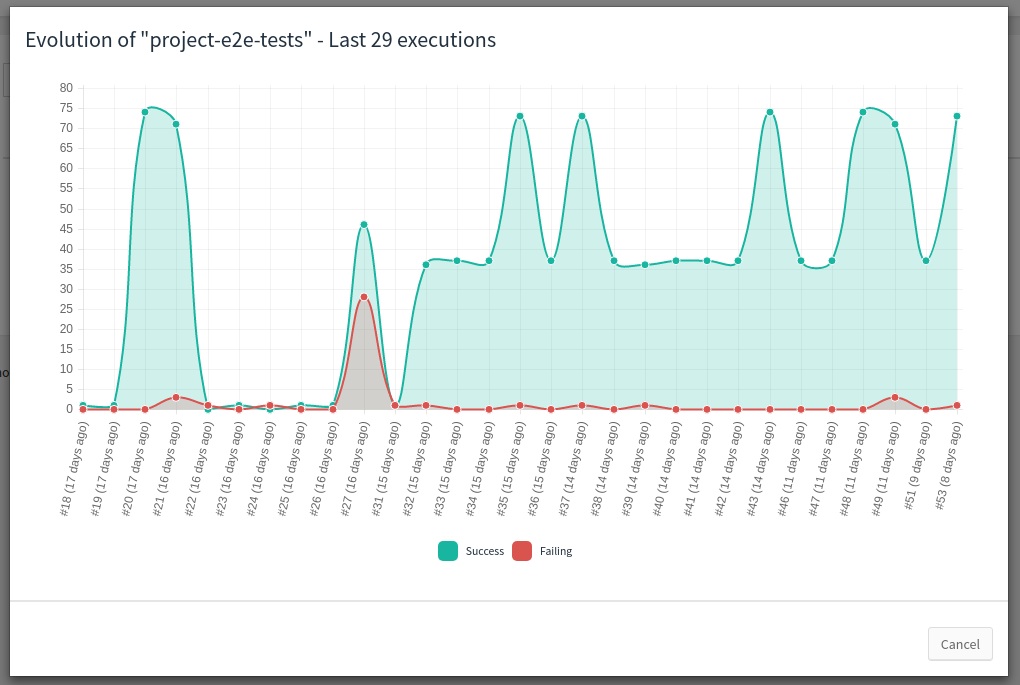

Evolution chart to the test executions of a project.

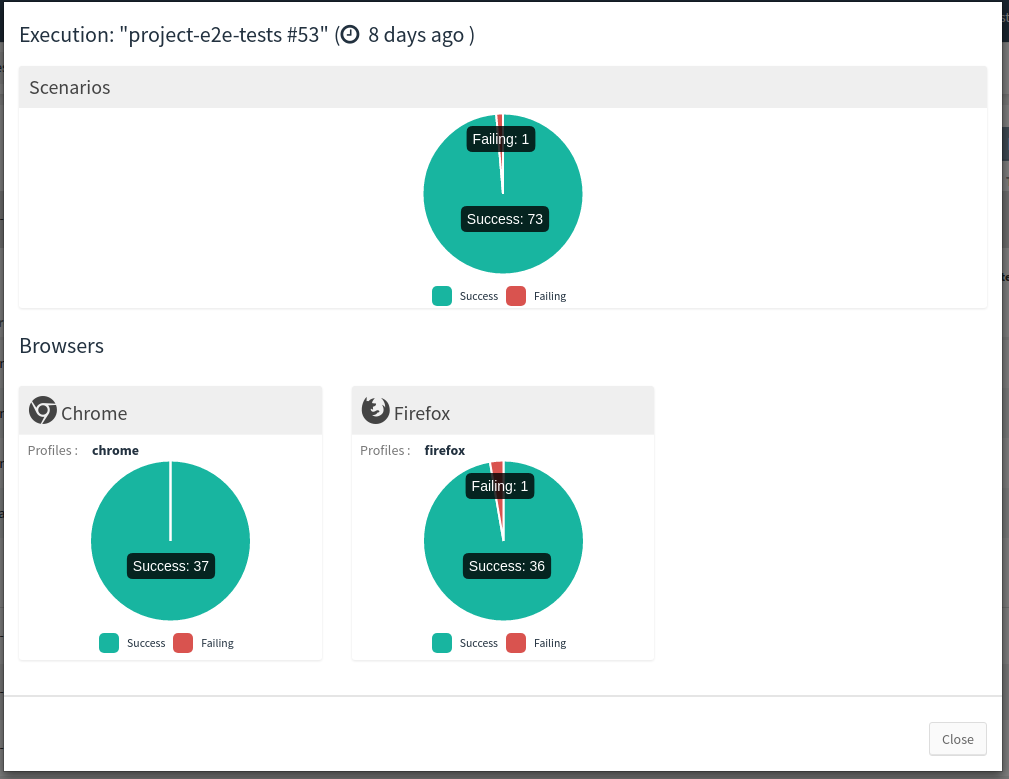

Statistics for a single execution.

13. Test executions

13.1. Launch test executions

A test execution will execute the tests present in a project on one or more different browsers. There are alternative ways for launching test executions.

13.1.1. Launch a test execution manually

On the homepage or the page of a project, click on button Launch test, which opens a modal for selecting the browsers.

Select the desired browsers by clicking on them. If needed, click on the Advanced tab to configure a new one. To configure a browser, click on the corresponding icon and choose its properties. Then, click on Add browser.

The new browser is now available to be selected on the Basic tab.

After selecting all the browsers, click on Launch Test Execution.

Note:

At click on button Launch test, the Monitoring project don’t open a modal for selecting the browsers. It launchs a test immediately.

Multiple Providers

With multiple providers, the Launch modal presents the provider configured for the project.

13.1.2. Schedule test executions

Go the configurations of a project and open the Browsers tab to see the currently configured browsers.

Click on Browser Configurator and add more browsers if needed.

To schedule test executions on the configured browsers, switch to the Reports and Scheduling tab.

Multiple Providers

With multiple providers, the Browsers tab has an extra field to configure the default provider.

Note:

This configuration is not available at the Monitoring projects.

13.1.3. REST API

Minium Manager provides a REST API through which it is possible to launch test executions and get test results. In order to use it, an API key is required. API keys are specific of a project. To generate a key, go to the API tab on the configurations of a project and click on the Generate button.

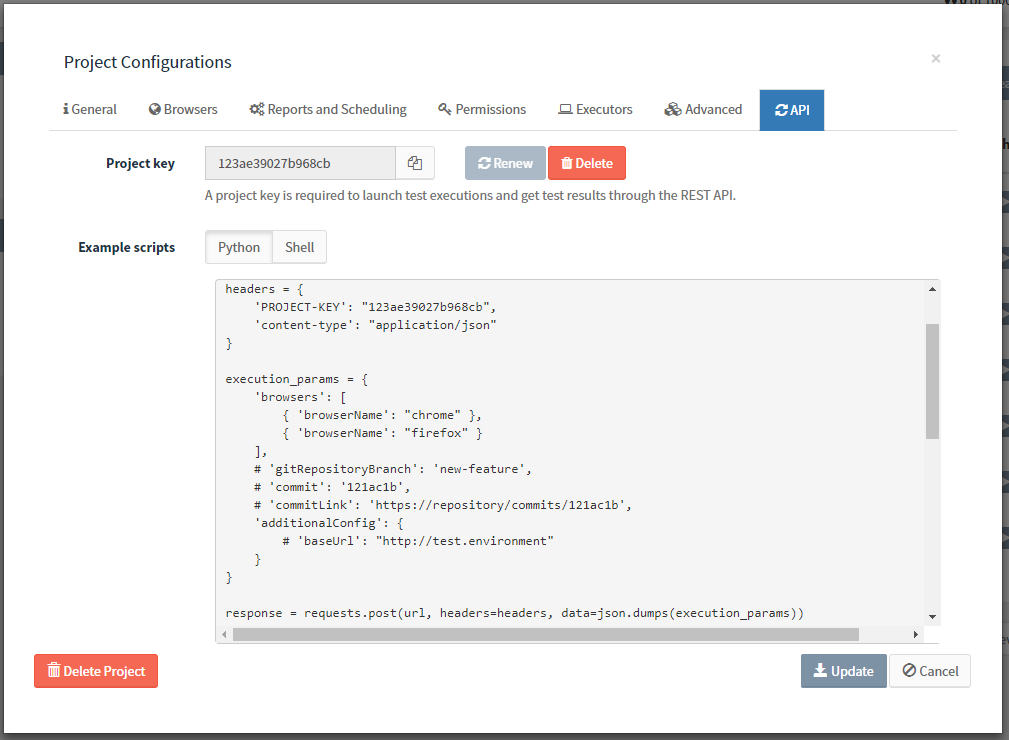

Also on the API tab are some example scripts. Once the project has an API key, the scripts will be fulfilled with the project-specific data and ready to use. The first part of the script shows how to launch a test execution.

A test execution can be launched by issuing a POST request to api/projects/<PROJECT-ID>/test-executions containing the PROJECT-KEY header set to the project key and the content-type header set to application/json. The execution parameters are sent in JSON on the request body:

browsers: list containing the capabilities of the browsers. Only the browserName is mandatory.
additionalConfig (optional): configuration properties to be merged with the ones on the application.yml file of the project. Properties already defined on the application.yml file are overridden.
gitRepositoryBranch (optional): branch of the repository of the tests.
commit (optional): the corresponding commit of the system under test, to be then included on the report of the execution.
commitLink (optional): link to directly access the commit from Minium Manager.

To follow the progress of the execution until it finishes, poll the URL returned on the Location header of the response to the POST request.

url = response.headers['location']
response = requests.get(url, headers=headers)
while response.status_code == 404:
    time.sleep(5)
    response = requests.get(url, headers=headers)
if not response.ok: sys.exit(response.text)

execution = response.json()
while execution['state'] != "FINISHED":
    time.sleep(15)
    execution = requests.get(url, headers=headers).json()

While the tests are running, the response will be a JSON object containing the state field set to RUNNING, the name of the current browser and the corresponding progress in percentage, number of passed/failed and last finished feature/scenario. Example:

{
  "state": "RUNNING",
  "browser": "chrome",
  "progressInPercentage": 18,
  "failingScenariosCount": 1,
  "passingScenariosCount": 5,
  "feature": "Login",
  "scenario": "Successful login"
}

Once the execution finishes, the response will have state FINISHED, the global results and the number of passed/failed scenarios for each browser. Example:

{
  "state": "FINISHED",
  "globalResults": {
    "totalScenarios": 20,
    "percentageOfPassingScenarios": 95,
    "passingScenarios": 19,
    "failingScenarios": 1
  },
  "browserResults": [
    {
      "browser": {
        "browserName": "chrome"
      },
      "passedScenarios": 10,
      "failedScenarios": 0
    },
    {
      "browser": {
        "browserName": "firefox"
      },
      "passedScenarios": 9,
      "failedScenarios": 1
    }
  ]
}

13.2. Follow the progress of a test execution

After launching a test execution, follow the progress in the project page. See the browser where the test is executing, the percentage, number of executed tests, the elapsed time and the test that is currently executing. Also, visualize the test be executed in the browser.

14. Monitor test results

In a project page, all the launched executions are showed:

For each execution it can be seen:

result of the execution
name
duration of execution
percentage of passed and failing scenarios
statistics of the execution (shown when the mouse is over the execution)
browser where the execution ran
launch time
number of scenarios of the execution

When expands a test execution a list of executed features and their results can be seen:

For the execution expanded it can be seen:

features tested
the results detailed for each feature (with filters)
videos of the execution
download the report of the executions (MS excel and PDF)
remove execution

Click at "Recorded executions by browser" to see the videos of the recorded executions:

For the videos (at execution) it can be seen:

videos for the browsers tested
features to navigate through the video
cue points when the feature starts on the video

Monitoring project

The result of an execution of a Monitoring project is presented at the execution page:

At execution page, we can see the time of each URL took to load. Also we can see the URL status and the time that took to execute the scenario.

Display options

The information at the execution page can be filtered to show/hide some details.

To open the Display options click at Settings:

The display options allow us to:

Show/Hide the URL’s
Show/Hide the steps
Show only the failed scenarios
Consult the URL loading time threshold (This property is configured at the project configurations at the advanced tab and warns the user (at the execution page) when the loading time of an URL is higher than the loading time threshold)
Consult the scheduler (The scheduled is configured at the project configurations at the reports and scheduling tab)

Cookie project

The Cookie project is divided in two projects: Cookie Report project and Cookie Crawler project.

Cookie Report project

The result of an execution of a Cookie Report project is presented at the execution page:

At execution page, we can see at the end of each scenario a table (with a filter) of all browser cookies at the end of a scenario.

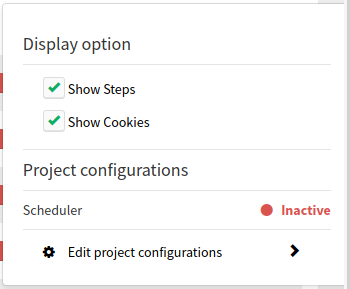

Display options

The information at the execution page can be filtered to show/hide some details.

To open the Display options click at Settings:

The display options allow us to:

Show/Hide the steps
Show/Hide the cookies table
Consult the scheduler (The scheduled is configured at the project configurations at the reports and scheduling tab)

Cookie Crawler project

The Cookie Crawler project generates a report of the all browser cookies found during the crawl of the websites.

For each execution it can be seen:

URL crawler - The URL(s) that was crawled
Filters - Domains filtered
Cookies Accepted - Tells whether the cookie warning was accepted or not
Cookies to validate - Cookies validated during the crawl (click at the eye to see the validations in a table)
Max Depth - Depth of the crawl
Validation failed - The cookies not found at the report
Total Cookies (Distinct by name) - Number of different cookies found at the report distinct by name
Total cookies - Number of different cookies found at the report
Total URLs - Number of different URLs crawled

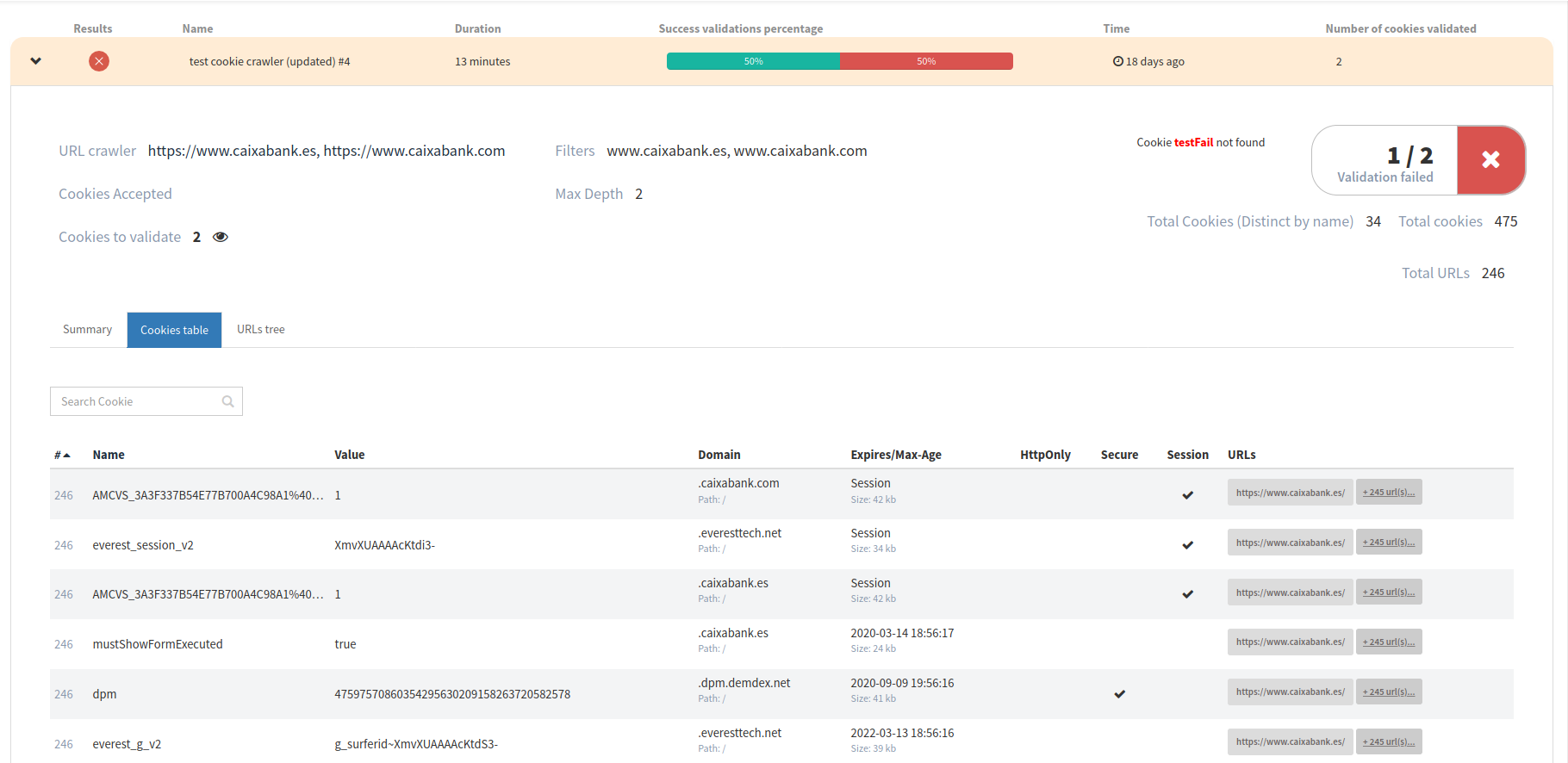

There are several tabs to present execution information: Summary, Cookie table and URLs tree.

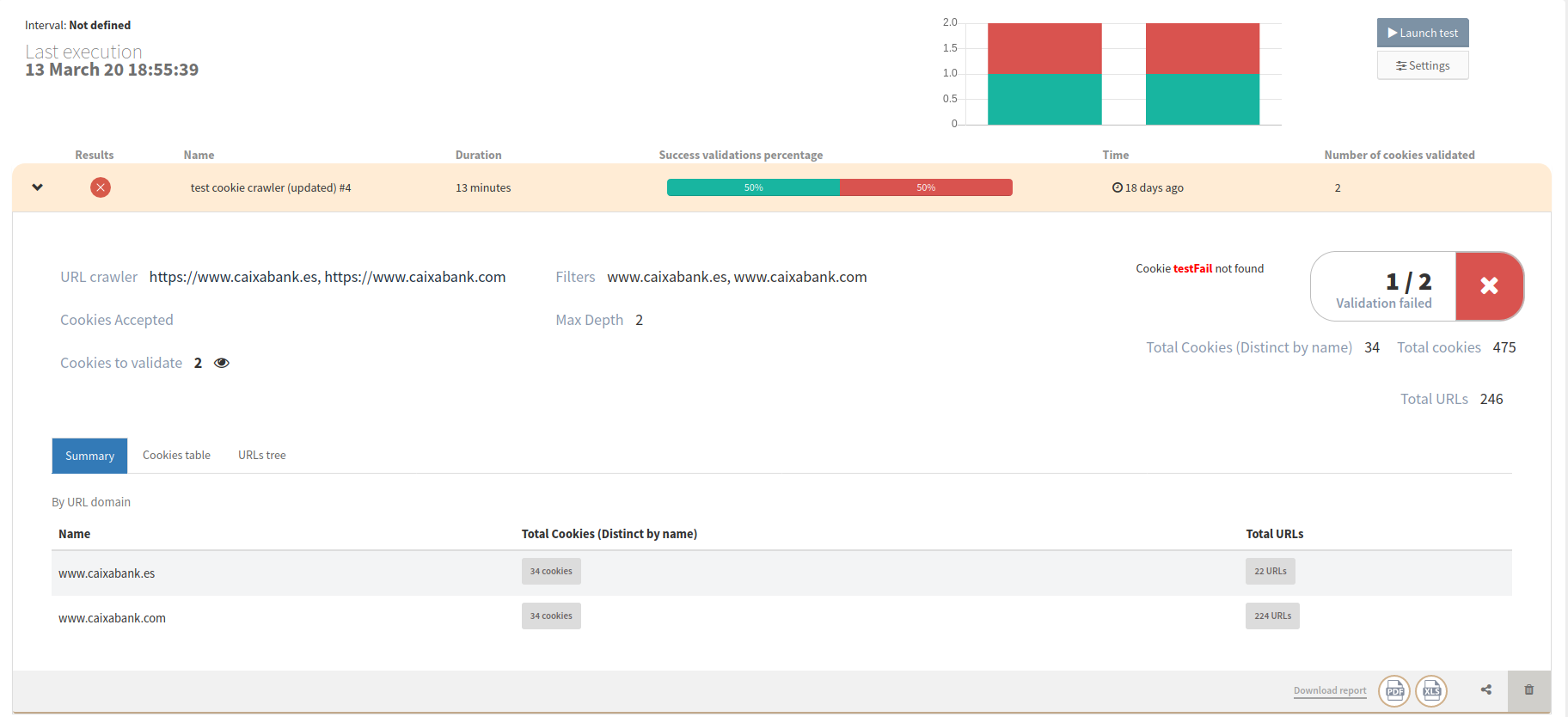

Summary:

This table presents the information By URL domain.

For the screenshot above we can see that for the domain www.caixabank.es, we found 34 cookies (Distinct by name) in a total of 22 URLs.

Cookie table:

This table presents the all the cookies information retrieved at the crawler for the URL(s) crawled and the URL(s) where the cookie was found.

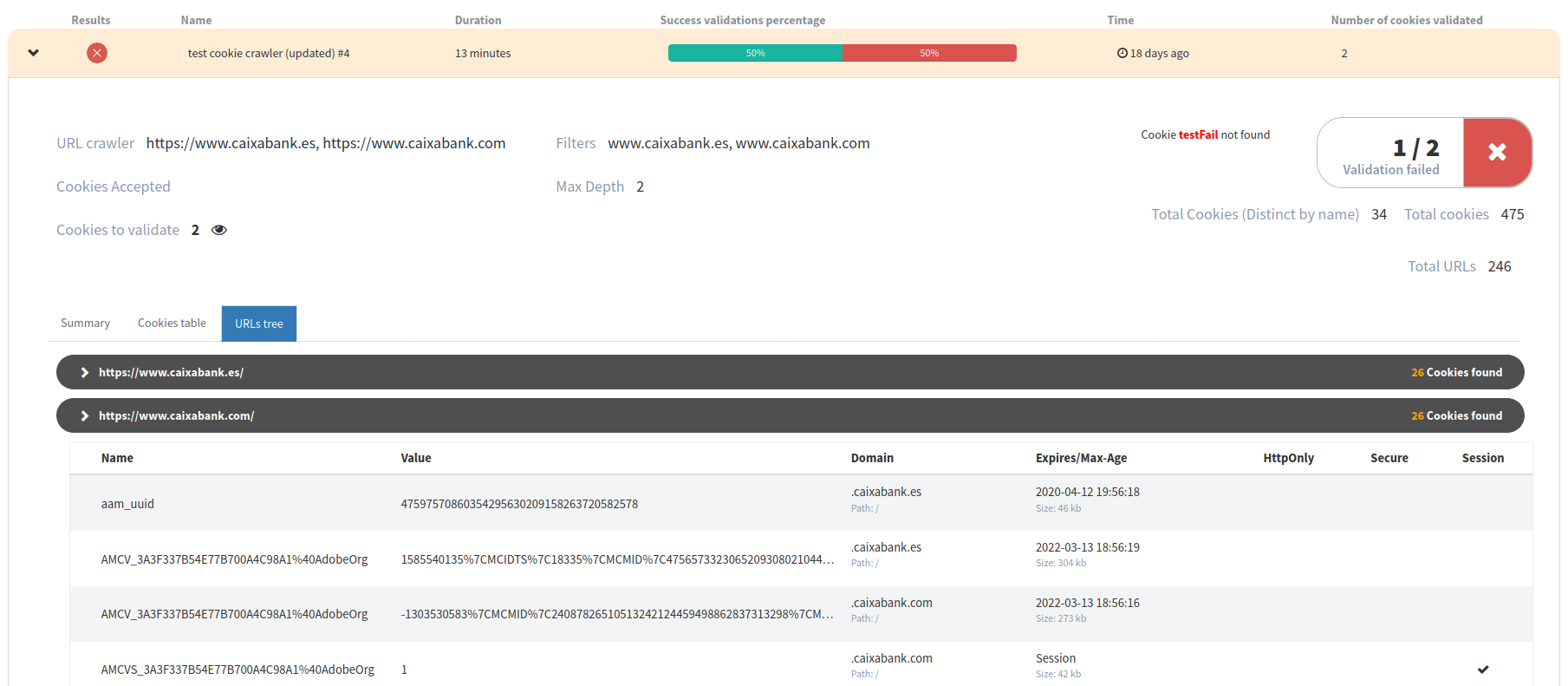

URLs tree:

This view shows the URLs tree gerated by the crawl, with the cookies found for each URL.

Display options

The information at the execution page can be filtered to show/hide some details.

To open the Display options click at Settings:

The display options allow us to:

Show new cookies only (Tree view) - Only shows the new cookies at the URLs tree in the child levels. The defaul is show every cookies (even the repeated ones).
Show all cookie information (Table view) - Shows all the cookie information (this is the fields domain, Expires/Max-Age, HttpOnly, Secure and Session). The defaul is to show the Name, Value and URLs aggregated.
Max Depth - The Max depth configurated at project configurations
Accept Cookies - Shows if the accept cookies are checked or not at project configurations
Number of Validation(s) - Shows the number of validations configurated at project configurations
Consult the scheduler (The scheduled is configured at the project configurations at the reports and scheduling tab)

On the feature (for web application testing) view check the scenarios of this particular feature:

When expands a scenario see all the steps and results. Is easily switch to the results of another browser. More functionalities:

Screenshots - Minium Manager provides screenshots of the application at the moment of the failure. So it possible see the state of the application in the moment of failure.
Error messages
Links to the feature or step file for each step.
Evolution chart for the projects
Video with the cue points when the scenarios start

Monitoring project

Feature page of a Monitoring project scenario:

At the feature page, we can see more details about the page load performance:

The url loaded
The loading time with the times of the Backend Performance, Frontend Performance and DOM Content Loading
The number of requests
The Javascript Errors (if any)
The URL status code

Cookie project

Feature page of a Cookie Report project scenario:

We can see at the end of each scenario a table (with a filter) of all browser cookies.

Note:

The Feature overview page is not available to the Cookie Crawler project.

14.1. Feature overview

Overview of all the features, by clicking on the button View Feature.

View the result of each step in each browser that the feature ran.

14.2. Reports

Receive the reports of each test execution, in PDF and/or Excel formats, via email. Alternatively, download them directly in Minium Manager. To choose the formats to receive via email, go to the configurations of the project and expand the advanced configurations:

To download a report, expand the results of a test execution and click in Download report:

14.3. Daily Reports

The daily report is a custom report with your favorite projects that will be sent to your email with the status of the last completed execution in the last 24 hours.

Before being able to configure a daily report, first you need to set the email configured at Account > Settings.

Note:

If Minium Manager is using LDAP, please contact your administrator to set your email at LDAP.

To create a daily report configuration, open the Account menu and click on Daily Reports.

Choose the projects to be included in your custom daily report:

After, schedule the time that the email will be sent, with a summary of the past 24h.

Finally, click on the button "Create/Update Daily Report Configuration" to create/update the daily reports:

To delete the configuration, click on the button "Delete Daily Report Configuration".

15. Roles

Roles allows grant different privileges to the users and the groups. The privileges associated with each role are described in the table below:

User

Manager

Administrator

View projects

Launch test executions

Configure projects

Create projects

Manage project labels

Manage users

Manage roles

15.1. Assign roles

To change the role of a user or group, navigate to Management > Roles at the navigation bar and:

Introduce the name of the user or group in the search bar.
Select a role.
Click on Save button.

15.2. License information

At the top right of the project list page exists the license information label, that gives the number of executed scenarios in this month and the total of scenarios per month that to the current license

By clicking on the license information label, it will open a modal with more detailed information about one license.

Minium Recorder User Guide

Minium Recorder has been developed to ease and accelerate the creation of Minium tests. With the Minium Recorder, is no longer needed to write all the code for the step definitions by hand. Simply tell to the Minium Recorder to start recording the interactions with the browser, perform the actions that correspond to the defined step and an automation script is immediately available in Minium Developer.

But what really makes Minium Recorder different in relation to other automation script recorders is that, for each element that interacts, Minium Recorder will not generate just one CSS selector. Instead, is possible choose among a list of alternative expressions for each element that take advantage of the great Minium filtering methods that are used like for example withLabel, below, rightOf, etc, to build more readable and resilient expressions.

16. Configure Minium Developer

Minium Recorder is already configured at Minium Developer Prime, but you can configure an existing Minium Recorder.

To configure Minium Developer with the Minium Recorder extension, first you need to download the Minium Recorder extension.

Navigate to the folder where Minium Developer is installed, create a folder named "extensions", copy the Minium Recorder extension file to the new folder and rename the file to "minium-recorder.crx".

After, edit the config/application-{windows,linux,macos}.yml file in order to add the following configuration (at the chrome webdriver):

minium:
  developer:
    webdrivers:
      - name: chrome
        ...
        chromeOptions:
          extensions:
            - ${app.home:.}/extensions/minium-recorder.crx
          preferences:
            devtools:
              preferences:
                panel-tabOrder: "{\"chrome-extension://ggefeclafoeoejognlebilidgmgdglogMiniumRecorder\":10,\"elements\":20,\"console\":30,\"sources\":40,\"network\":50,\"timeline\":60,\"heap_profiler\":70,\"resources\":80,\"security\":90,\"audits\":100}"

17. Launch Minium Recorder

Launch Minium Recorder through Minium Developer.

Open Minium Developer and add the following command to the editor:

browser.get("http://www.google.com/ncr")

This will load the google search engine website, when the instance of Chrome is launched.

To launch Minium Recorder, use the (Ctrl + Enter) shortcut or select Run > Launch Browser (1) and (2) at the top-right menu:

Select the Chrome browser (1), check if Minium Recorder is available (2) and click Created a new WebDriver (3):

A new instance of Chrome will be launched with the Minium Recorder extension installed. In the instance of Chrome, open the Developer tools by using the (F12) shortcut (use another shortcut) or select More Tools > Developer tools.

After the Developer tools of the instance Chrome is opened, select the Minium Recorder tab (1):

18. Start recording

To start recording, click on the following button:

From now on, every interaction performed with the browser will be recorded.

19. Record interactions

For every action performed on the browser, like clicking on an element or filling a text input field, Minium Recorder will automatically generate the corresponding code. If typed an URL in the address bar, Minium Recorder will also generate the code to load that URL.

To try other expressions, click on the expression and a list of alternative expressions will be displayed:

To select an expression, just click on it.

20. Stop recording

Click on the pause button to stop a recording.

21. Import the recorded script in Minium Developer

To import a script in Minium Developer, right-click on the editor area, where is intended to put the script, and choose the option Import recorded script:

VILT Minium Manager: Reference documentation

Summary

Quick start

1. Install and Run Minium Manager

2. Give it a try

Installation Guide

3. Supported Environments and Compatibility

3.1. OS

3.2. Databases

3.3. Java

3.4. Selenium Grid

3.4.1. Selenium Grid - WebDrivers

3.5. Application Servers

3.6. Supported Browsers

4. Minium Manager

4.1. Minium Manager Architecture

4.1.1. Machine 1

4.1.2. Machine 2

4.1.3. Node Configuration - Internet Explorer

4.1.4. Jenkins Agent

4.2. System Requirements

5. Installing Minium Manager

5.1. Database Configuration

5.1.1. MySQL

5.2. Selenium Grid Configuration

5.2.1. Move the Hub and the Node to another machine

Node Configuration

WebDrivers Configuration

Auto Restart Nodes

Windows Node

Additional browser capabilities

5.2.2. BrowserStack

5.2.3. Multiple providers

5.3. Standalone Installation

5.3.1. Start Minium Manager

5.4. Docker Installation

5.4.1. Start Minium Manager

5.5. TestLink

5.6. Add Jenkins Node

6. After Installing Minium Manager

6.1. License

6.1.1. Obtaining a Valid License

6.1.2. Configuring Minium Manager License

6.2. Logs

6.2.1. Minium Manager

Jenkins

6.2.2. Selenium Grid

6.3. E-mail

6.4. LDAP

6.5. Videos

6.6. Minium version auto-update

6.7. Error Message (Jenkins)

6.8. Monitoring

6.9. Executors

6.10. Additional WebDriver configurations

6.11. Integration with HP ALM

6.11.1. Encrypt password

6.12. Update Minium Manager

7. Troubleshooting Minium Manager

8. Uninstalling Minium Manager

8.1. Remove Databases

8.2. Remove Standalone Installation Files

8.3. Remove Docker Installation Files

User Guide

VILT Minium Manager: User Guide

9. Introduction

10. Projects

10.1. Monitoring

10.1.1. Check if the website is ok

10.1.2. Do a search on the website with refresh and check how long it took to load.

10.1.3. Click on a link and get the performance of the page

10.2. Cookie

10.3. Setup a project

10.4. Project permissions

10.5. Organise projects by Labels or Groups

10.5.1. Manage Labels

10.5.2. Assign labels to the projects

10.5.3. Manage groups

Manage groups using LDAP authentication

Manage groups without LDAP authentication
