1. Introduction

This document describes the user interface of the VILT - Minium Manager, version 2.0.

Minium Manager is a platform to manage, run and analyze end to end tests, designed to run tests across all possible combination of browsers and OS’s on a continuous integration fashion. It allows managers to control the quality of a project, providing detailed reports with useful information for failures with errors messages and screenshots.

2. Projects

Configure projects in Minium Manager, in order to run and analyze end to end tests. All projects need to have a repository (Git or SVN) associated, where the code is stored.

There are two type of projects: Web application testing and Monitoring.

The Web application testing project is a Minium project that test a website in the same way a human would.

The Monitoring project is a Minium project that are executed with high frequency (every 5, 10, 20 minutes), and can give us a report about the availability of a certain page and performance metrics, with the objective to check that the page are working as expected.

The development workflow for a Monitoring project in Minium Developer will be similar to the a web application testing project, providing an easy and quick way to write test. The configuration in Minium Manager is similar to other projects. The monitoring project does not have the browser configuration.

2.1. Monitoring

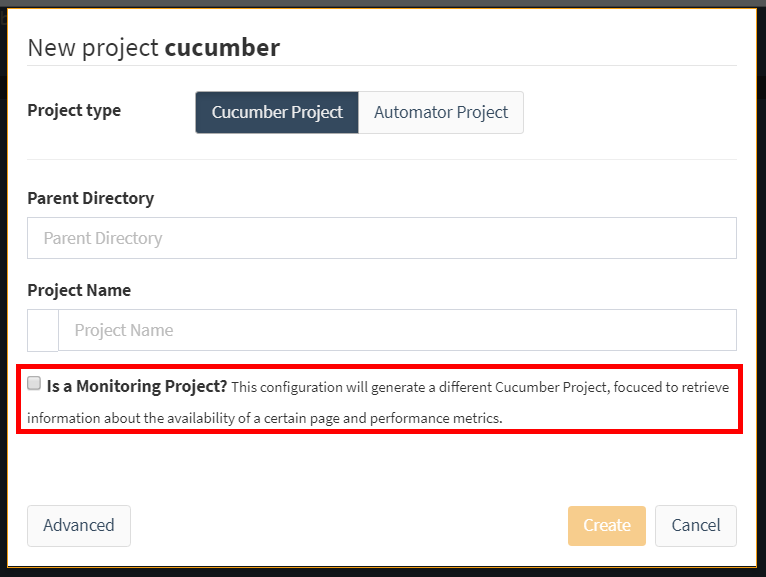

To start the development of a monitoring project, you need to check the checkbox Is a Monitoring Project? to generate the monitoring project:

Here are some examples of the development workflow in Minium Developer of the monitoring project:

2.1.1. Check if the website is ok

Use case: You want to test if the URL is ok and get the performance in the reports

Scenario:

Scenario: Check Blog La caixa
  When Check if website responds: "https://blog.caixabank.es/"

Step:

When(/^Check if website responds: "([^"]*)"$/, function(url) {
  browser.get(url);
});

For a monitoring project, the expression browser.get(url); retrieves the data related to page load performance, the URL status, the number of requests, the page size and javascript errors. This information will be presented at the Minium Manager report.

2.1.2. Do a search on the website with refresh and check how long it took to load.

Use case: You want to perform a search in the website (where’s there’s a refresh after the search) and check if the results appear and get the performance of the page.

Scenario:

Scenario: Search
    Given I'm at "https://www.caixabank.es/particular/home/particulares_es.html"
    When Search for "CaixaBank" and check the results

Steps:

When(/^I'm at "([^"]*)"$/, function(url) {
  browser.get(url);
});

When(/^Search for "([^"]*)" and check the results$/, function(search) {
  $("#cookies-accept-full a").click();
  $("#search-field").fill(search);
  $("#prebuscadorCabecera input[type='submit']").click();
  expect($(".search-result-block")).to.exist();
  scenario.write(browser.getPerformance());
});

The expression scenario.write(browser.getPerformance()); retrieves and store the data related to the last page load performance, the URL status, the number of requests, the page size and javascript errors. This information will be presented at the Minium Manager report.

2.1.3. Click on a link and get the performance of the page

When(/^I click on link with text "([^"]*)"$/, function(text) {
 $("a").withText(text).click();
 expect($(".page-title")).to.exist();
 scenario.write(browser.getPerformance());
});

2.2. Setup a project

To setup a project, click on the button New Project:

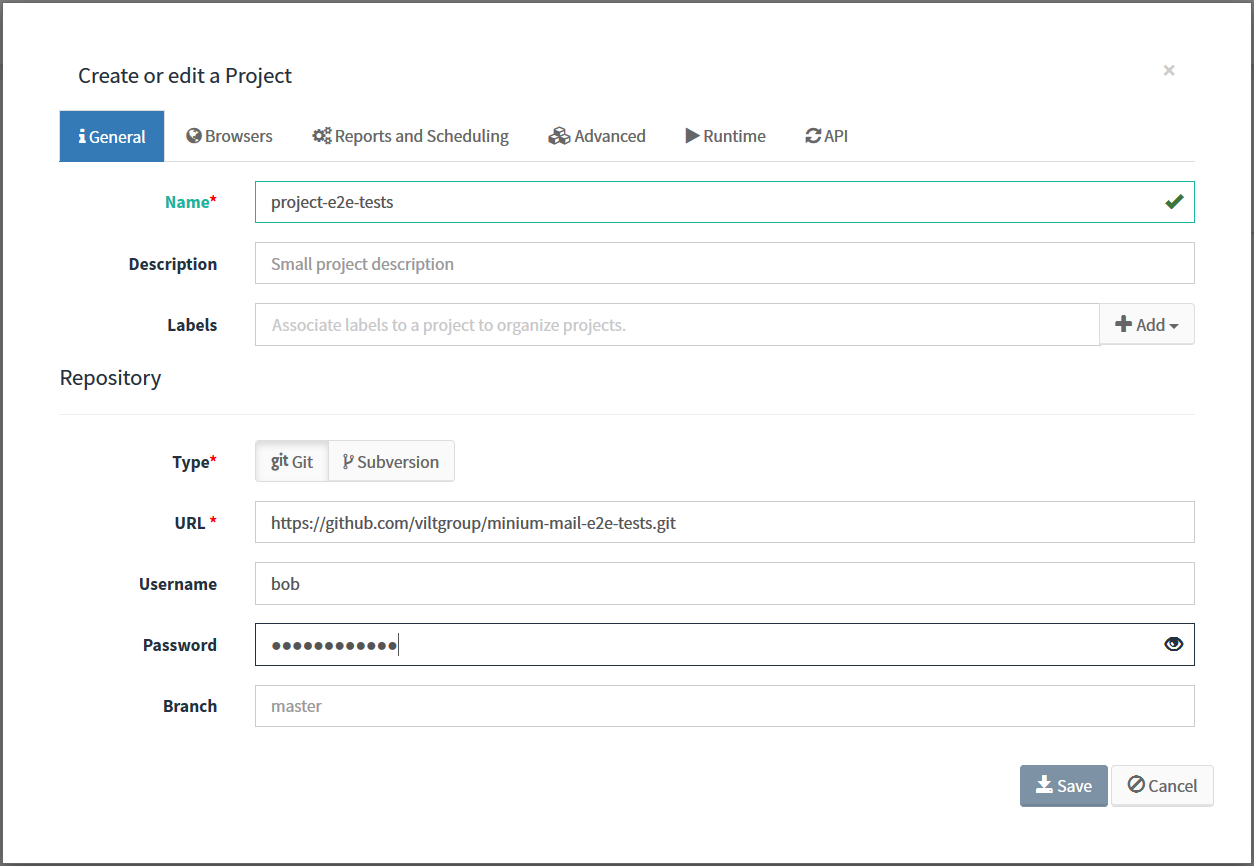

Then, fill the form:

On the General tab, fill the following fields:

Name

Display name of the project (e.g gmail-e2e-tests)

Description

Optionally provide a project description

Labels

Associated labels to a project in order to organize and filter projects.

Type

Type of SCM repository

Url

URL of the repository where the project with the features is stored. The following are examples of valid git URL’s (or a local file path):

https://github.com/github/git.git

//dolos/repos/gmail-e2e-tests

Username/Password

Credentials for authentication on the repository.

Branch

The name of the branch you want to execute (GIT only). The default value is master

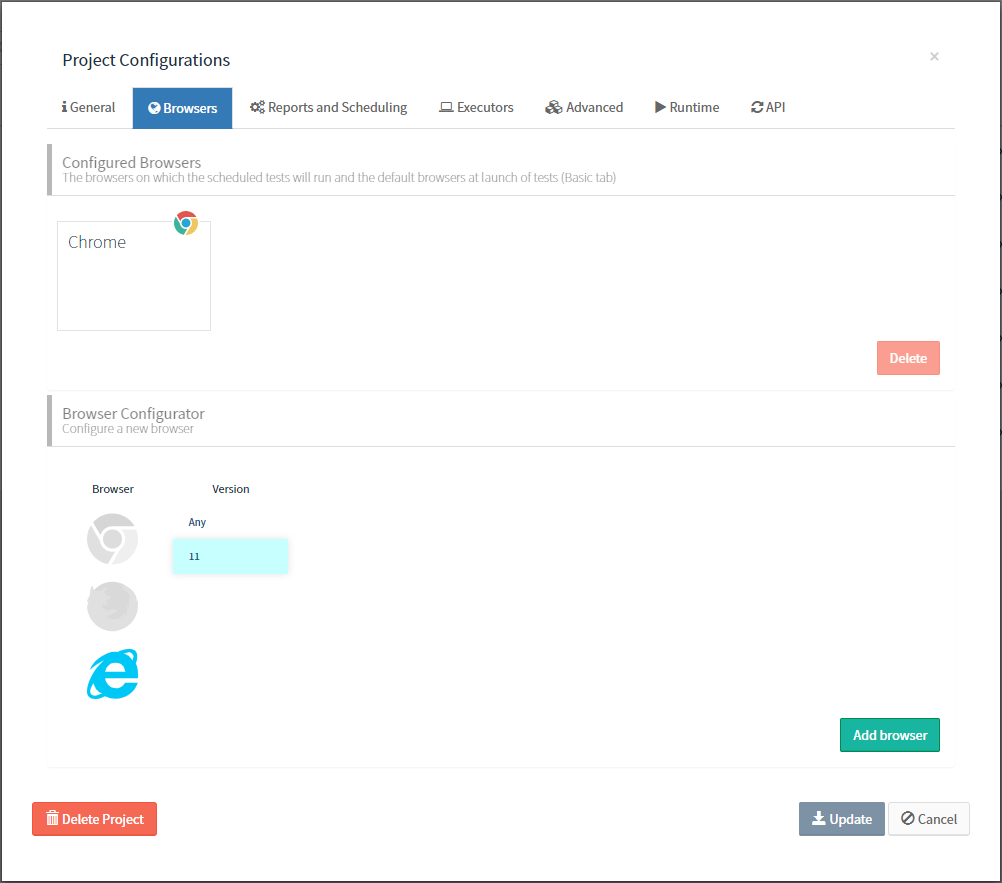

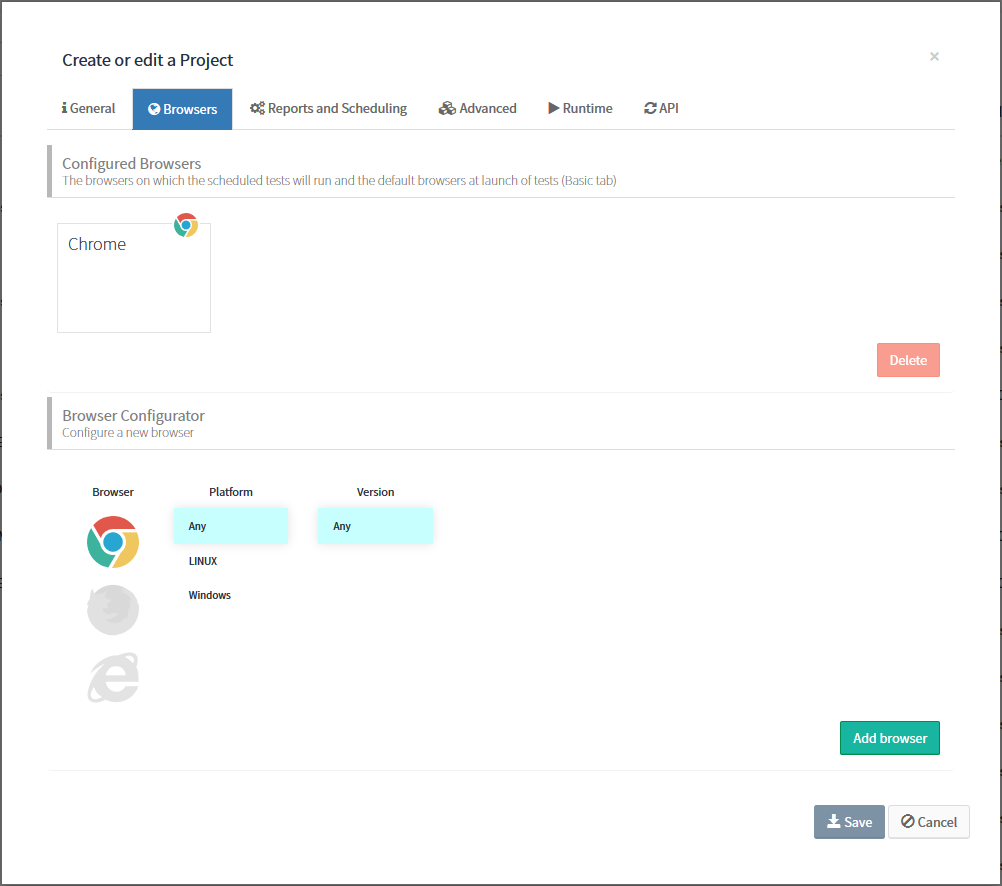

On the Browsers tab, choose the browsers on which the scheduled tests will run and the default browsers at launch of tests (Basic tab)

To configure the browsers, click Browser Configurator to expand the available browsers and select a browser (and the properties). After, click Add browser.

If you want to remove a configured browser, select the browser configuration (below the configured browsers) and click "Delete".

Note:

The Browsers tab is not available for the monitoring projects.

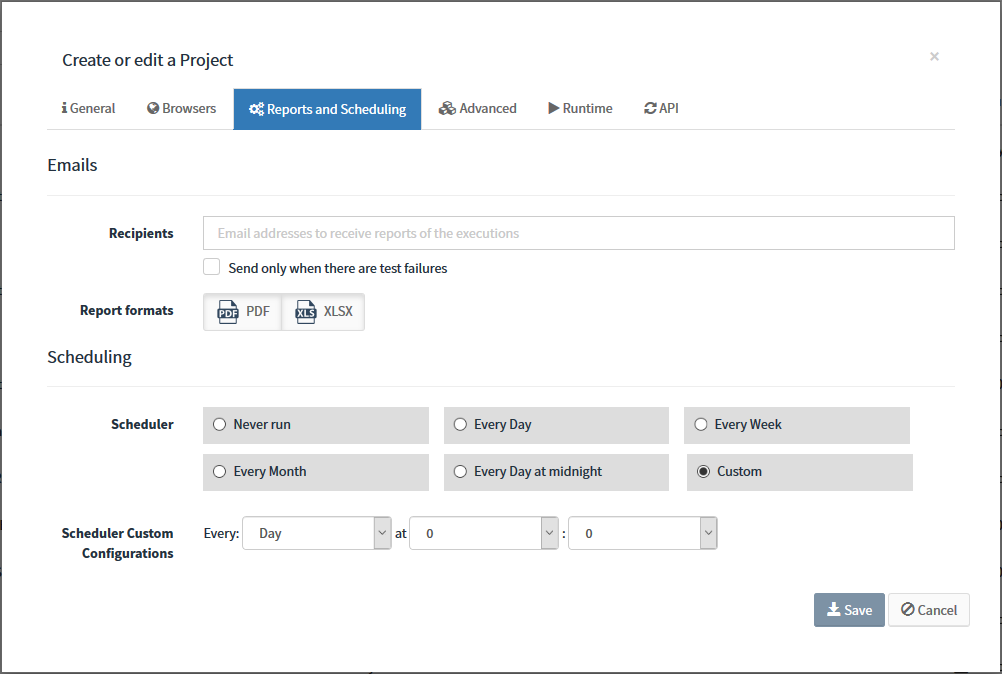

On the Reports and Scheduling tab, fill the following fields:

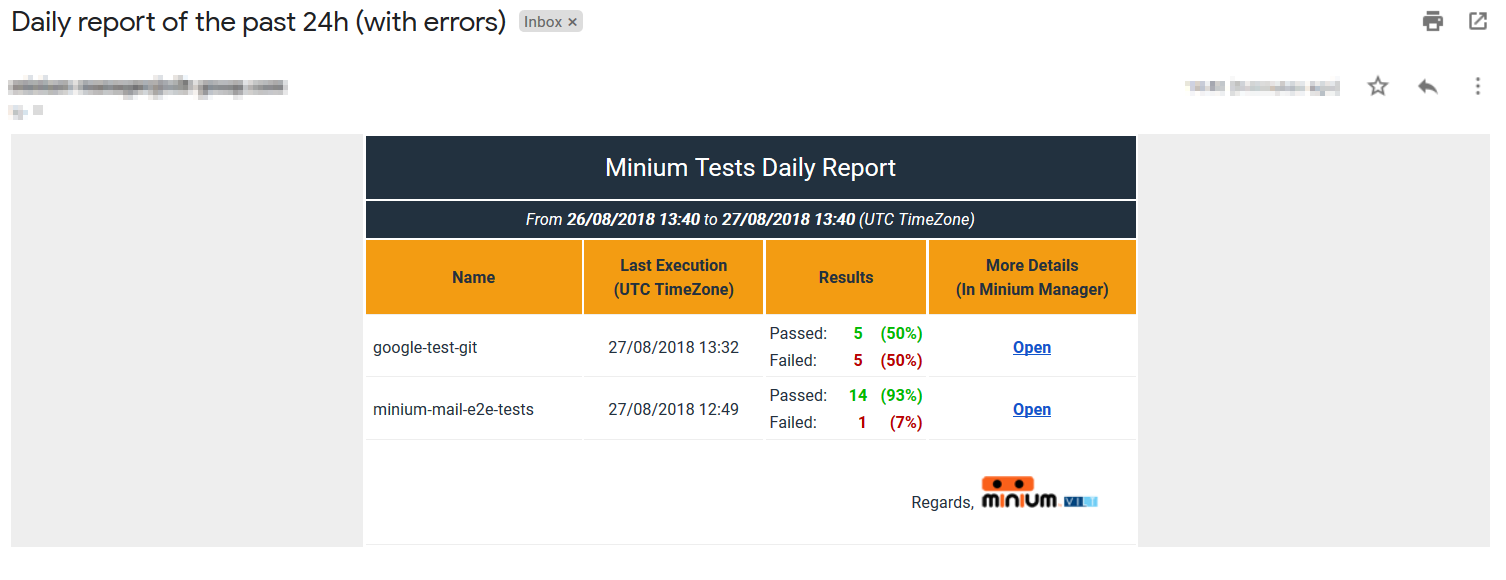

Recipients

Set email addresses to receive a report of execution for the project. If you only want to receive the report of the executions that contains failed tests, check the option "Send only when there are test failures".

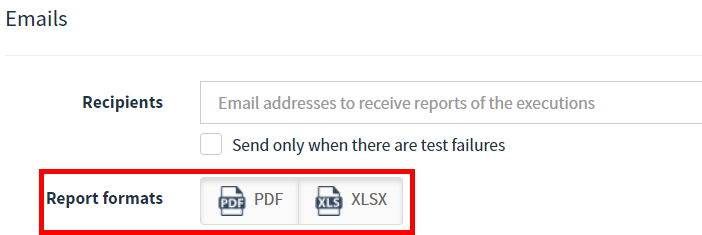

Report formats

Set the format(s) that the report of execution will be sent to the email.

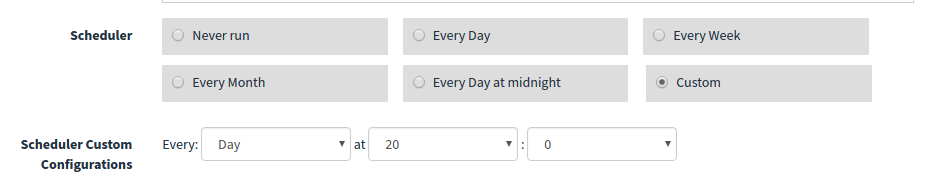

Scheduler

Set the schedule you want to execute the project and send the report of the execution. If you choose the option Custom you can set a custom schedule.

Scheduler Custom Configurations

Set the schedule you want to execute the project and send the report of the execution with different levels of granularity.

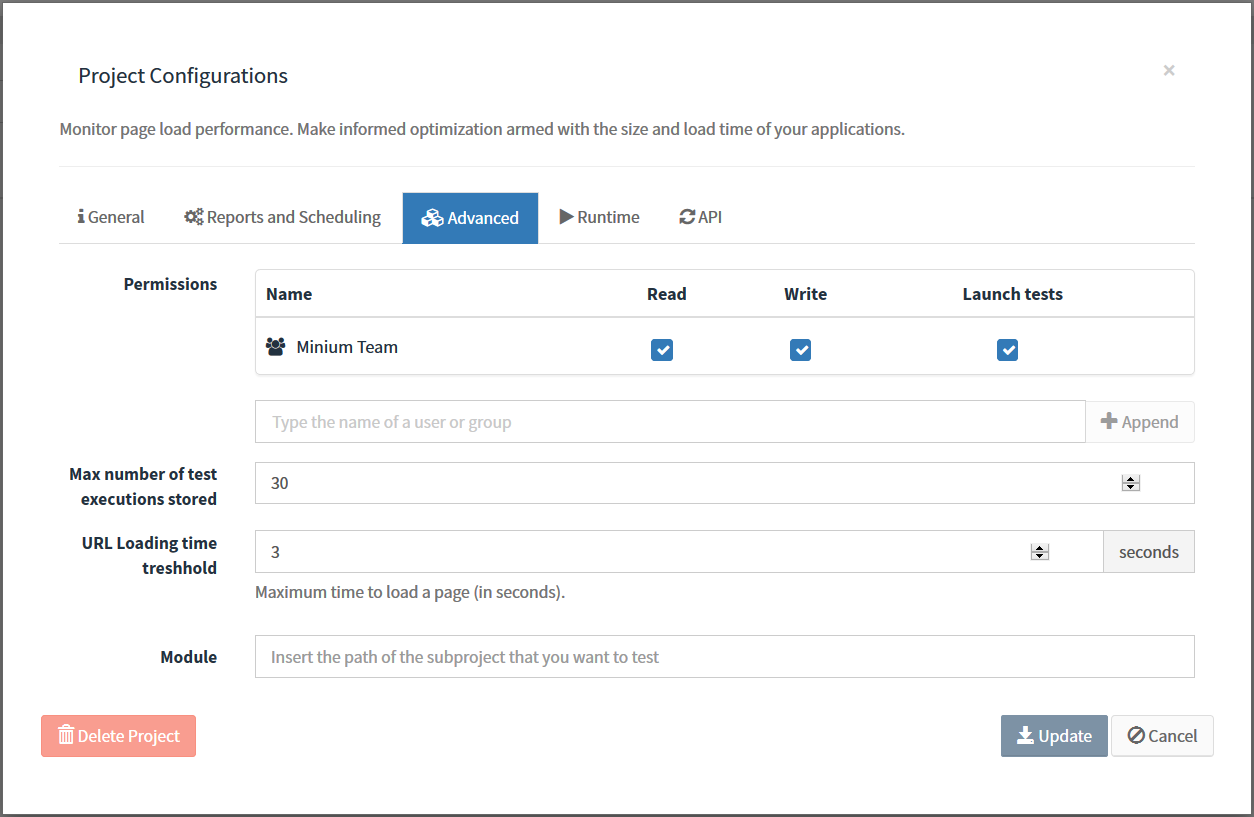

On the Advanced tab, fill the following fields:

Permissions

Add and personalize the level of access that assigns to each user or group.

Max number of test executions stored

Set the max number of executions to be stored at Minium Manager.

URL Loading time treshhold

Maximum time to load a page (in seconds) to warning the user at the executions page. Available only to Monitoring projects

Module

The path to the folder where the features are in the repository (e.g minium-developer-e2e-tests).

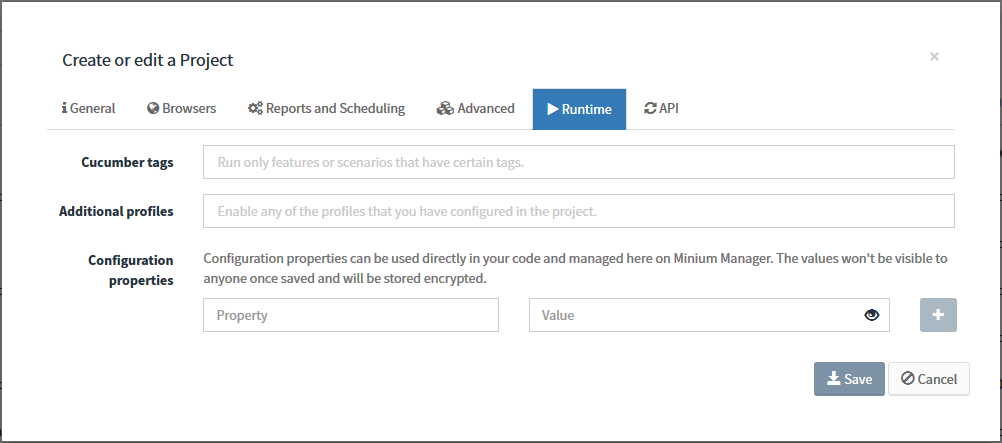

On the Runtime tab, fill the following fields:

Cucumber tags

Use this option to tell Minium Manager that only run features or scenarios that have certain tags.

Additional Profiles

Enable any of the profiles that are configured in the ./config/application.yml project file. See Configuration profiles for more details.

Configuration properties

This configuration properties can be used directly in your code and managed here on Minium Manager. The values won’t be visible to anyone once saved and will be stored encrypted.

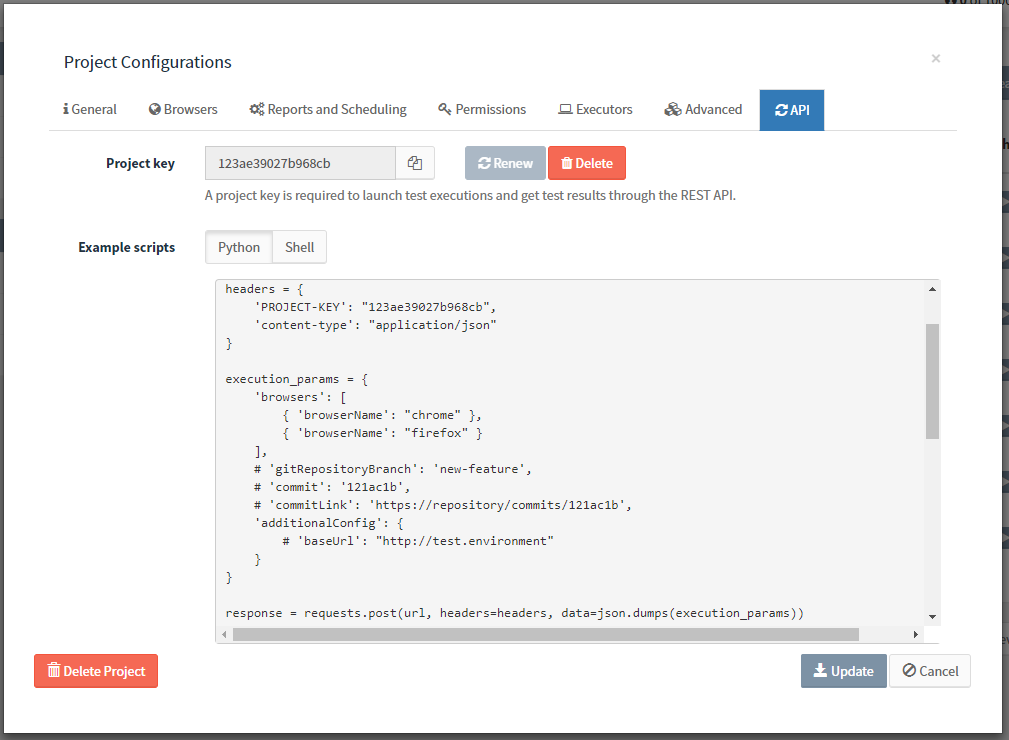

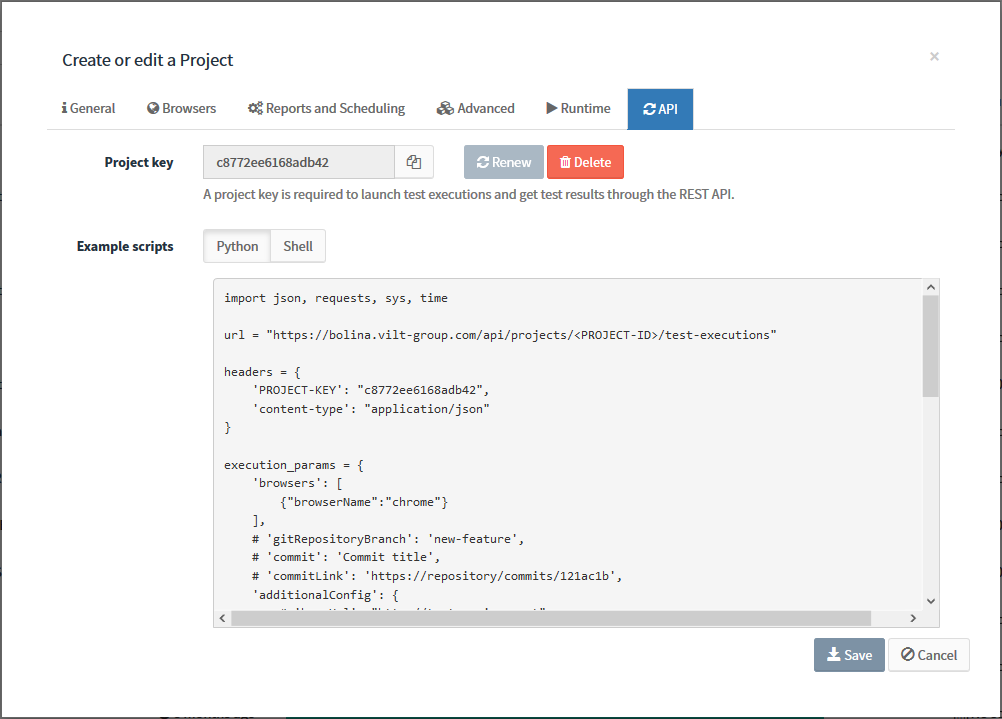

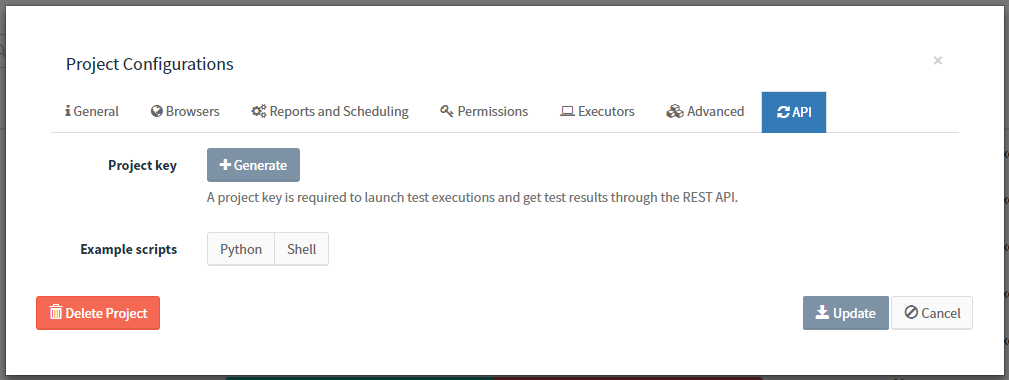

On the API tab, fill the following fields:

Project key

Generate a project key (required to launch test executions and get test results through the REST API).

Example scripts

Once the project has an API key, the scripts will be fulfilled with the project-specific data and ready to use. The first part of the script shows how to launch a test execution.

2.3. Project permissions

Manage the access levels of the users/groups in the projects. It is also possible to add and personalize the level of access that assigns to each user or group, per-project.

Note:

Write permissions is required to update the permissions of a project.

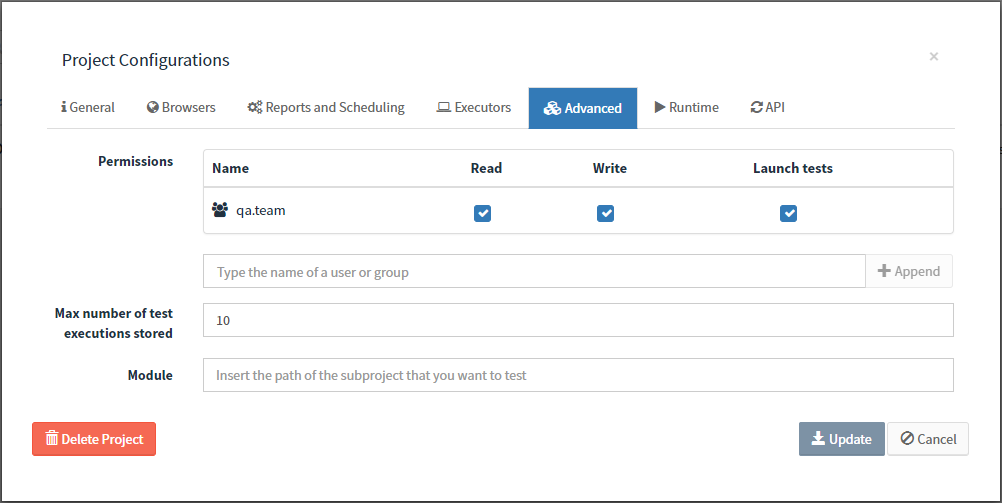

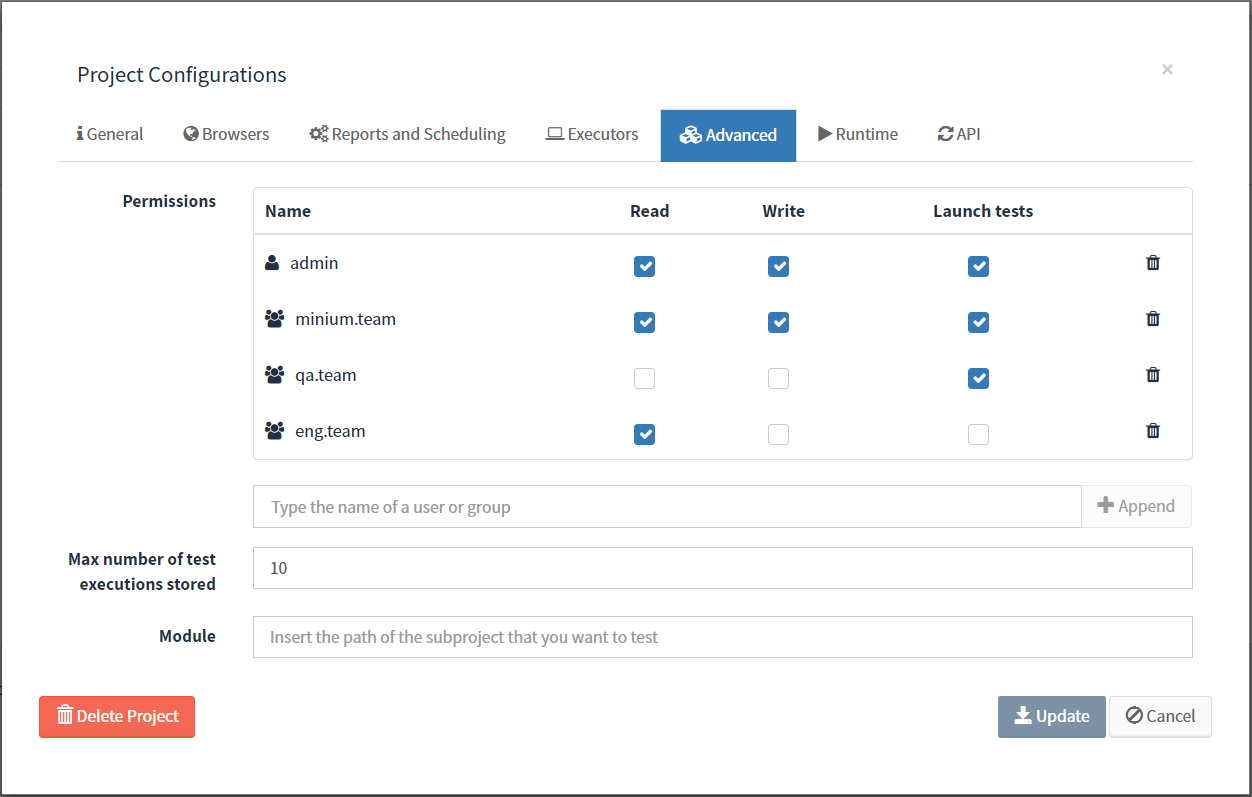

In order to change the project permission the first step is go to the project configuration and click on tab Permissions.

Add user or groups to the permission table. Below the permission table, start typing the name of the user or group desired. And then click on button Append.

Note:

It is possible to select more than one user or group.

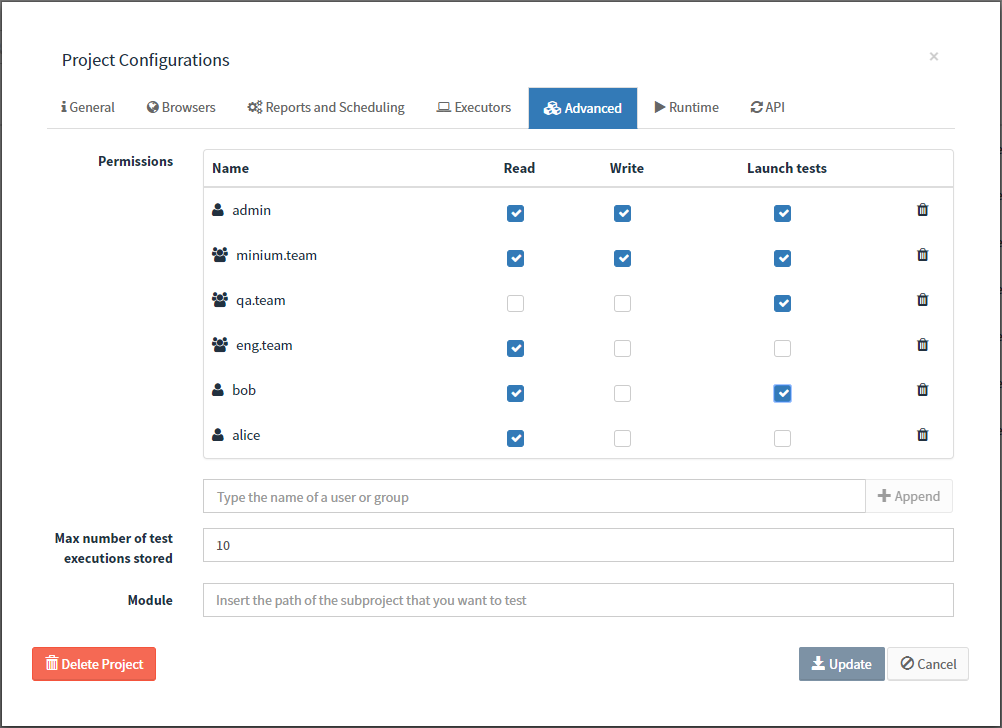

After the users or groups was appended to the permissions table, define the permission for each entry appended and click Update to save the project configurations.

2.4. Organise projects by Labels or Groups

Labels were meant to be used only to filter projects in the Projects page providing a useful way to organize the projects.

2.4.1. Manage Labels

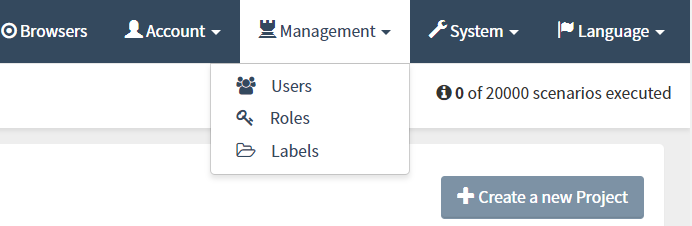

To manage the labels, open the Management menu and click on Labels:

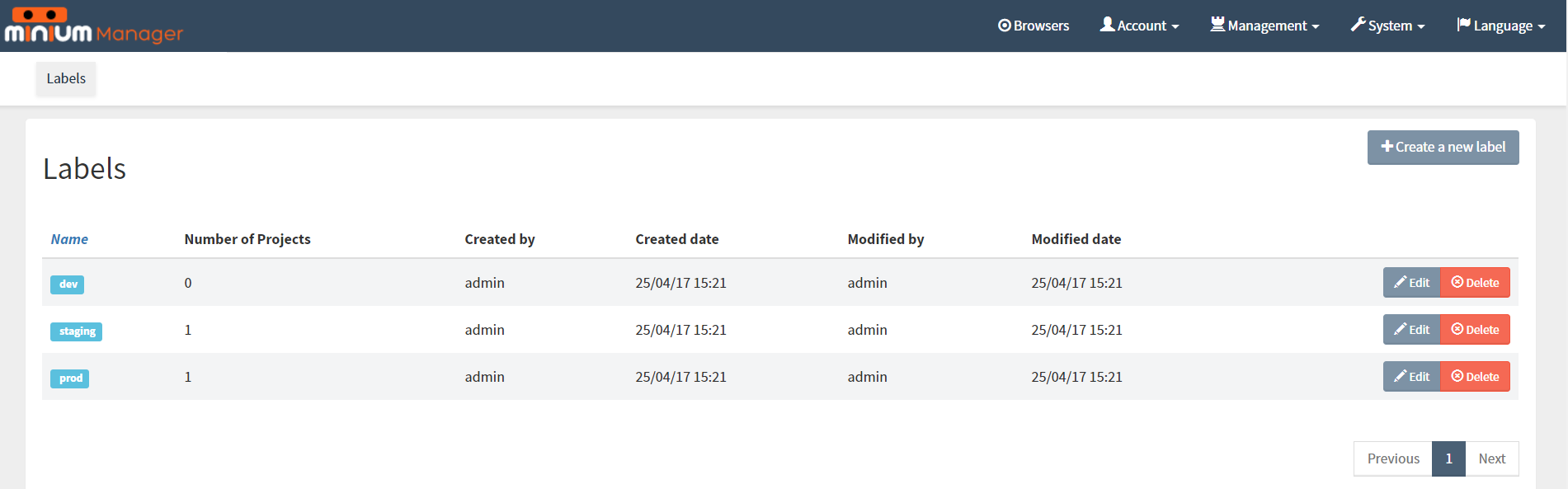

The Labels page is shown with all current labels. Edit, delete and create new ones if desired.

To create a new label, click on Create a new label. To delete or edit an existing label, click on Edit or Delete respectively.

2.4.2. Assign labels to the projects

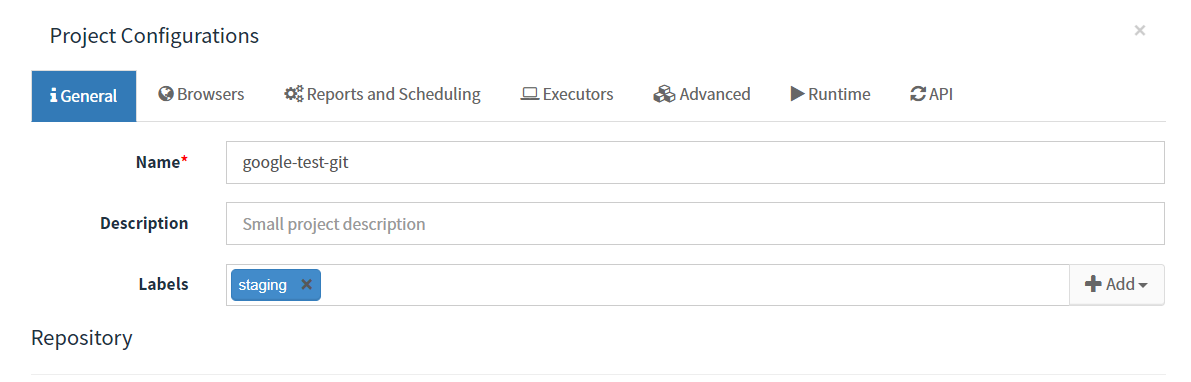

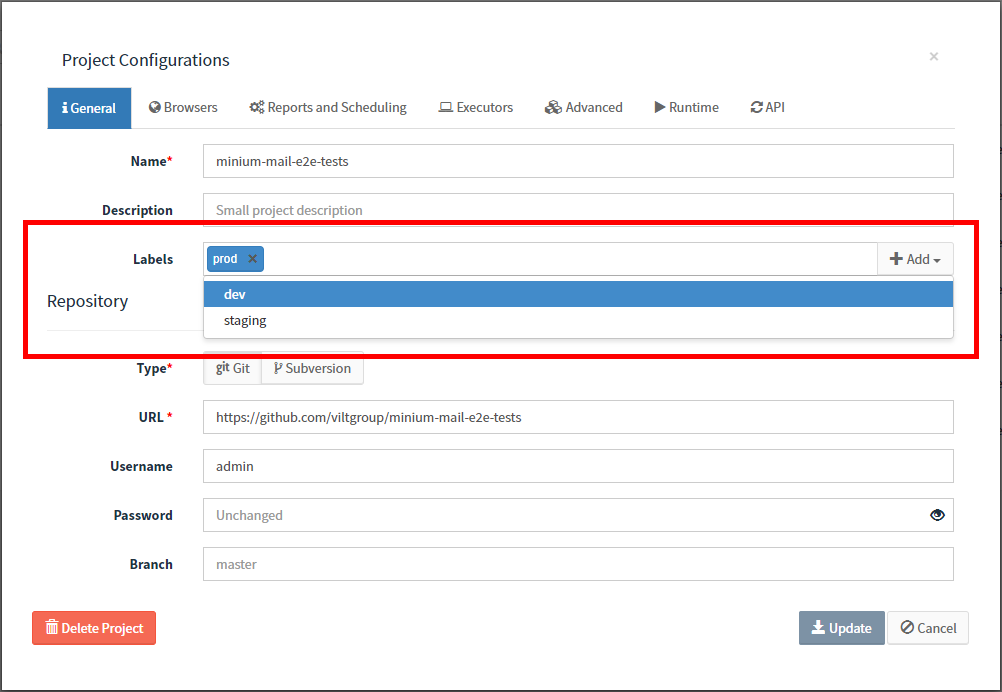

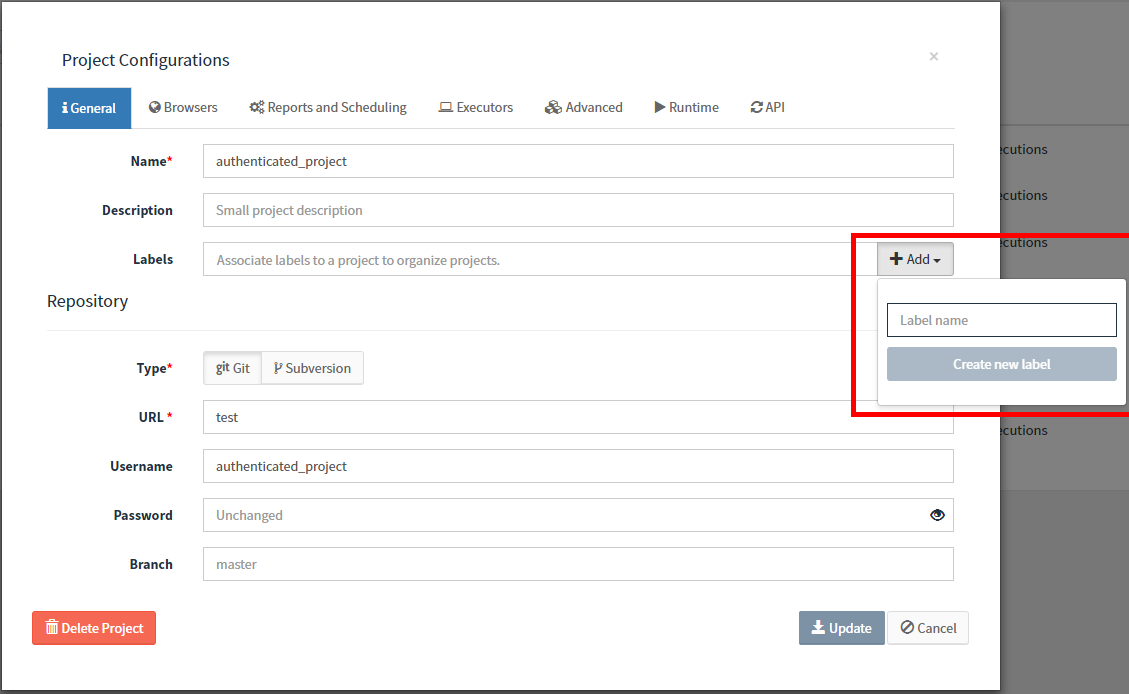

To assign some labels to a project, go to the project configurations:

The Add button can be used to create new labels if needed.

2.4.3. Manage groups

Groups are intended to organize projects at a higher level and to perform changes in several projects at a time.

Manage groups using LDAP authentication

If Minium Manager is using a LDAP to manage the users, the groups are configured through the LDAP.

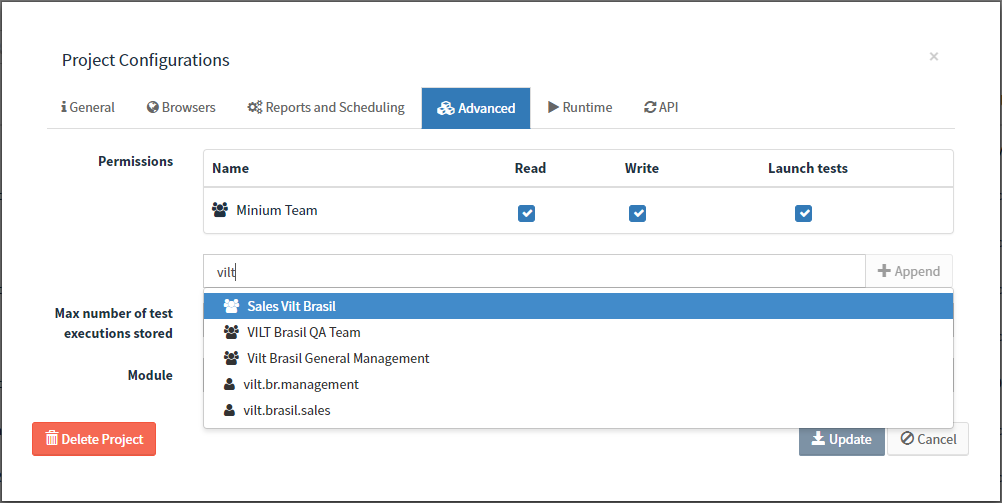

In the project configuration, search for groups. Below the permission table, start typing the name of the user or group. This will perform a search into the LDAP directory.

Manage groups without LDAP authentication

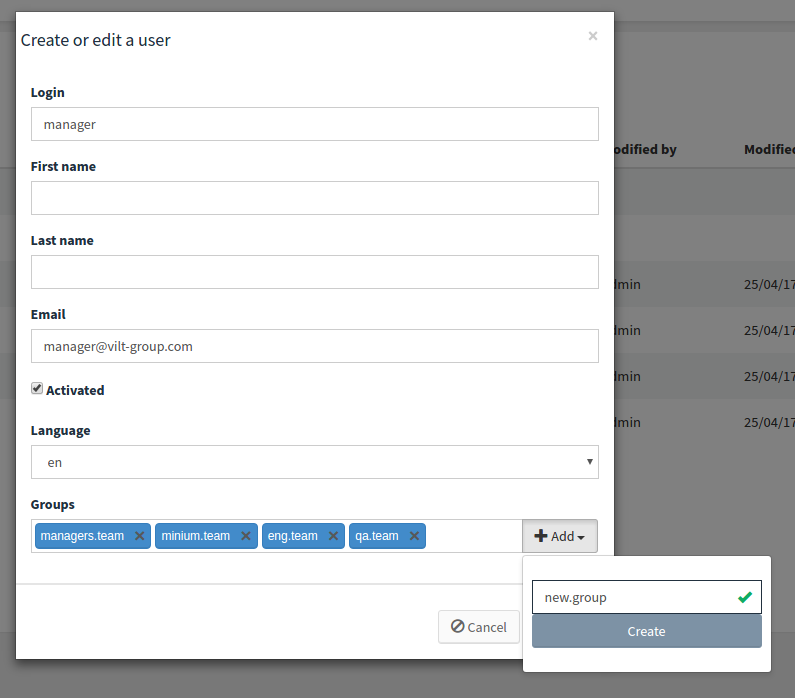

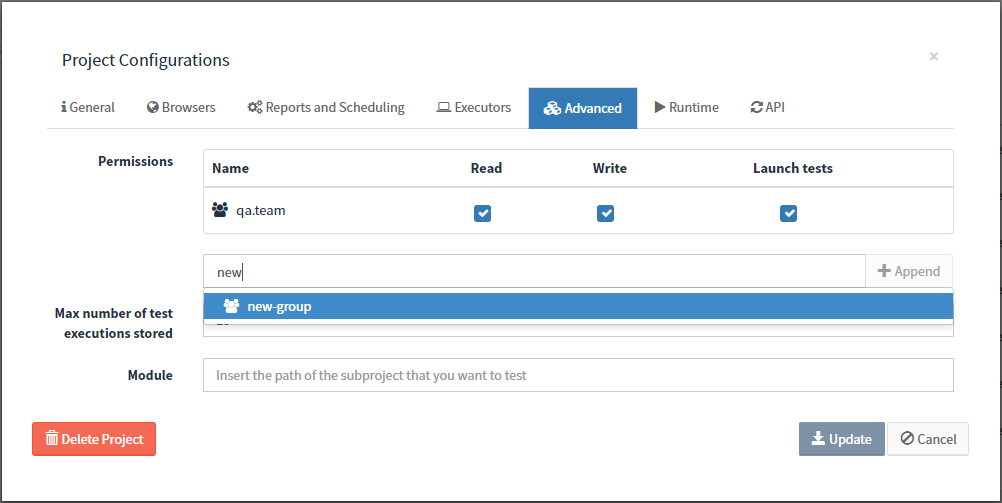

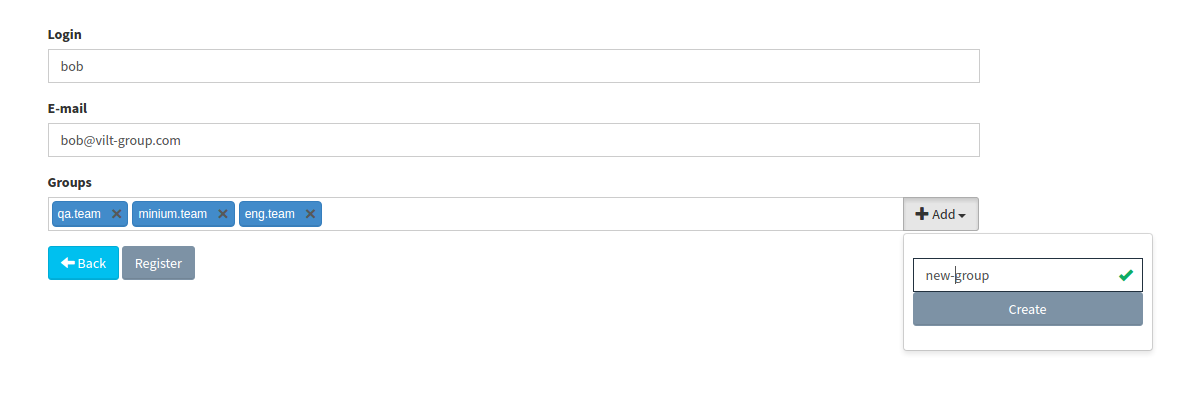

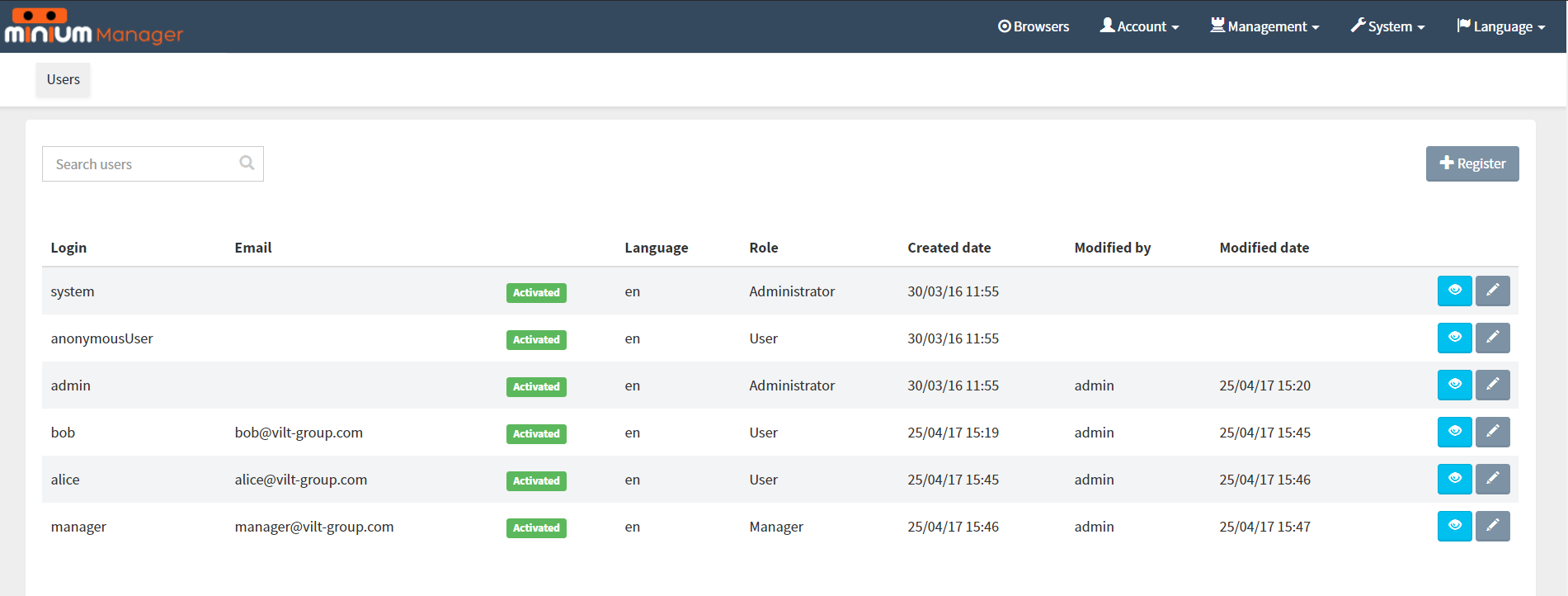

If Minium Manager is not using LDAP authentication, create new groups through the user management UI.

Note:

Only the users with Admin privileges are allowed to create groups.

If desired add permissions to the group recently created in the project configuration. Below the permission table, start typing the name of the group created.

2.4.4. Organise Projects

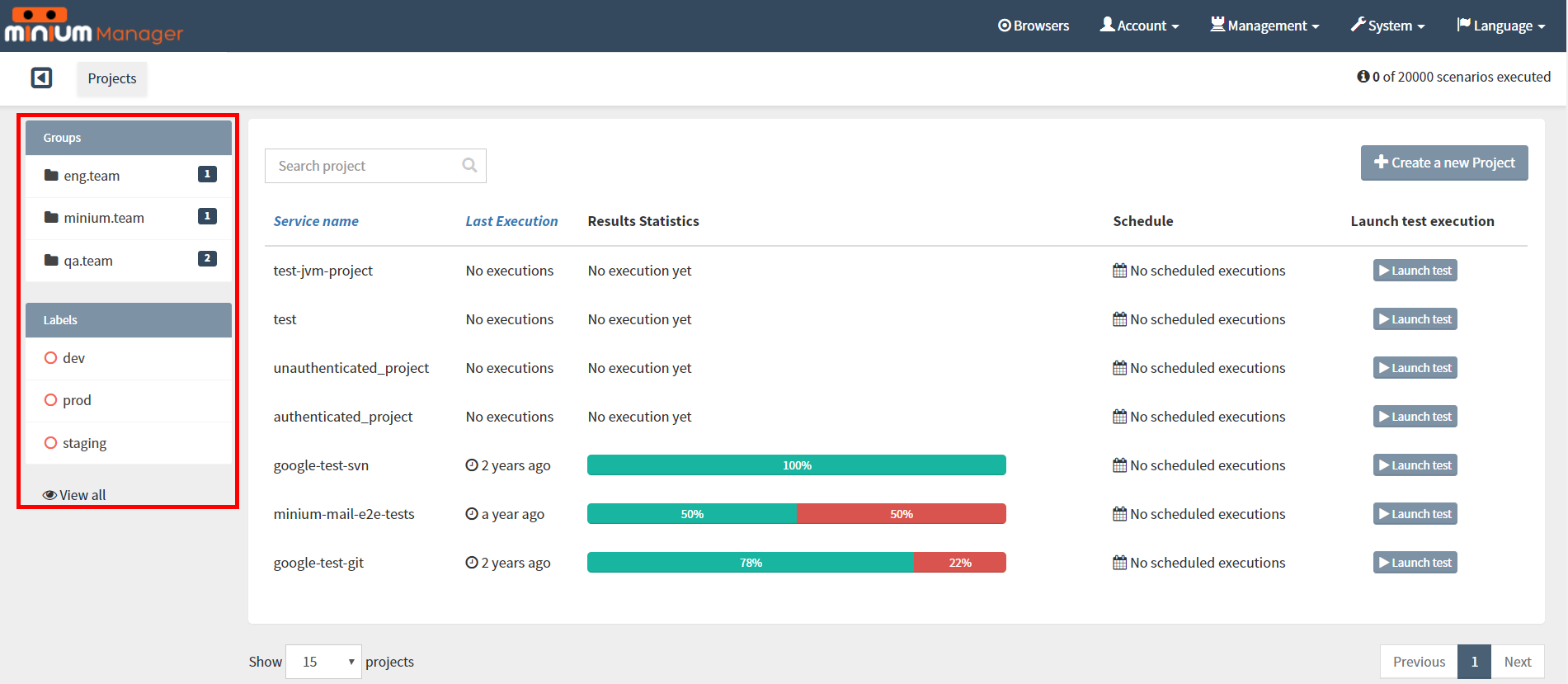

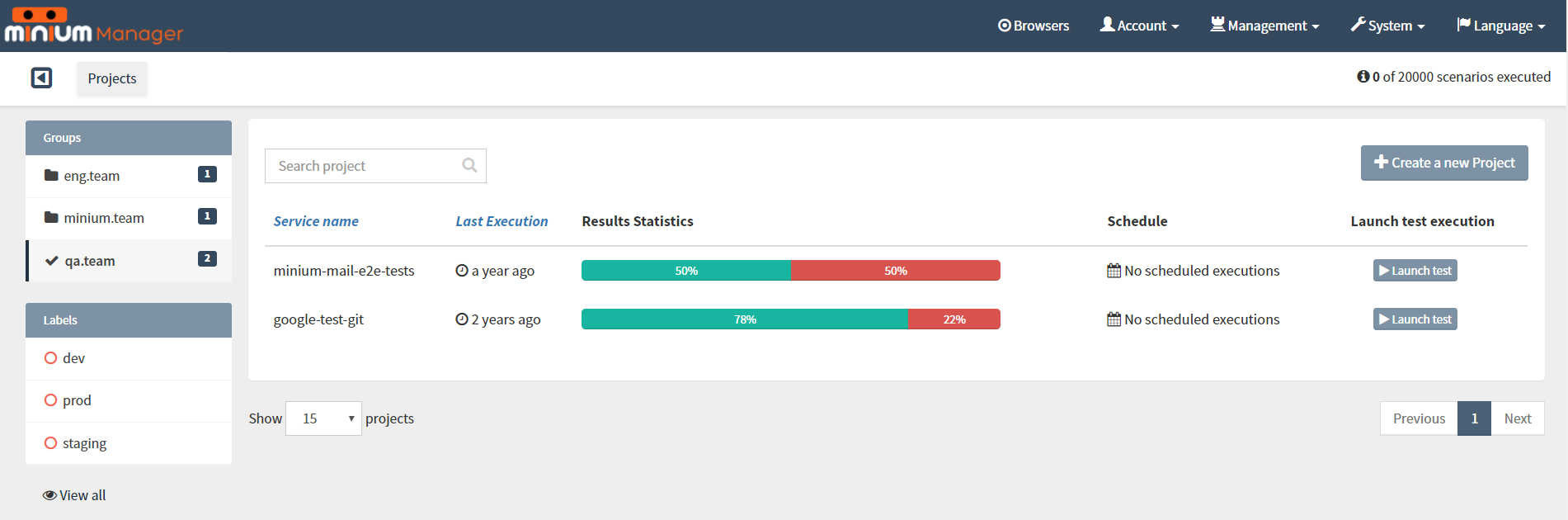

Using groups and labels to organise the projects selecting a group and labels from the sidebar.

Select one group at a time, but select multiple labels and combine both.

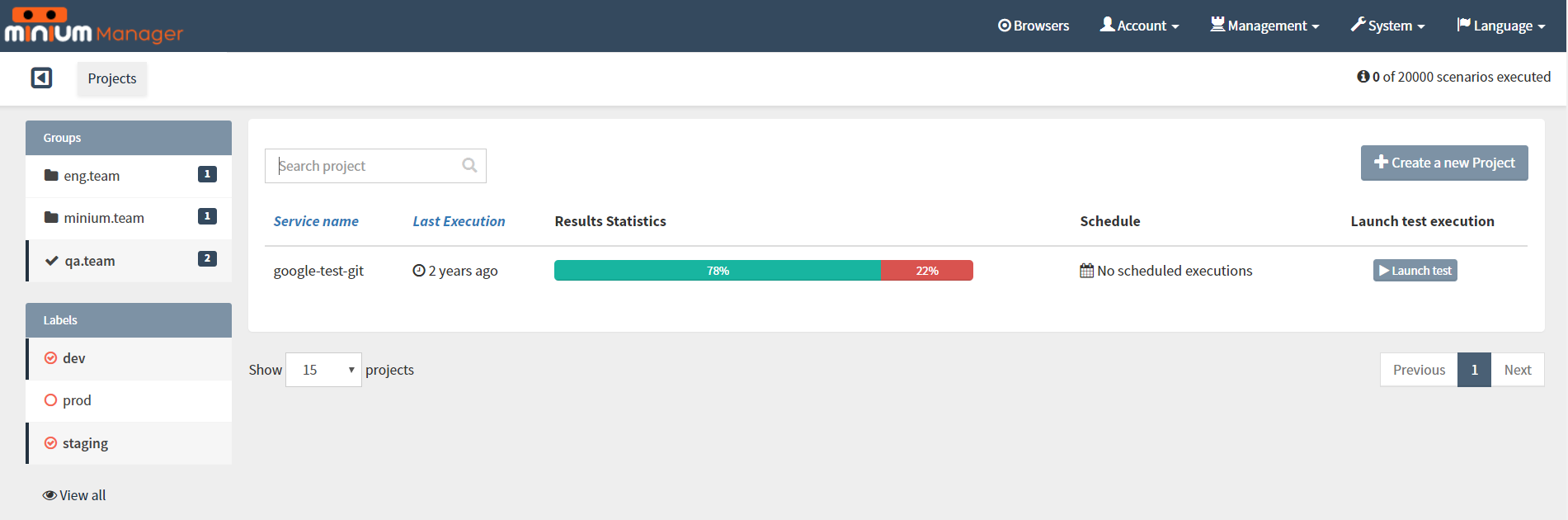

In the case of the figure above, notice that the group qa.team is selected and two labels are also selected (dev and staging). With this filters applied, exists one project shown in the project list.

This means that the one project belong to the group qa.team (see it in the figure below).

And the project have either the label dev or staging associated with it in the project configuration (as shown in the figure below).

Select a group or one or more label, like shown in the figure below. In this specific case, are selected only the label prod, without selecting any group. It means that all the projects in the list have the label prod associated.

Clean project filters

By clicking on the button View all, it will remove all the selected filter.

2.5. Configuration profiles

Configuration profiles can be defined on the config/application.yml of a project and used to load configuration properties that vary based on the environment being tested. Such configuration could be for example the URL of the application or the language:

# default values
minium:
  config:
    baseUrl: http://localhost
    language: English
---
spring.profiles: qa
minium:
  config:
    baseUrl: http://staging
---
spring.profiles: es
minium:
  config:
    language: Spanish

These configuration properties can then be used on the step definitions like this:

When(/^I go to the homepage"$/, function() {
  browser.get(config.baseUrl);
  $(".dropdown").withText("Language").click();
  $(".dropdown a").withText(config.language).click();
});

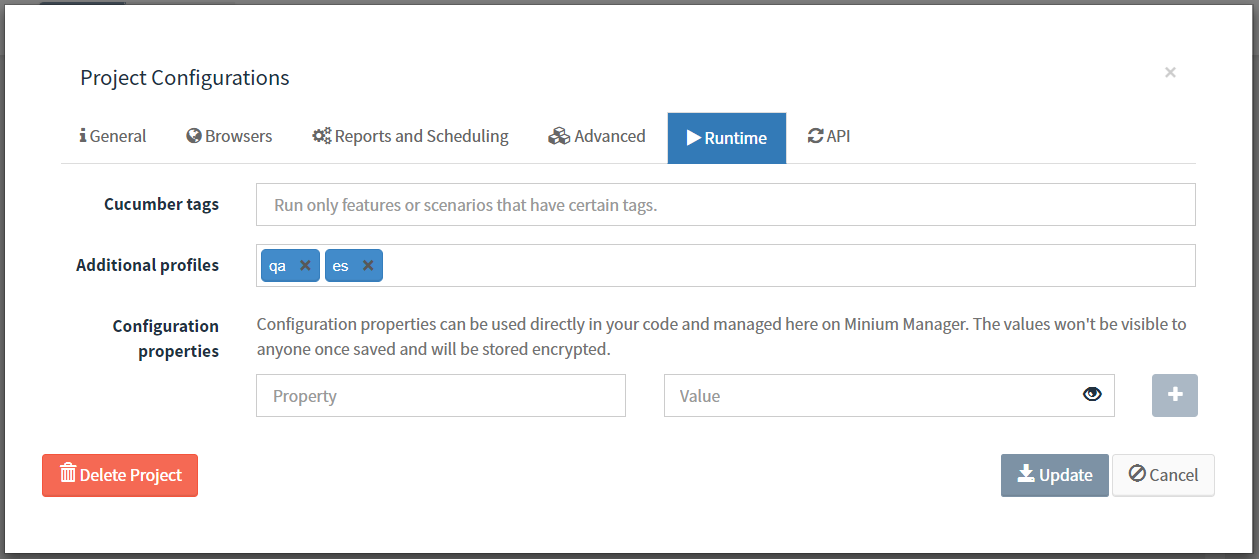

Then to run test executions with the configuration properties of a profile, go to Project Configurations and add it to Additional profiles:

2.6. Secret configuration properties

Sensitive configuration properties that cannot be included on the repository of the tests can be safely stored on Minium Manager. They can be used just like the configuration properties defined on the config/application.yml file of the project. As an example, consider that some tests need to be executed against a production environment which requires a password that cannot be exposed on the code. In that case, only the password to be used on the test environment would be defined on the config/application.yml file:

minium:
  config:
    baseUrl: http://staging
    username: test
    password: minium

---

spring:
  profiles: prod

minium:
  config:
    baseUrl: https://production
    username: admin

Which would be accessible through the config.password during the tests:

When(/^I login"$/, function() {
  browser.get(config.baseUrl);
  $(":text").fill(config.username);
  $(":password").fill(config.password);
  $(":submit").click();
});

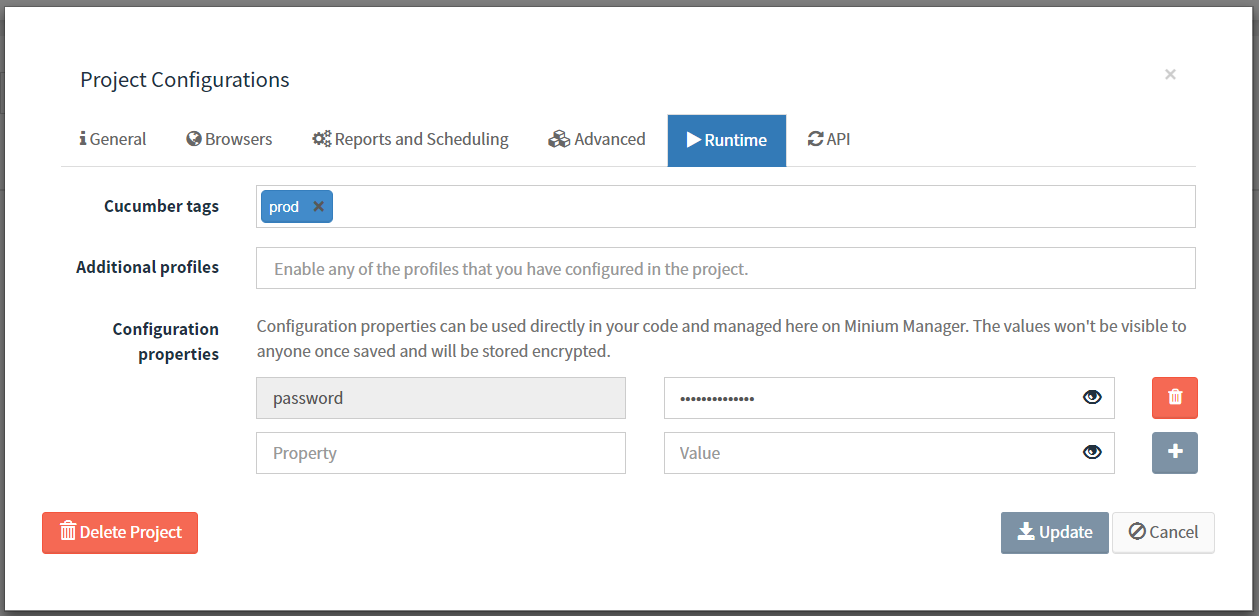

The password to be used on the production environment would then be defined on the Project Configurations:

2.7. Delete a project

To delete a project, go to the project configurations and click on the button Delete Project, at the bottom-left corner:

2.7.1. Click on a link and get the performance of the page

When(/^I click on link with text "([^"]*)"$/, function(text) {
 $("a").withText(text).click();
 expect($(".page-title")).to.exist();
 scenario.write(browser.getPerformance());
});

2.7.2. Monitoring Report

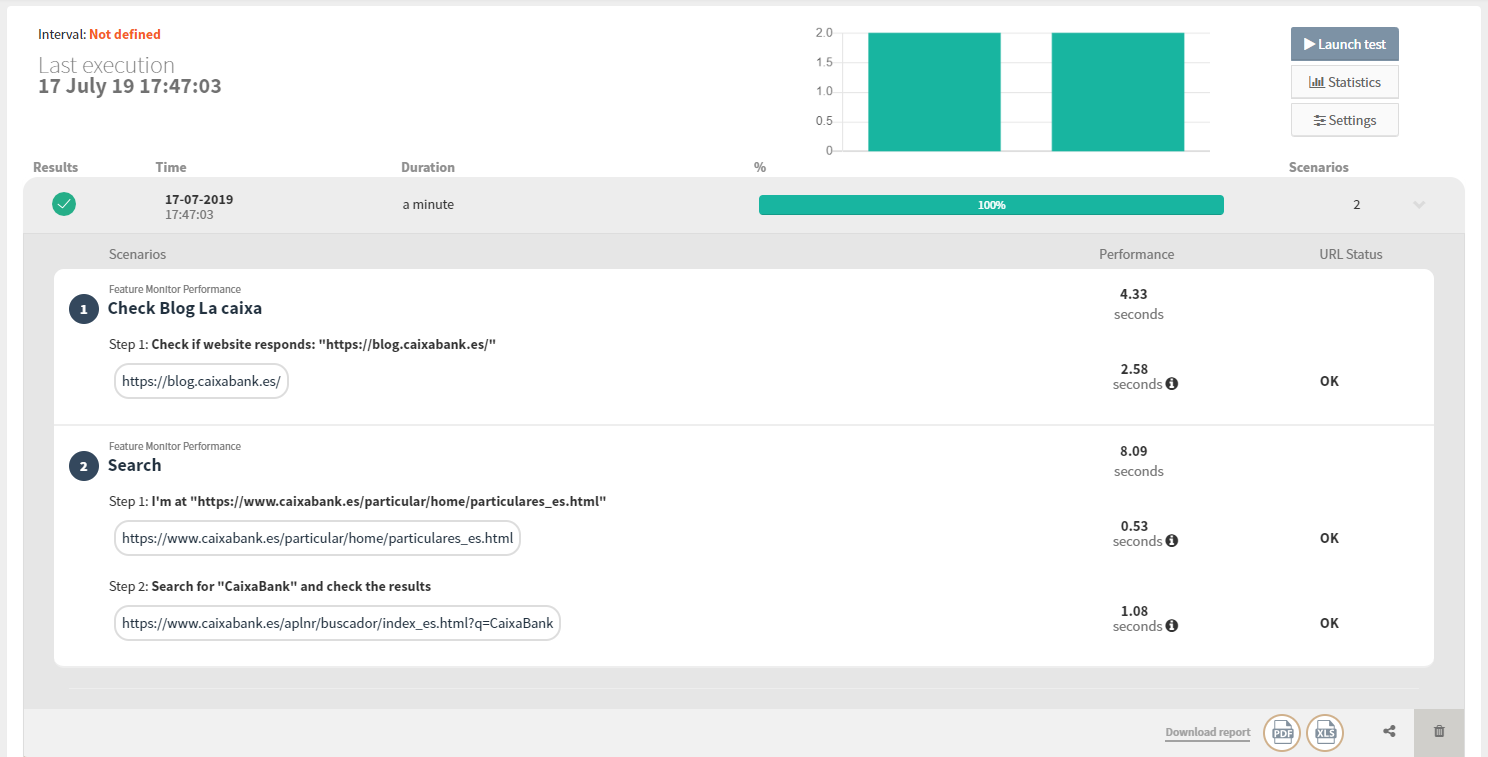

The result of an execution of a Monitoring project is presented at the execution page:

At execution page, we can see the time of each URL took to load. Also we can see the URL status and the time that took to execute the scenario.

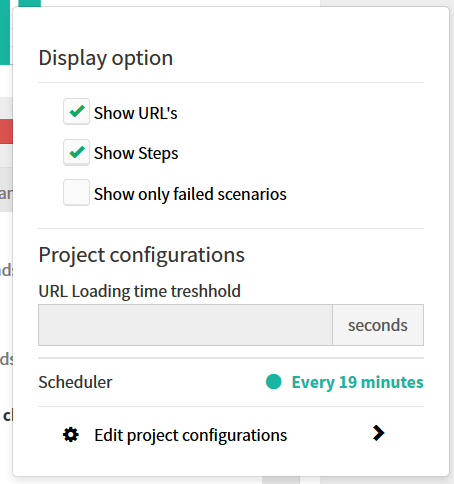

2.7.3. Display options

The information at the execution page can be filtered to show/hide some details.

The display options allow us to:

Show/Hide the URL’s
Show/Hide the steps
Show only the sailed scenarios
Consult the URL loading time threshold (This property is configured at the project configurations at the advanced tab and warns the user (at the execution page) when the loading time of an URL is higher than the loading time threshold)
Consult the scheduler (The scheduled is configured at the project configurations at the reports and scheduling tab)

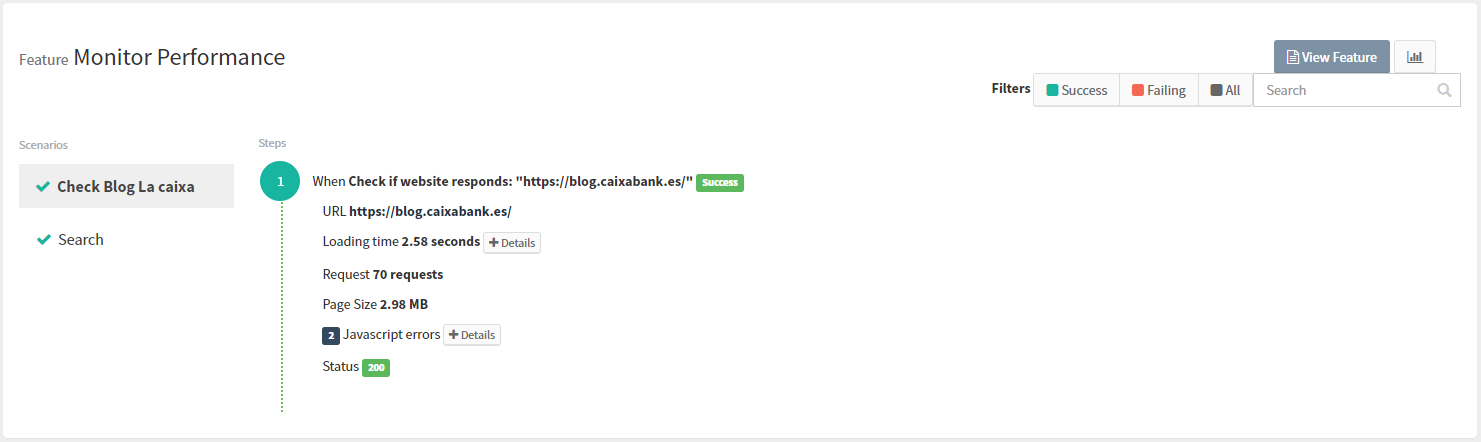

Feature page of a Monitoring project scenario:

At the feature page, we can see more details about the page load performance:

The url loaded
The loading time with the times of the Backend Performance, Frontend Performance and DOM Content Loading
The number of requests
The Javascript Errors (if any)
The URL status code

3. Check the available browsers

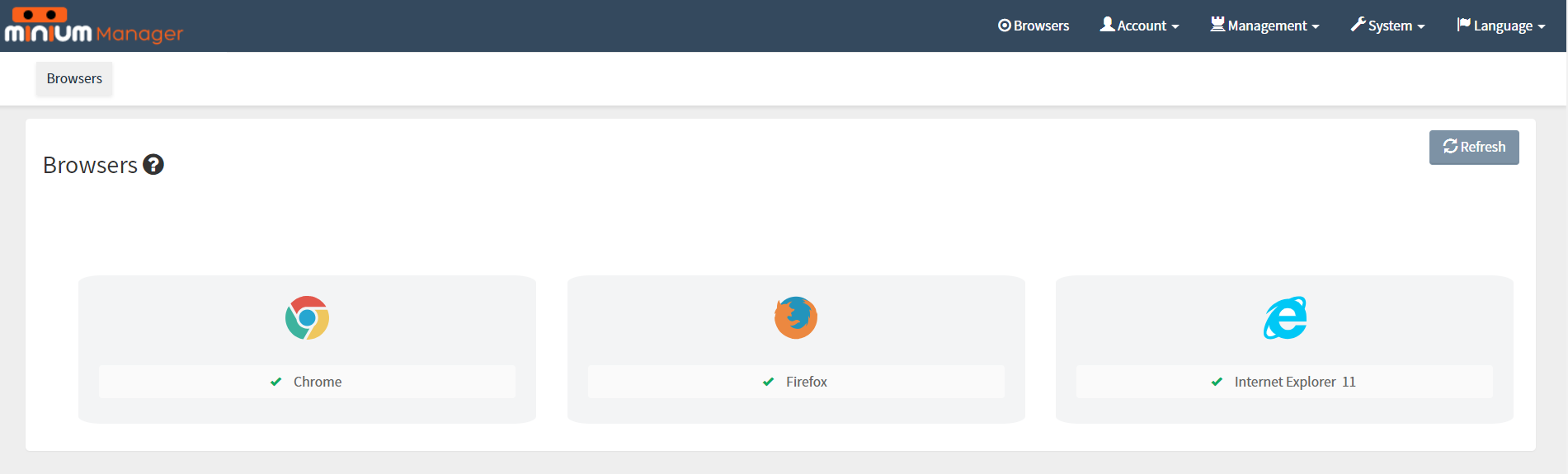

To check the available browsers, click on Browsers, at the navigation bar.

In the figure above, we only have one provider available, but we can have two or more providers configured (e.g. "BrowserStack" and/or "Selenium Grid Extras"). The provider configured has the browsers Chrome, Firefox and Internet Explorer available.

This means that with this environment is able to run the tests in Chrome, Firefox and Internet Explorer at the provider configured.

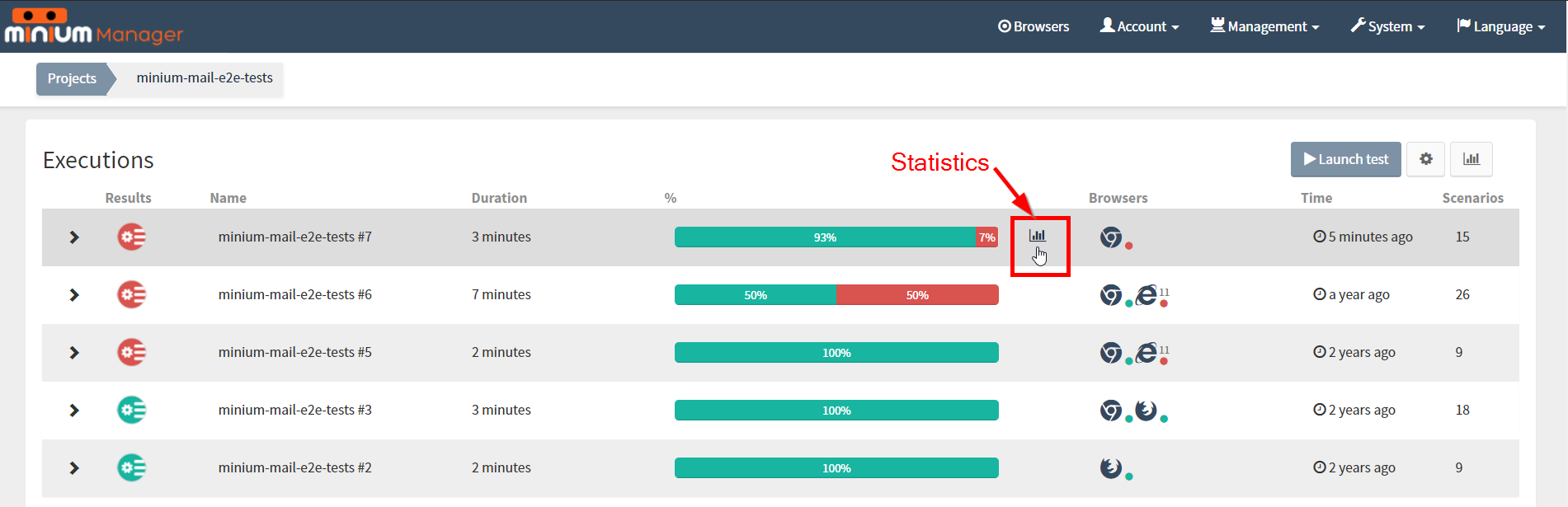

4. Project Statistics

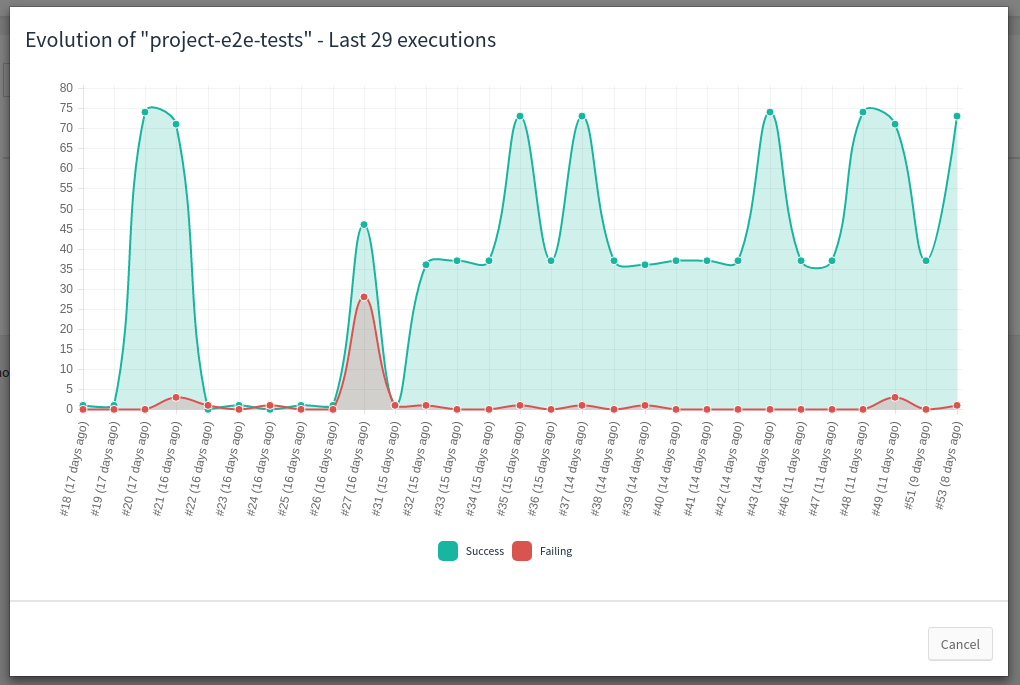

Evolution chart to the test executions of a project.

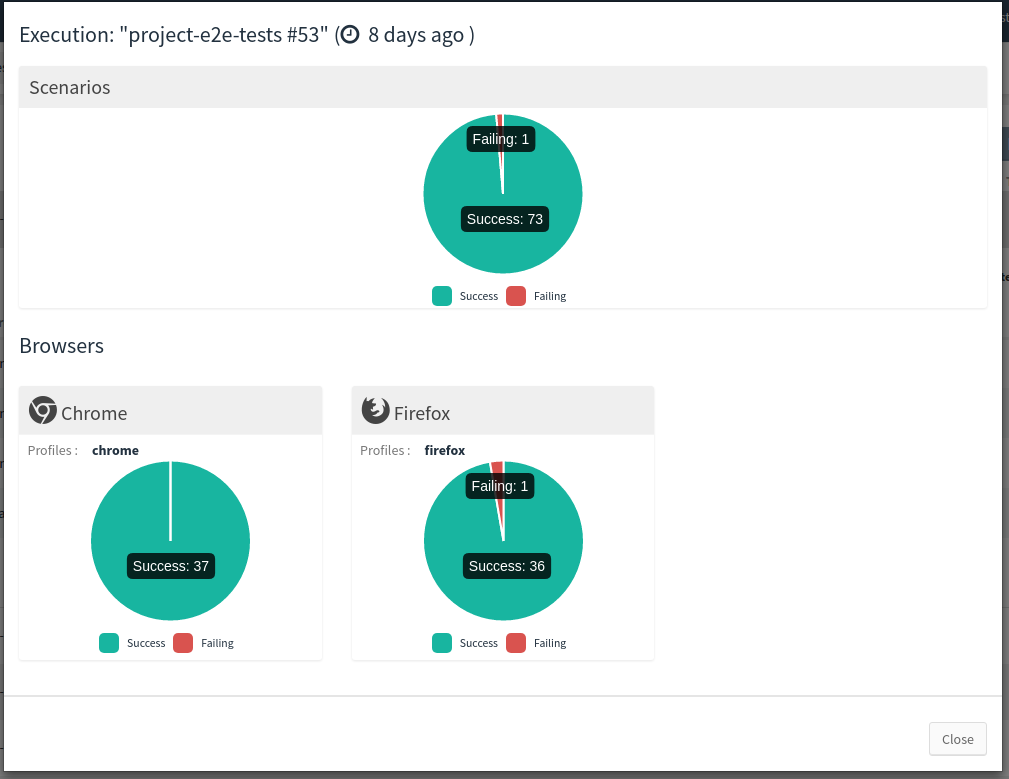

Statistics for a single execution.

5. Test executions

5.1. Launch test executions

A test execution will execute the tests present in a project on one or more different browsers. There are alternative ways for launching test executions.

5.1.1. Launch a test execution manually

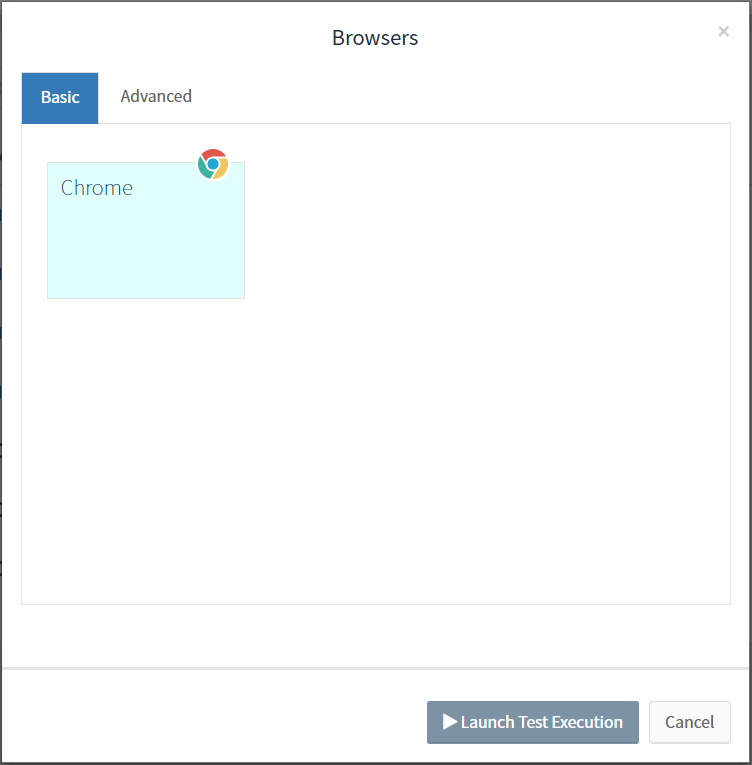

On the homepage or the page of a project, click on button Launch test, which opens a modal for selecting the browsers.

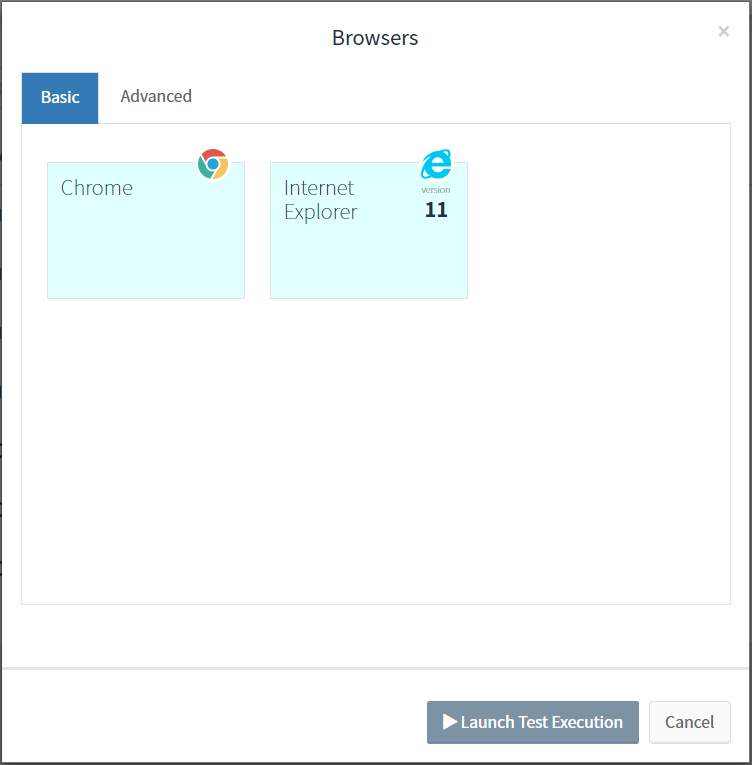

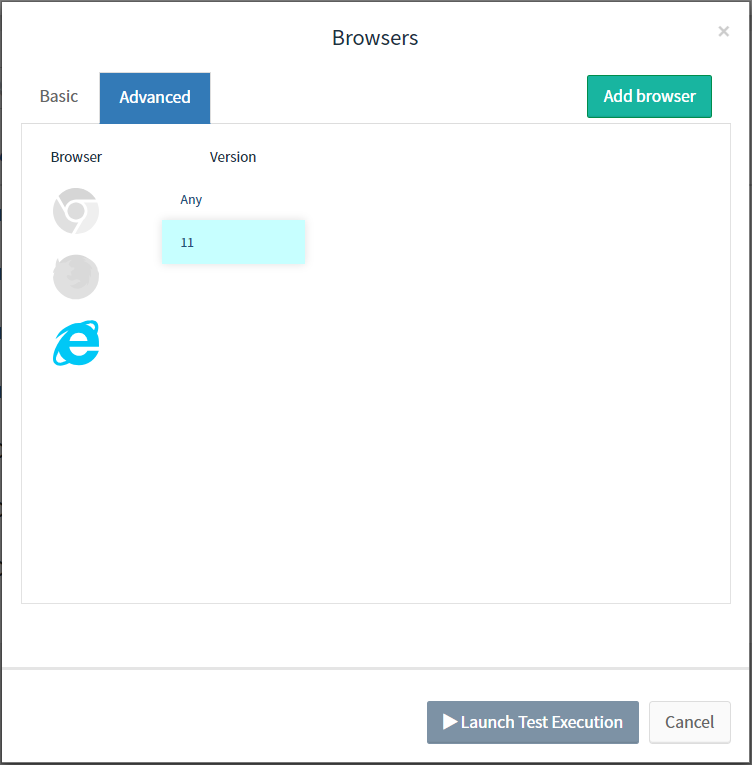

Select the desired browsers by clicking on them. If needed, click on the Advanced tab to configure a new one. To configure a browser, click on the corresponding icon and choose its properties. Then, click on Add browser.

The new browser is now available to be selected on the Basic tab.

After selecting all the browsers, click on Launch Test Execution.

Note:

At click on button Launch test, the Monitoring project don’t open a modal for selecting the browsers. It launchs a test immediately.

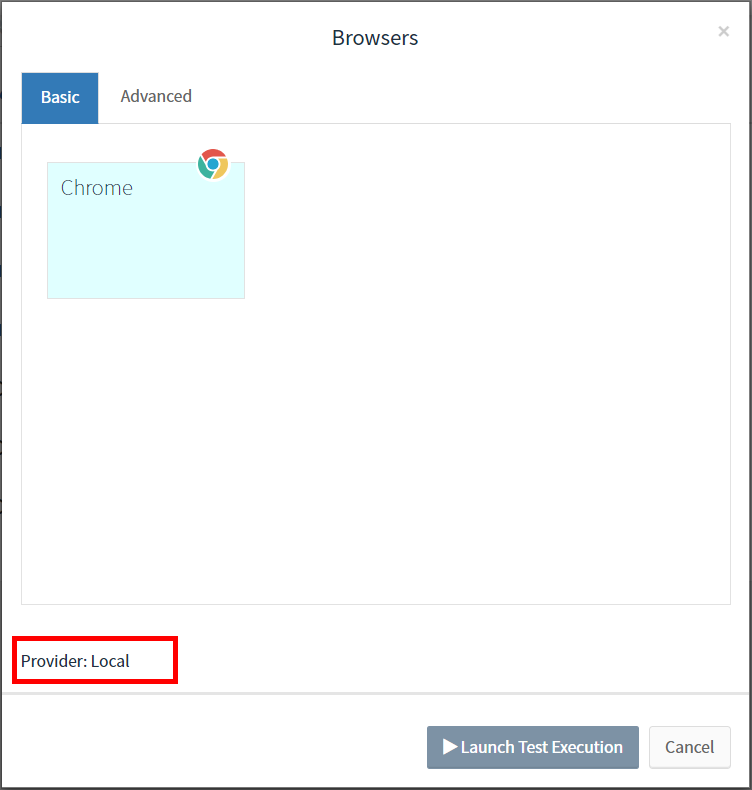

Multiple Providers

With multiple providers, the Launch modal presents the provider configured for the project.

5.1.2. Schedule test executions

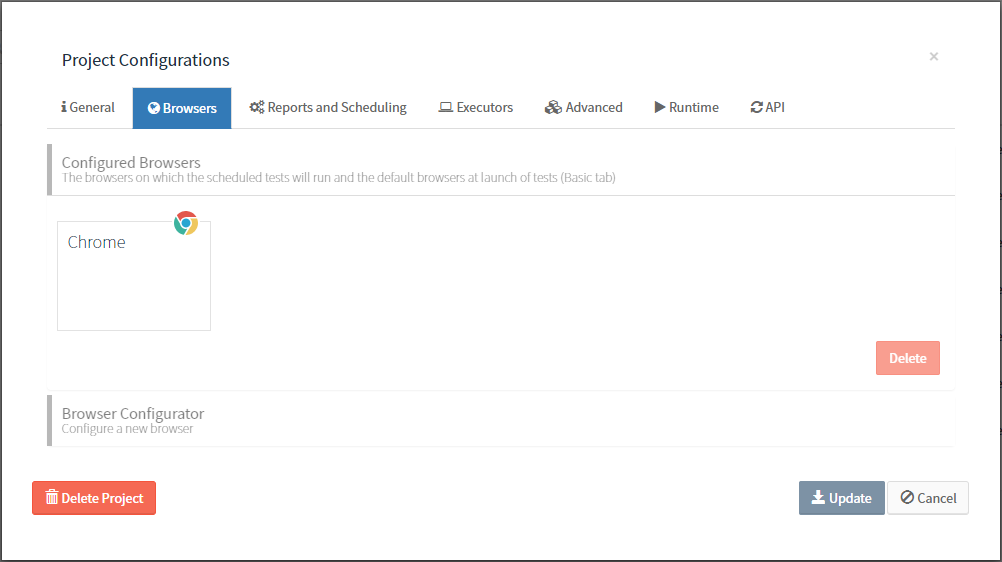

Go the configurations of a project and open the Browsers tab to see the currently configured browsers.

Click on Browser Configurator and add more browsers if needed.

To schedule test executions on the configured browsers, switch to the Reports and Scheduling tab.

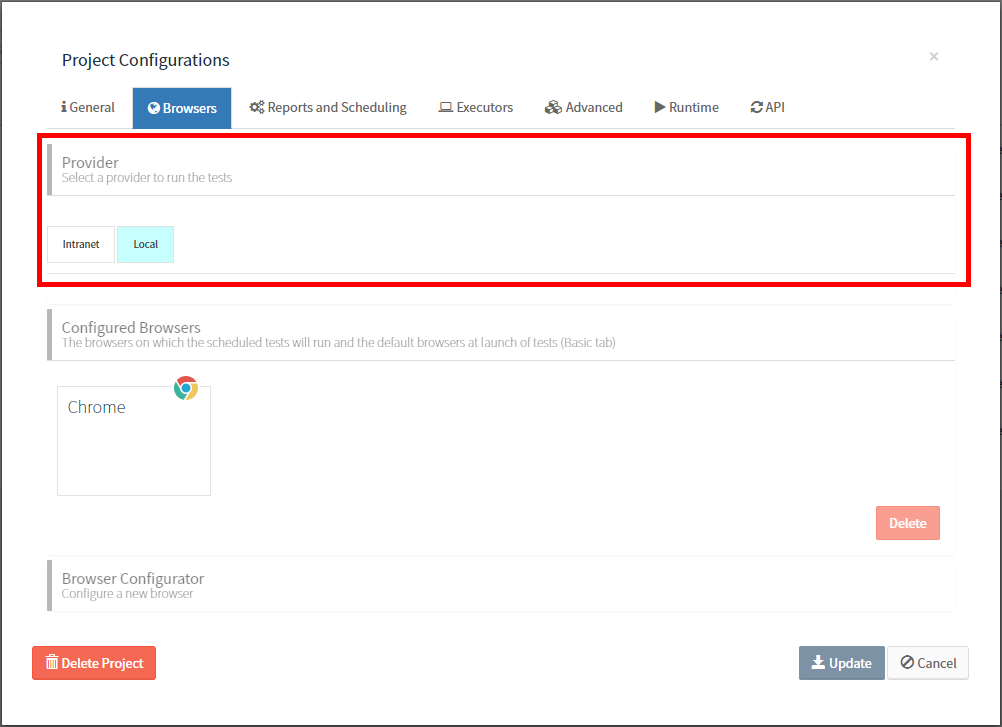

Multiple Providers

With multiple providers, the Browsers tab has an extra field to configure the default provider.

Note:

This configuration is not available at the Monitoring projects.

5.1.3. REST API

Minium Manager provides a REST API through which it is possible to launch test executions and get test results. In order to use it, an API key is required. API keys are specific of a project. To generate a key, go to the API tab on the configurations of a project and click on the Generate button.

Also on the API tab are some example scripts. Once the project has an API key, the scripts will be fulfilled with the project-specific data and ready to use. The first part of the script shows how to launch a test execution.

A test execution can be launched by issuing a POST request to api/projects/<PROJECT-ID>/test-executions containing the PROJECT-KEY header set to the project key and the content-type header set to application/json. The execution parameters are sent in JSON on the request body:

browsers: list containing the capabilities of the browsers. Only the browserName is mandatory.
additionalConfig (optional): configuration properties to be merged with the ones on the application.yml file of the project. Properties already defined on the application.yml file are overridden.
gitRepositoryBranch (optional): branch of the repository of the tests.
commit (optional): the corresponding commit of the system under test, to be then included on the report of the execution.
commitLink (optional): link to directly access the commit from Minium Manager.

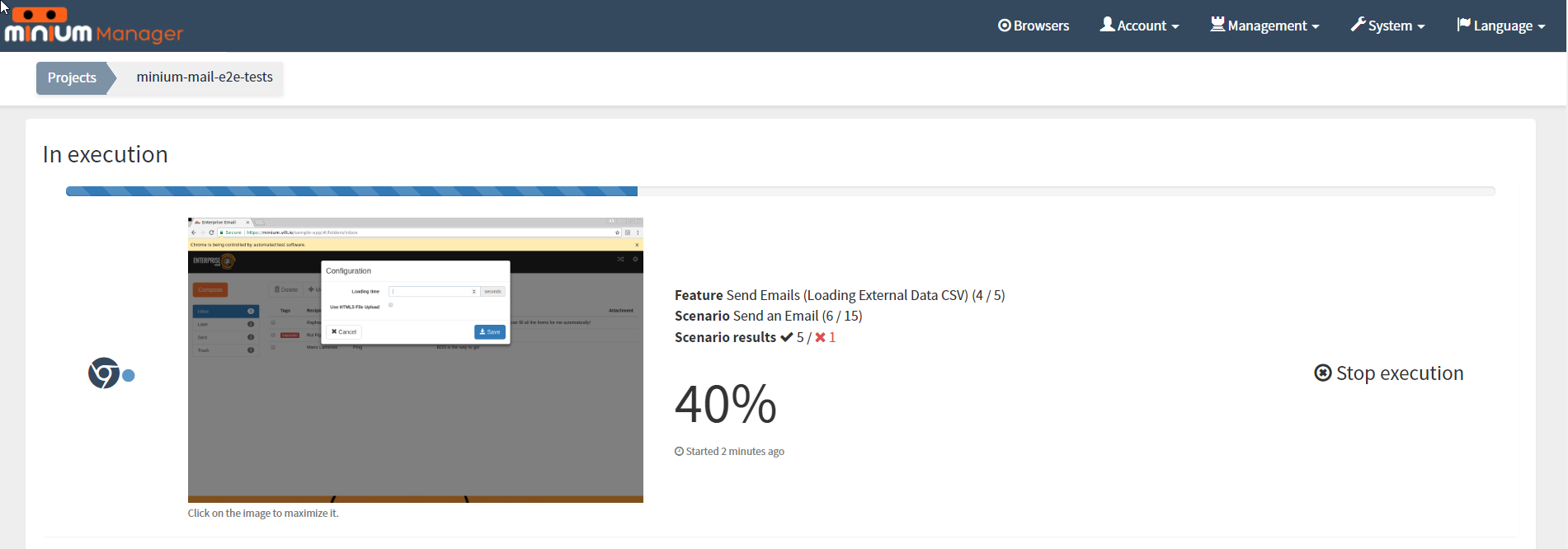

To follow the progress of the execution until it finishes, poll the URL returned on the Location header of the response to the POST request.

url = response.headers['location']
response = requests.get(url, headers=headers)
while response.status_code == 404:
    time.sleep(5)
    response = requests.get(url, headers=headers)
if not response.ok: sys.exit(response.text)

execution = response.json()
while execution['state'] != "FINISHED":
    time.sleep(15)
    execution = requests.get(url, headers=headers).json()

While the tests are running, the response will be a JSON object containing the state field set to RUNNING, the name of the current browser and the corresponding progress in percentage, number of passed/failed and last finished feature/scenario. Example:

{
  "state": "RUNNING",
  "browser": "chrome",
  "progressInPercentage": 18,
  "failingScenariosCount": 1,
  "passingScenariosCount": 5,
  "feature": "Login",
  "scenario": "Successful login"
}

Once the execution finishes, the response will have state FINISHED, the global results and the number of passed/failed scenarios for each browser. Example:

{
  "state": "FINISHED",
  "globalResults": {
    "totalScenarios": 20,
    "percentageOfPassingScenarios": 95,
    "passingScenarios": 19,
    "failingScenarios": 1
  },
  "browserResults": [
    {
      "browser": {
        "browserName": "chrome"
      },
      "passedScenarios": 10,
      "failedScenarios": 0
    },
    {
      "browser": {
        "browserName": "firefox"
      },
      "passedScenarios": 9,
      "failedScenarios": 1
    }
  ]
}

5.2. Follow the progress of a test execution

After launching a test execution, follow the progress in the project page. See the browser where the test is executing, the percentage, number of executed tests, the elapsed time and the test that is currently executing. Also, visualize the test be executed in the browser.

6. Monitor test results

In a project page, all the launched executions are showed:

For each execution it can be seen:

result of the execution
name
duration of execution
percentage of passed and failing scenarios
statistics of the execution (shown when the mouse is over the execution)
browser where the execution ran
launch time
number of scenarios of the execution

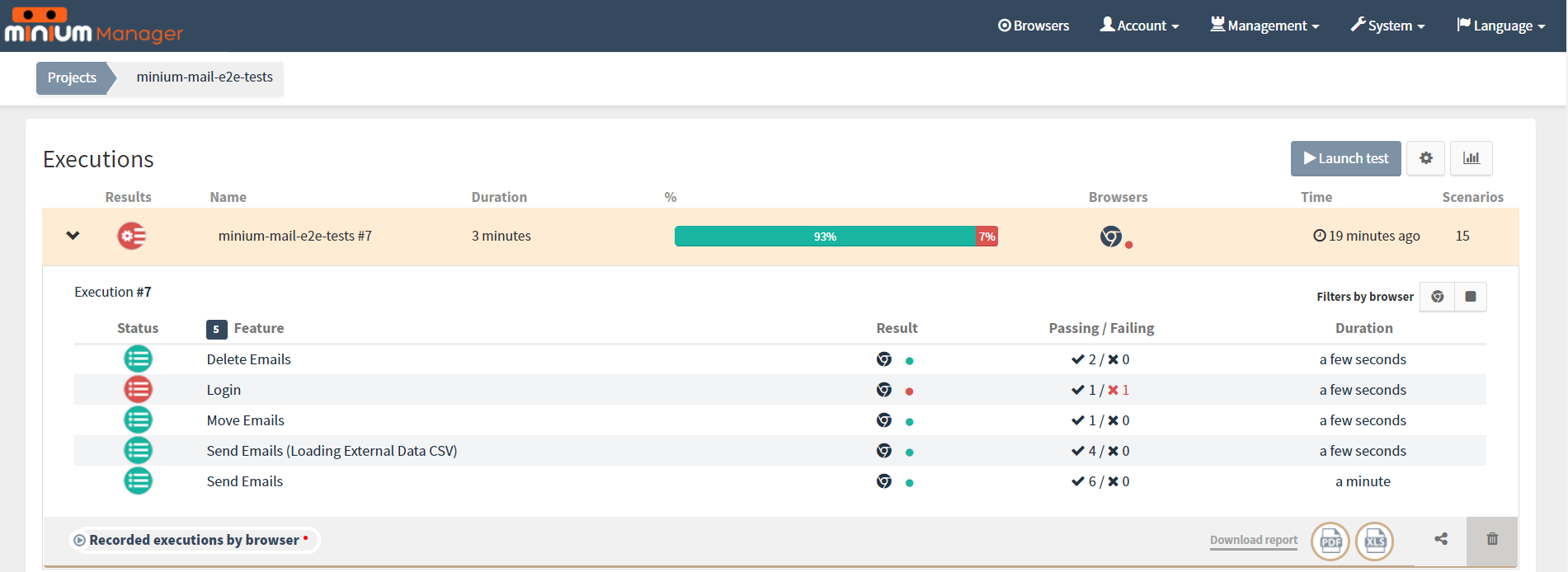

When expands a test execution a list of executed features and their results can be seen:

For the execution expanded it can be seen:

features tested
the results detailed for each feature (with filters)
videos of the execution
download the report of the executions (MS excel and PDF)
remove execution

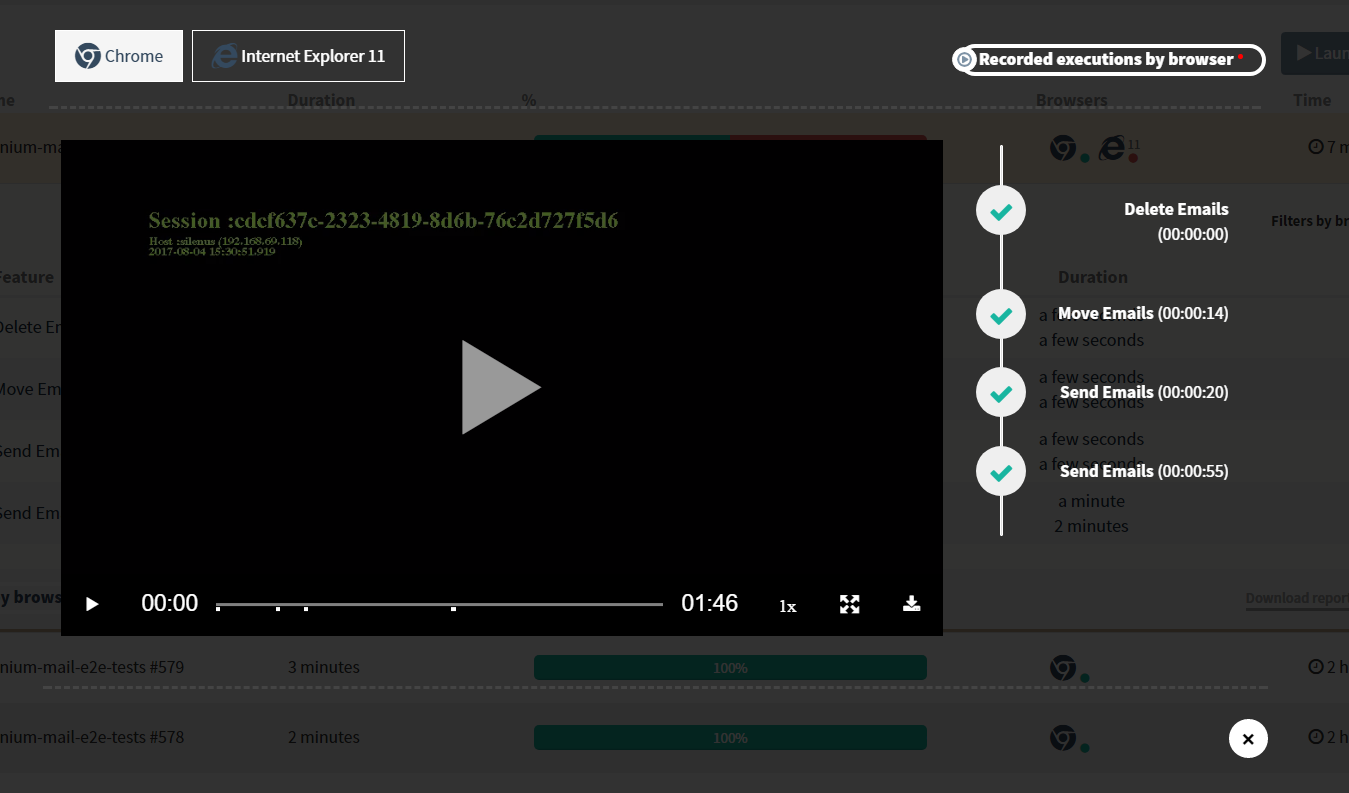

Click at "Recorded executions by browser" to see the videos of the recorded executions:

For the videos (at execution) it can be seen:

videos for the browsers tested
features to navigate through the video
cue points when the feature starts on the video

Monitoring project

The result of an execution of a Monitoring project is presented at the execution page:

At execution page, we can see the time of each URL took to load. Also we can see the URL status and the time that took to execute the scenario.

Display options

The information at the execution page can be filtered to show/hide some details.

To open the Display options click at Settings:

The display options allow us to:

Show/Hide the URL’s
Show/Hide the steps
Show only the sailed scenarios
Consult the URL loading time threshold (This property is configured at the project configurations at the advanced tab and warns the user (at the execution page) when the loading time of an URL is higher than the loading time threshold)
Consult the scheduler (The scheduled is configured at the project configurations at the reports and scheduling tab)

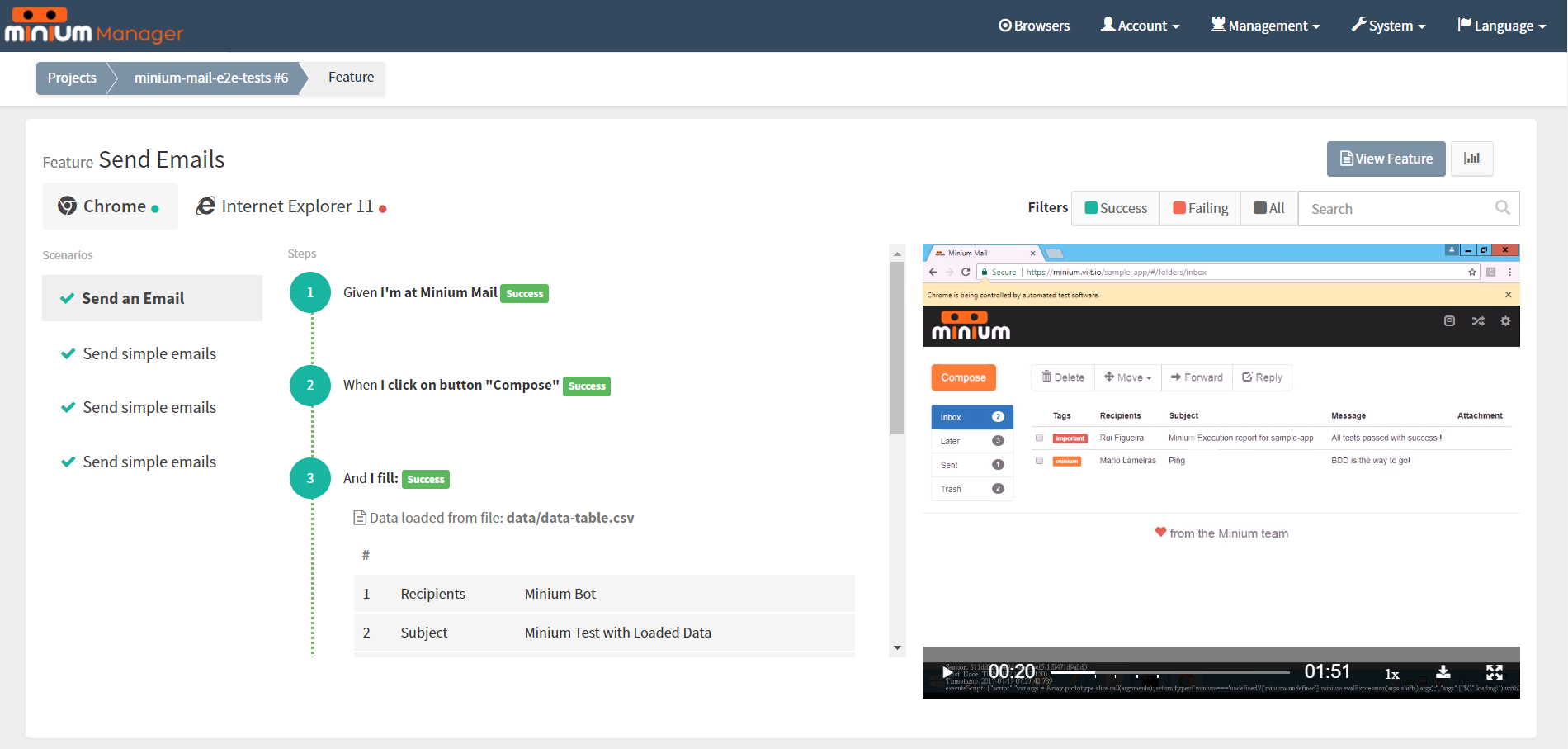

On the feature (for web application testing) view check the scenarios of this particular feature:

When expands a scenario see all the steps and results. Is easily switch to the results of another browser. More functionalities:

Screenshots - Minium Manager provides screenshots of the application at the moment of the failure. So it possible see the state of the application in the moment of failure.
Error messages
Links to the feature or step file for each step.
Evolution chart for the projects
Video with the cue points when the scenarios start

Monitoring project

Feature page of a Monitoring project scenario:

At the feature page, we can see more details about the page load performance:

The url loaded
The loading time with the times of the Backend Performance, Frontend Performance and DOM Content Loading
The number of requests
The Javascript Errors (if any)
The URL status code

6.1. Feature overview

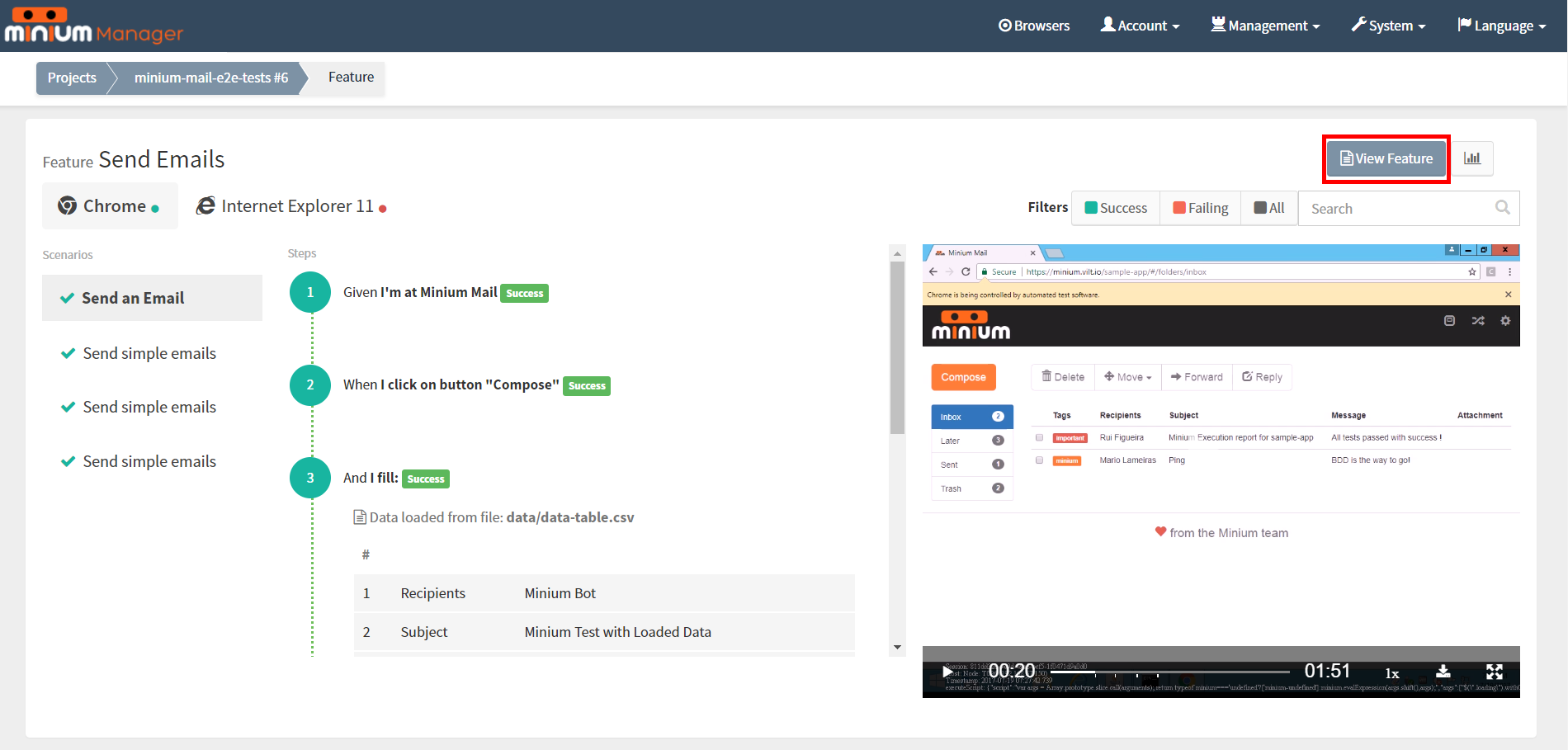

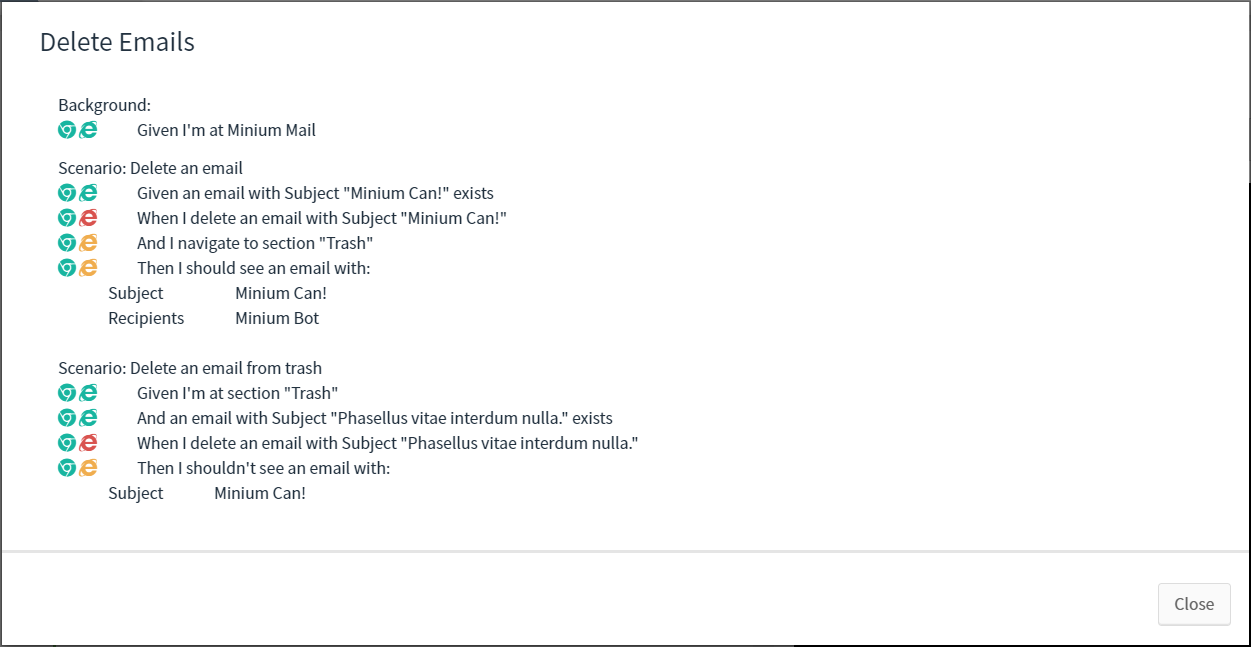

Overview of all the features, by clicking on the button View Feature.

View the result of each step in each browser that the feature ran.

6.2. Reports

Receive the reports of each test execution, in PDF and/or Excel formats, via email. Alternatively, download them directly in Minium Manager. To choose the formats to receive via email, go to the configurations of the project and expand the advanced configurations:

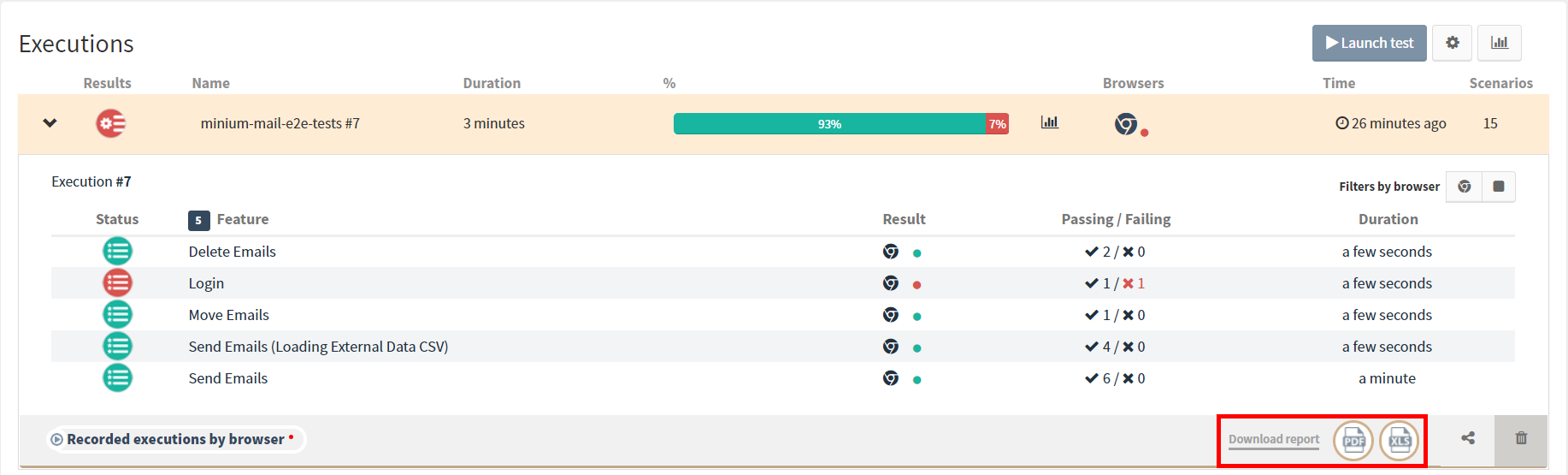

To download a report, expand the results of a test execution and click in Download report:

6.3. Daily Reports

The daily report is a custom report with your favorite projects that will be sent to your email with the status of the last completed execution in the last 24 hours.

Before being able to configure a daily report, first you need to set the email configured at Account > Settings.

Note:

If Minium Manager is using LDAP, please contact your administrator to set your email at LDAP.

To create a daily report configuration, open the Account menu and click on Daily Reports.

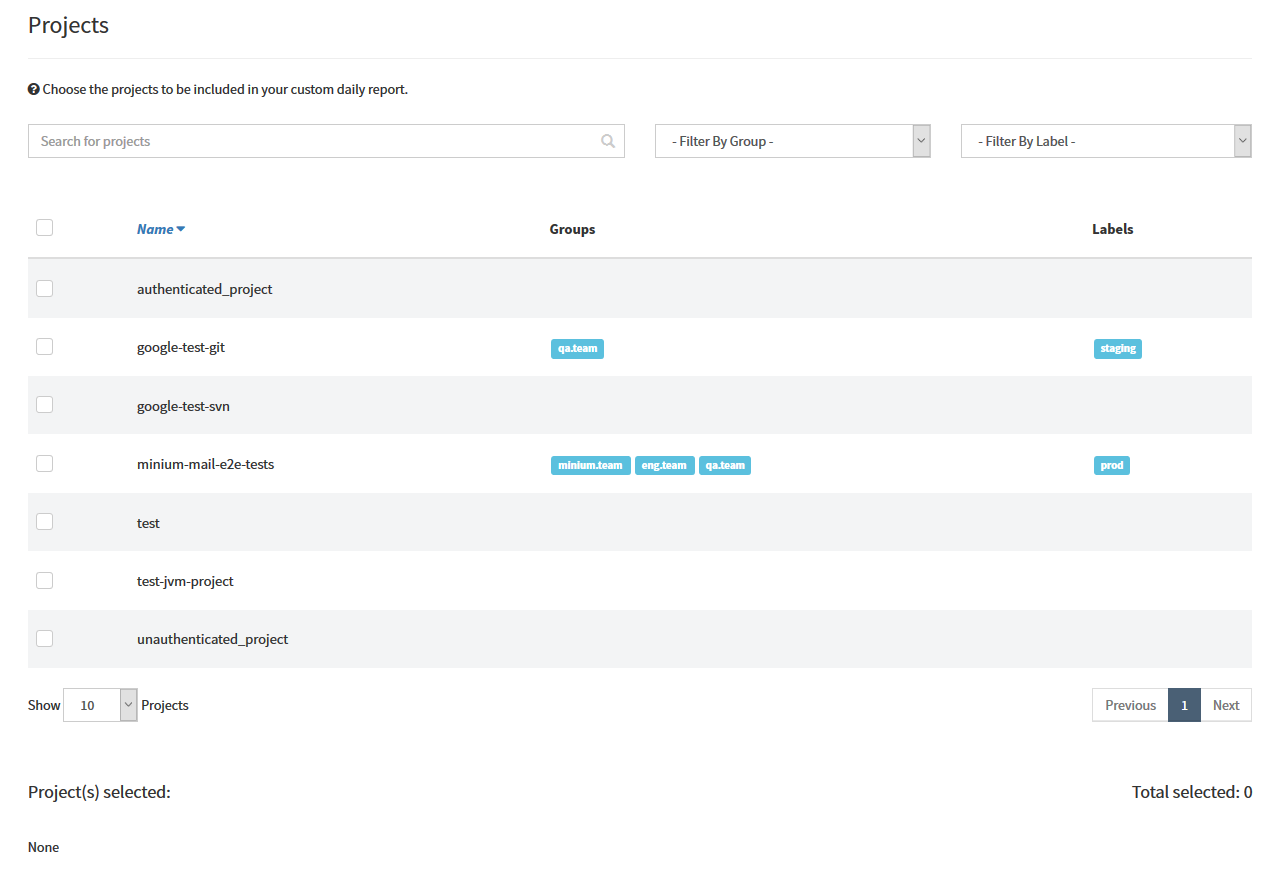

Choose the projects to be included in your custom daily report:

After, schedule the time that the email will be sent, with a summary of the past 24h.

Finally, click on the button "Create/Update Daily Report Configuration" to create/update the daily reports:

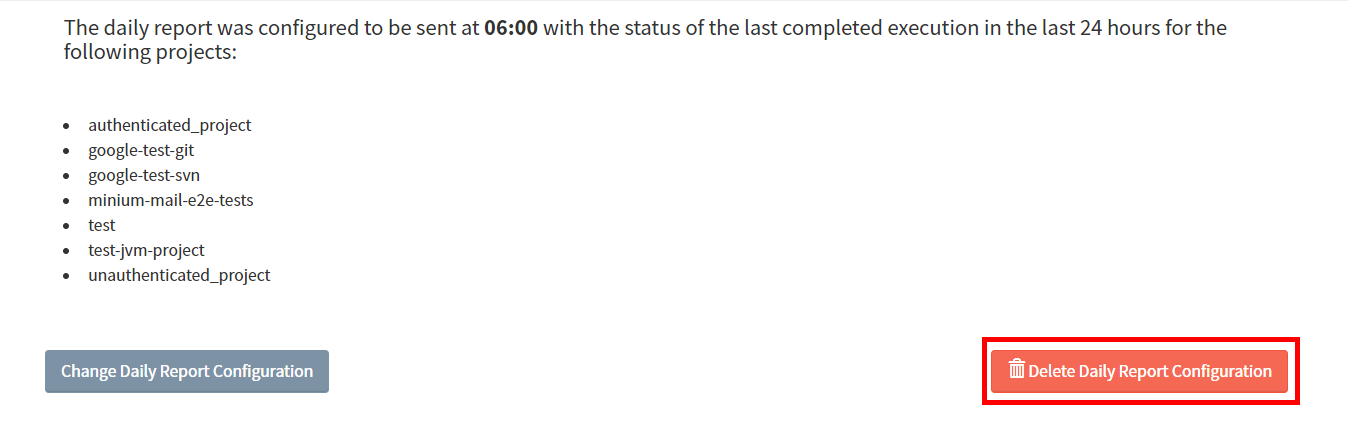

To delete the configuration, click on the button "Delete Daily Report Configuration".

7. Roles

Roles allows grant different privileges to the users and the groups. The privileges associated with each role are described in the table below:

User

Manager

Administrator

View projects

Launch test executions

Configure projects

Create projects

Manage project labels

Manage users

Manage roles

7.1. Assign roles

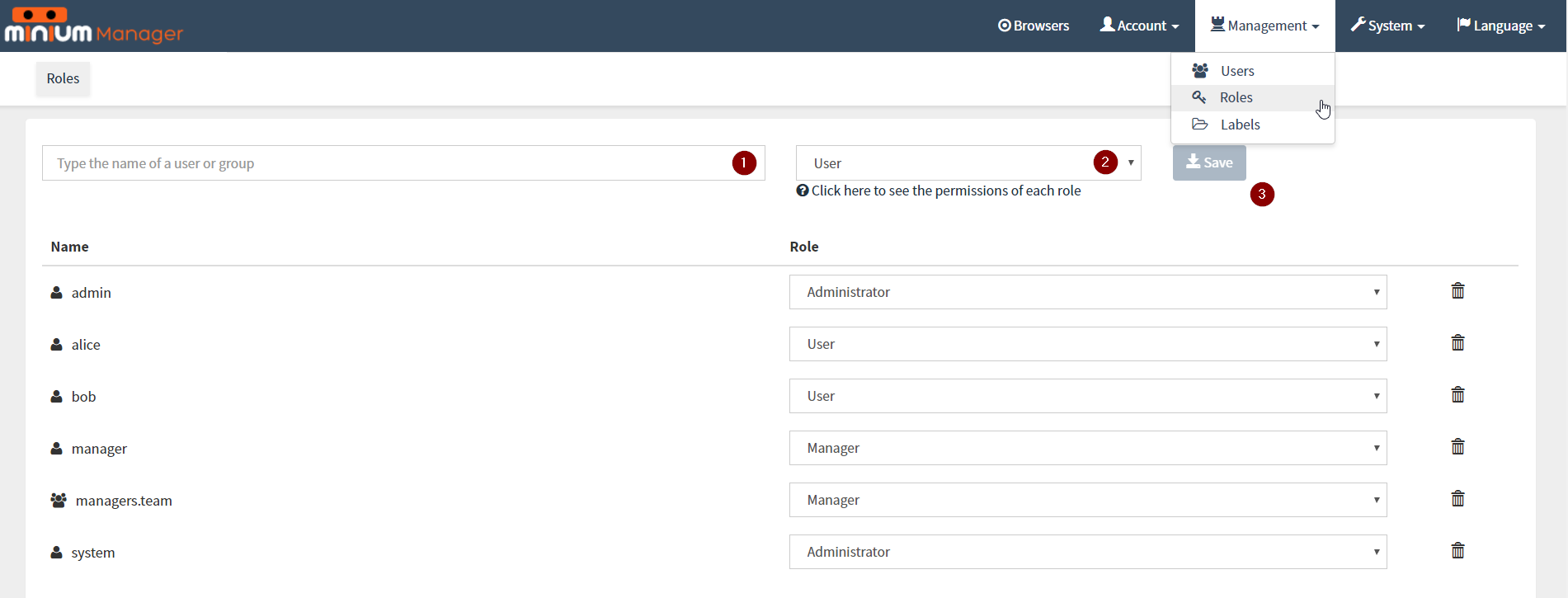

To change the role of a user or group, navigate to Management > Roles at the navigation bar and:

Introduce the name of the user or group in the search bar.
Select a role.
Click on Save button.

7.2. License information

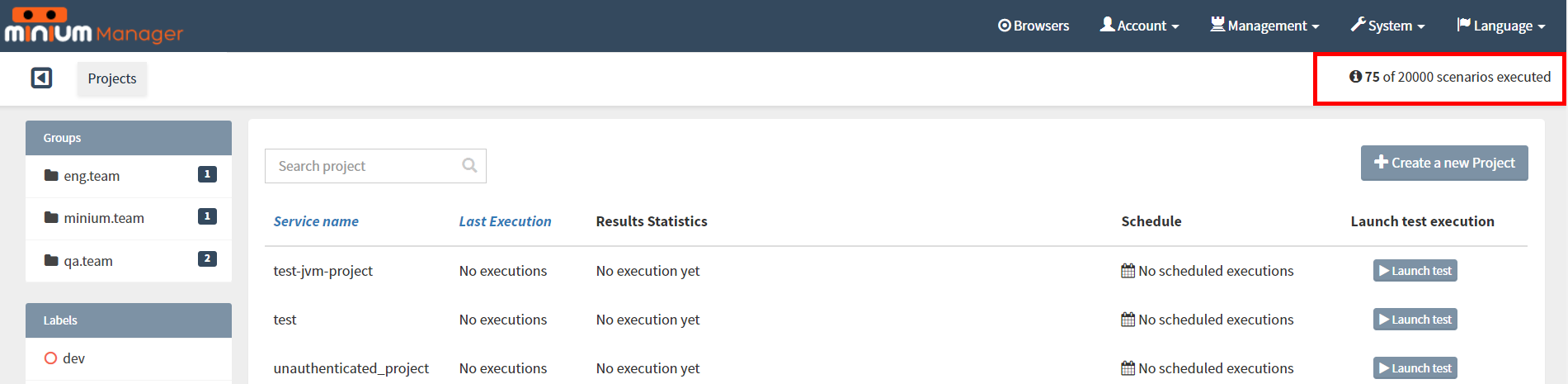

At the top right of the project list page exists the license information label, that gives the number of executed scenarios in this month and the total of scenarios per month that to the current license

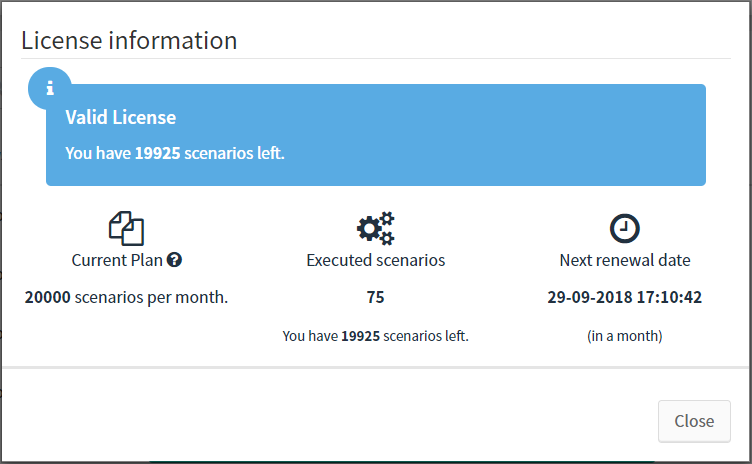

By clicking on the license information label, it will open a modal with more detailed information about one license.

Minium Recorder User Guide

Minium Recorder has been developed to ease and accelerate the creation of Minium tests. With the Minium Recorder, is no longer needed to write all the code for the step definitions by hand. Simply tell to the Minium Recorder to start recording the interactions with the browser, perform the actions that correspond to the defined step and an automation script is immediately available in Minium Developer.

But what really makes Minium Recorder different in relation to other automation script recorders is that, for each element that interacts, Minium Recorder will not generate just one CSS selector. Instead, is possible choose among a list of alternative expressions for each element that take advantage of the great Minium filtering methods that are used like for example withLabel, below, rightOf, etc, to build more readable and resilient expressions.

8. Configure Minium Developer

Minium Recorder is already configured at Minium Developer Prime, but you can configure an existing Minium Recorder.

To configure Minium Developer with the Minium Recorder extension, first you need to download the Minium Recorder extension.

Navigate to the folder where Minium Developer is installed, create a folder named "extensions", copy the Minium Recorder extension file to the new folder and rename the file to "minium-recorder.crx".

After, edit the config/application-{windows,linux,macos}.yml file in order to add the following configuration (at the chrome webdriver):

minium:
  developer:
    webdrivers:
      - name: chrome
        ...
        chromeOptions:
          extensions:
            - ${app.home:.}/extensions/minium-recorder.crx
          preferences:
            devtools:
              preferences:
                panel-tabOrder: "{\"chrome-extension://ggefeclafoeoejognlebilidgmgdglogMiniumRecorder\":10,\"elements\":20,\"console\":30,\"sources\":40,\"network\":50,\"timeline\":60,\"heap_profiler\":70,\"resources\":80,\"security\":90,\"audits\":100}"

9. Launch Minium Recorder

Launch Minium Recorder through Minium Developer.

Open Minium Developer and add the following command to the editor:

browser.get("http://www.google.com/ncr")

This will load the google search engine website, when the instance of Chrome is launched.

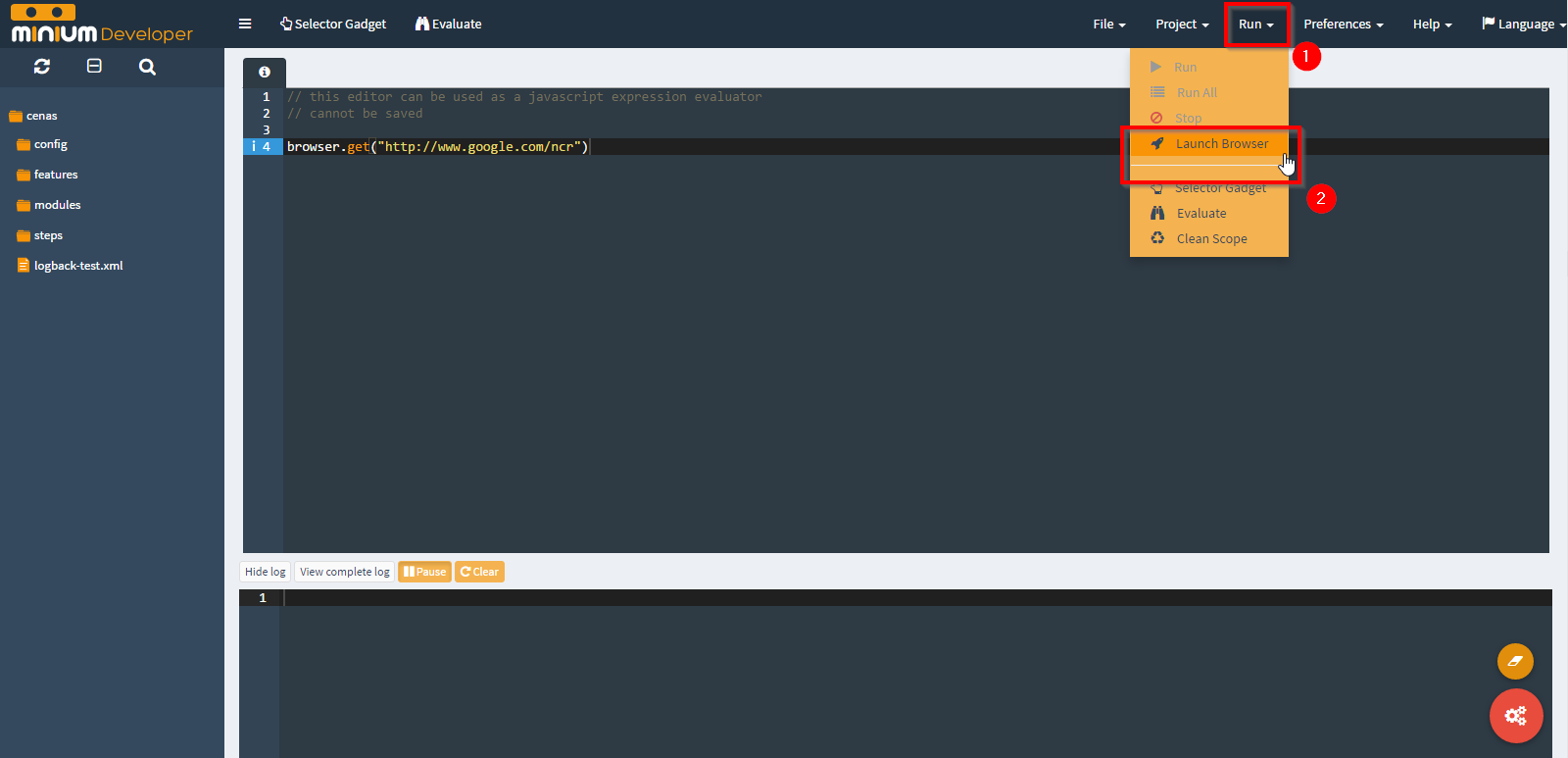

To launch Minium Recorder, use the (Ctrl + Enter) shortcut or select Run > Launch Browser (1) and (2) at the top-right menu:

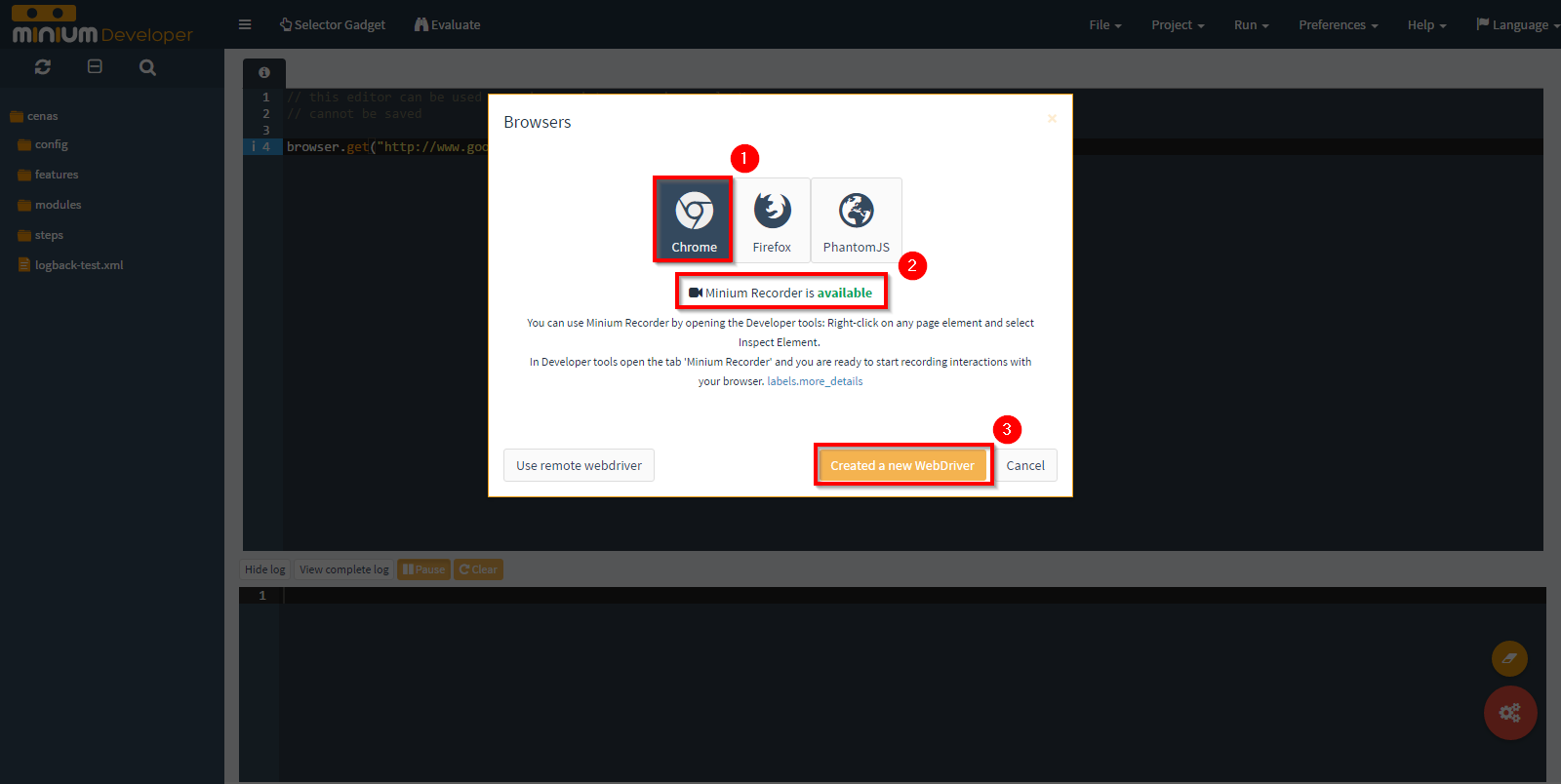

Select the Chrome browser (1), check if Minium Recorder is available (2) and click Created a new WebDriver (3):

A new instance of Chrome will be launched with the Minium Recorder extension installed. In the instance of Chrome, open the Developer tools by using the (F12) shortcut (use another shortcut) or select More Tools > Developer tools.

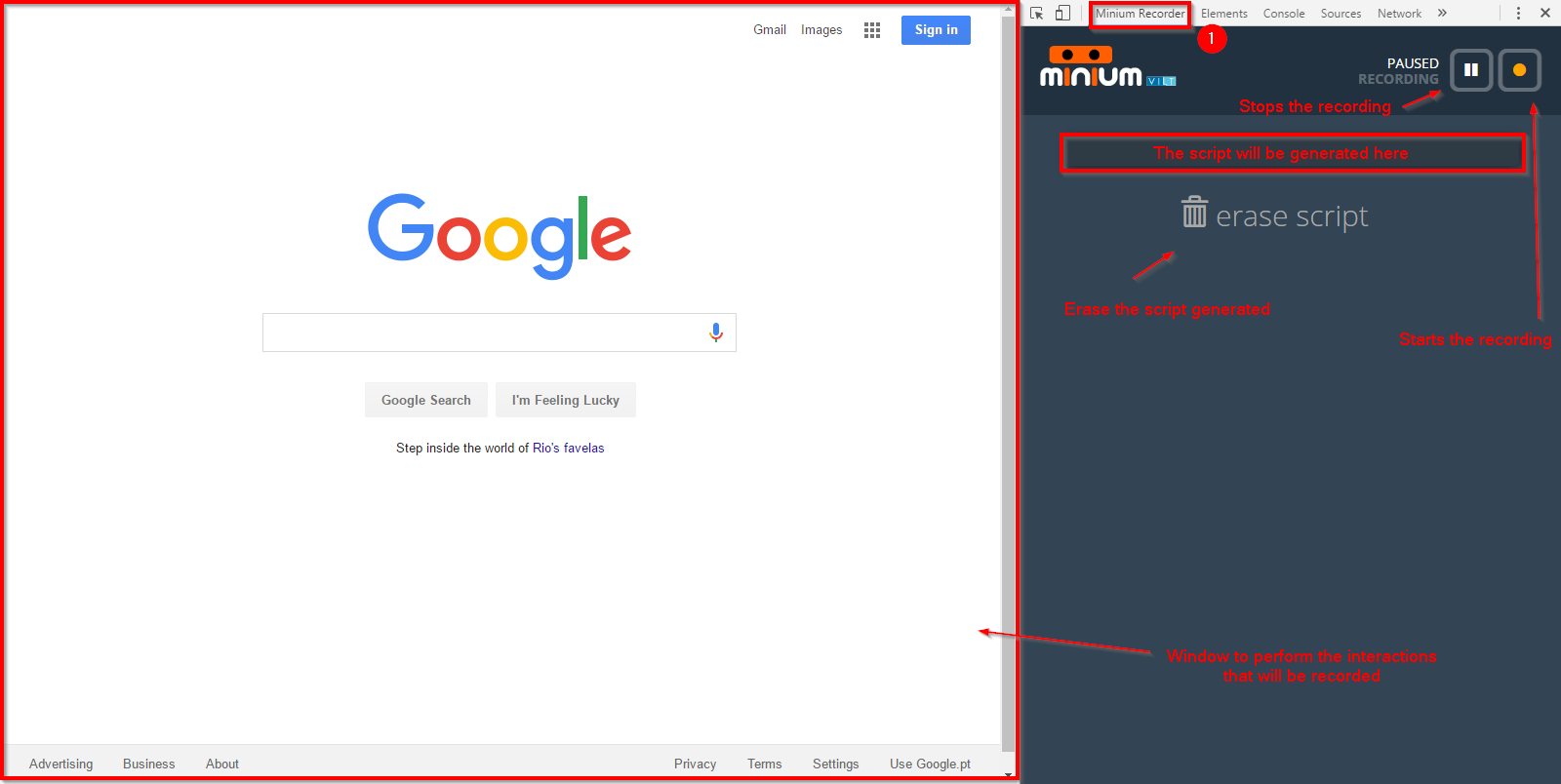

After the Developer tools of the instance Chrome is opened, select the Minium Recorder tab (1):

10. Start recording

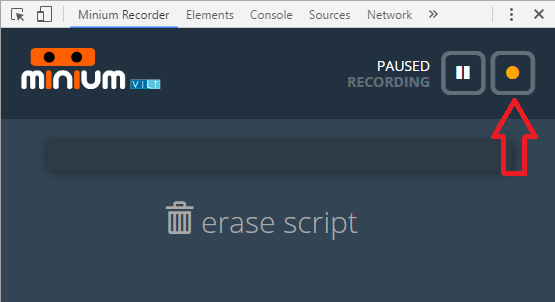

To start recording, click on the following button:

From now on, every interaction performed with the browser will be recorded.

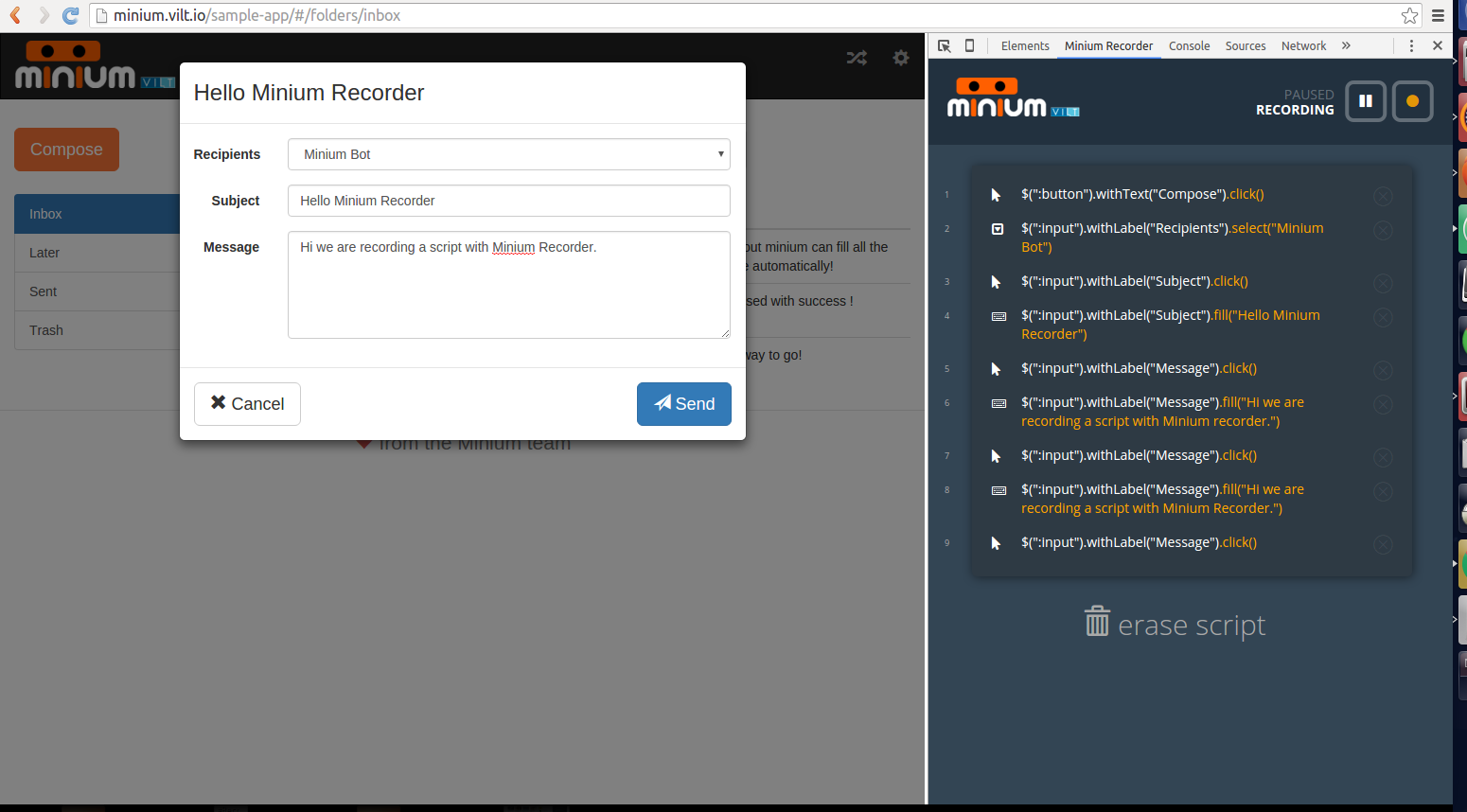

11. Record interactions

For every action performed on the browser, like clicking on an element or filling a text input field, Minium Recorder will automatically generate the corresponding code. If typed an URL in the address bar, Minium Recorder will also generate the code to load that URL.

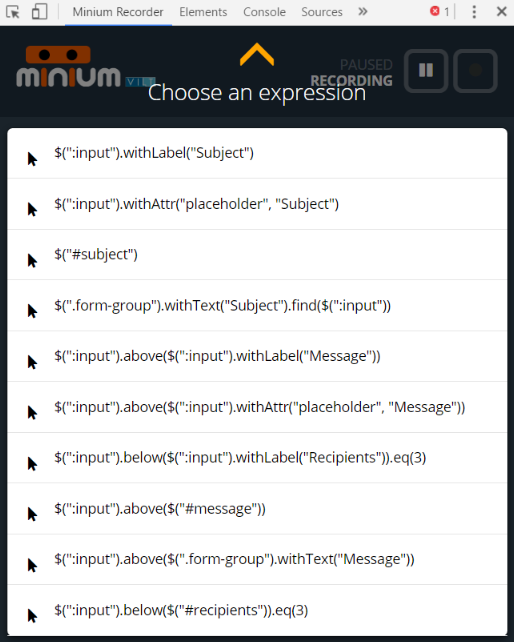

To try other expressions, click on the expression and a list of alternative expressions will be displayed:

To select an expression, just click on it.

12. Stop recording

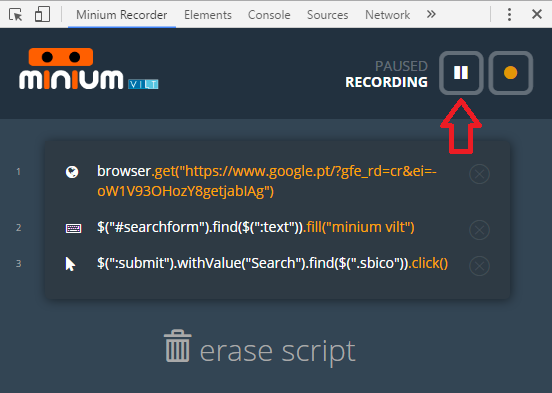

Click on the pause button to stop a recording.

13. Import the recorded script in Minium Developer

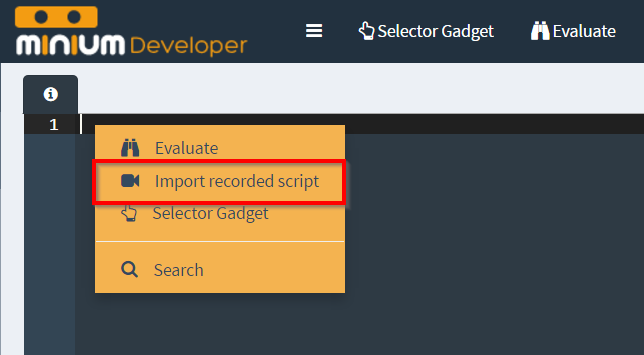

To import a script in Minium Developer, right-click on the editor area, where is intended to put the script, and choose the option Import recorded script:

VILT Minium Manager: User Guide

1. Introduction

2. Projects

2.1. Monitoring

2.1.1. Check if the website is ok

2.1.2. Do a search on the website with refresh and check how long it took to load.

2.1.3. Click on a link and get the performance of the page

2.2. Setup a project

2.3. Project permissions

2.4. Organise projects by Labels or Groups

2.4.1. Manage Labels

2.4.2. Assign labels to the projects

2.4.3. Manage groups

Manage groups using LDAP authentication

Manage groups without LDAP authentication

2.4.4. Organise Projects

Clean project filters

2.5. Configuration profiles

2.6. Secret configuration properties

2.7. Delete a project

2.7.1. Click on a link and get the performance of the page

2.7.2. Monitoring Report

2.7.3. Display options

3. Check the available browsers

4. Project Statistics

5. Test executions

5.1. Launch test executions

5.1.1. Launch a test execution manually

Multiple Providers

5.1.2. Schedule test executions

Multiple Providers

5.1.3. REST API

5.2. Follow the progress of a test execution

6. Monitor test results

6.1. Feature overview

6.2. Reports

6.3. Daily Reports

7. Roles

7.1. Assign roles

7.2. License information

Minium Recorder User Guide

8. Configure Minium Developer

9. Launch Minium Recorder

10. Start recording

11. Record interactions

12. Stop recording

13. Import the recorded script in Minium Developer
